NOTE: After completing the installation, make sure that the grommet tightly wraps around the
Ethernet cable by pulling it downward, in order to achieve effective waterproofing.
3.2 Connect Power
To power up the camera:
Connect the AC 24V power adaptor to the power connector of the camera and the power outlet.

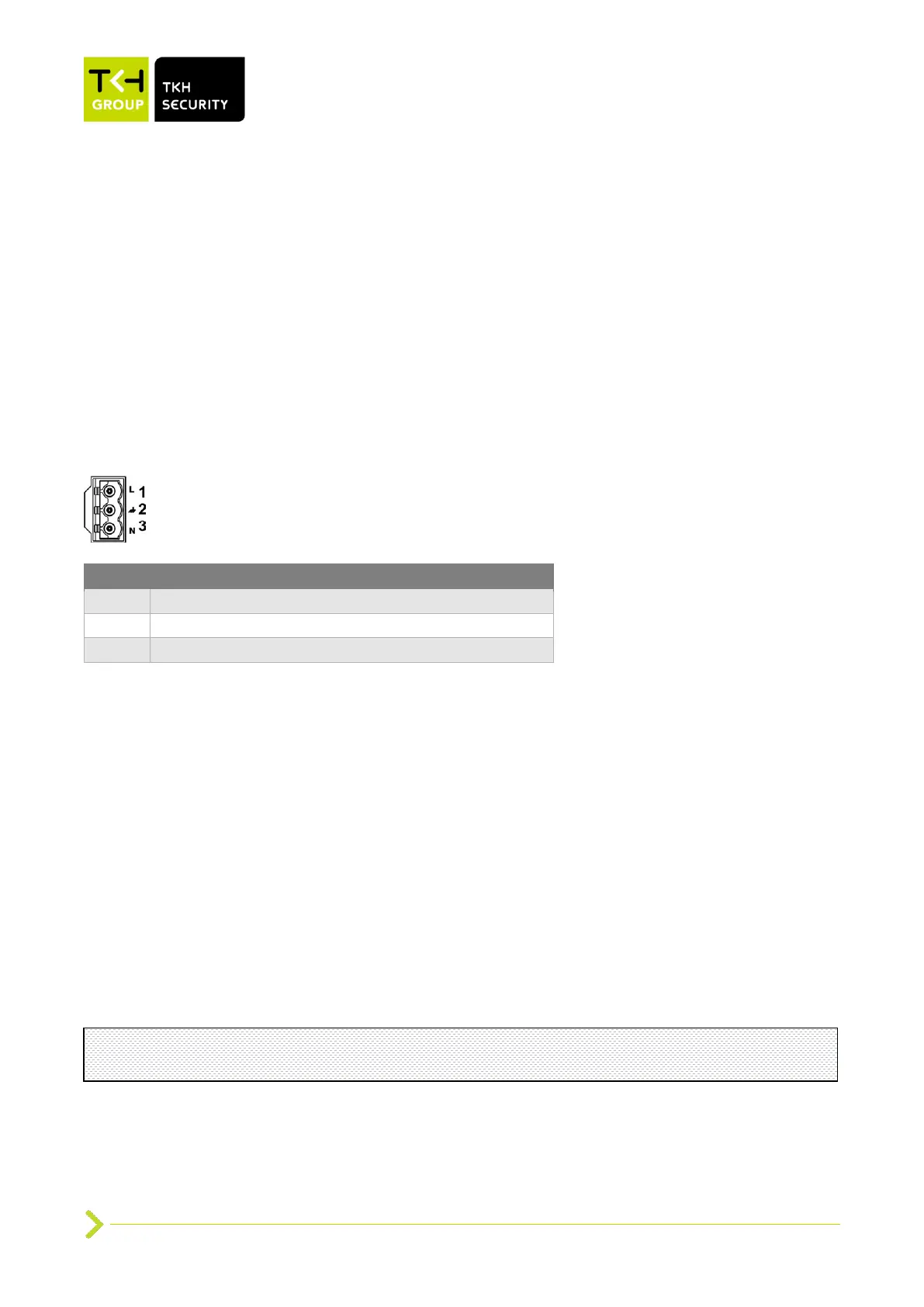

See the diagram and pin definitions below for AC 24V power connection.
24 VAC power connector
Alternatively, connect an Ethernet cable to the RJ-45 connector of the camera, and use a PoE
802.3bt type 3 class 6 compatible power injector/switch to power the camera up. Consult TKH
Security for more advise on the choise of PoE 802.3bt type 3 powering devices.
3.3 Connect Ethernet cable
For Ethernet cable connection, follow these steps:
1. Connect one end of the Ethernet cable to the RJ-45 connector of the camera.
2. Plug the other end of the cable to the network switch or PC.
3. Check the status of the power and the network activity indicator LEDs. If a LED is unlit,
check the corresponding connection.
• The green link LED is lit when there is a good network connection.
• The orange network LED flashes to indicate that there is network activity.
