2. INTRODUCTION
DESCRIPTION
ProPlex IQ One bidirectional Ethernet-DMX are available in both RackMount and Mini tour-ready enclosures.
RackMount models include the IQ One 4, IQ One 8, and IQ One 8 Optical and convert between Ethernet and
4 or 8 universes of DMX as well as bidirectional Art-Net /sACN to DMX via Neutrik OpticalCon. The IQ One
Mini 4-way converts between Ethernet and 4 universes of DMX in a compact, versatile Mini enclosure. Just a
few of the features include:
• Bidirectional merging and Ethernet protocol conversion of DMX data (sACN/ArtNet)
• Intuitive, simple web interface or front panel control of all basic functions
• All Neutrik
™
connectors: Locking PowerCon, EtherCon, XLR
• Fibre optic version with OpticalCon connector available!
• Four or eight DMX universes
• ProPlex “Blue Box” rugged, tour-ready enclosures
• RackMount and Mini format with truss-mount yoke
• Shock-mounted circuitry

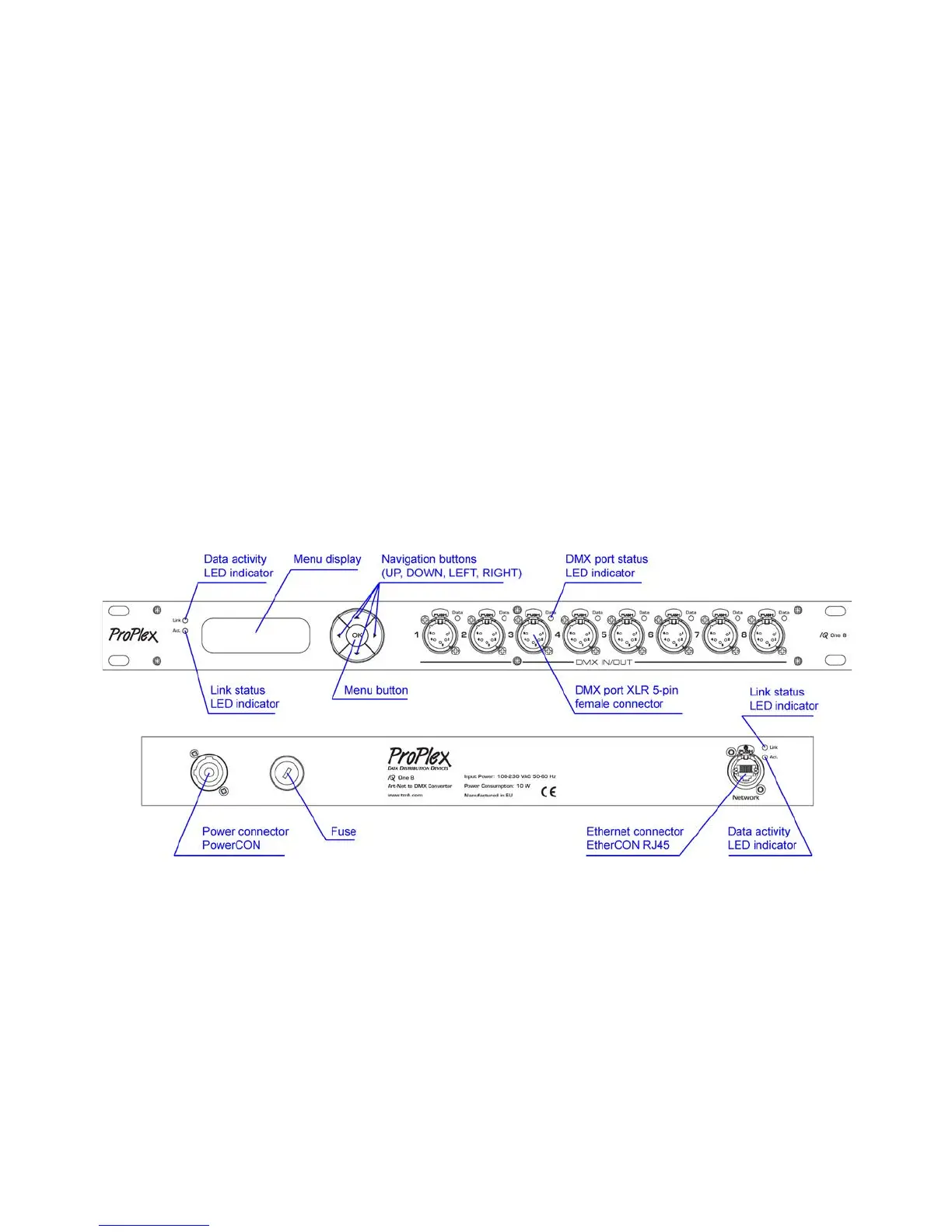

PROPLEX IQ ONE RACKMOUNT OVERVIEW
