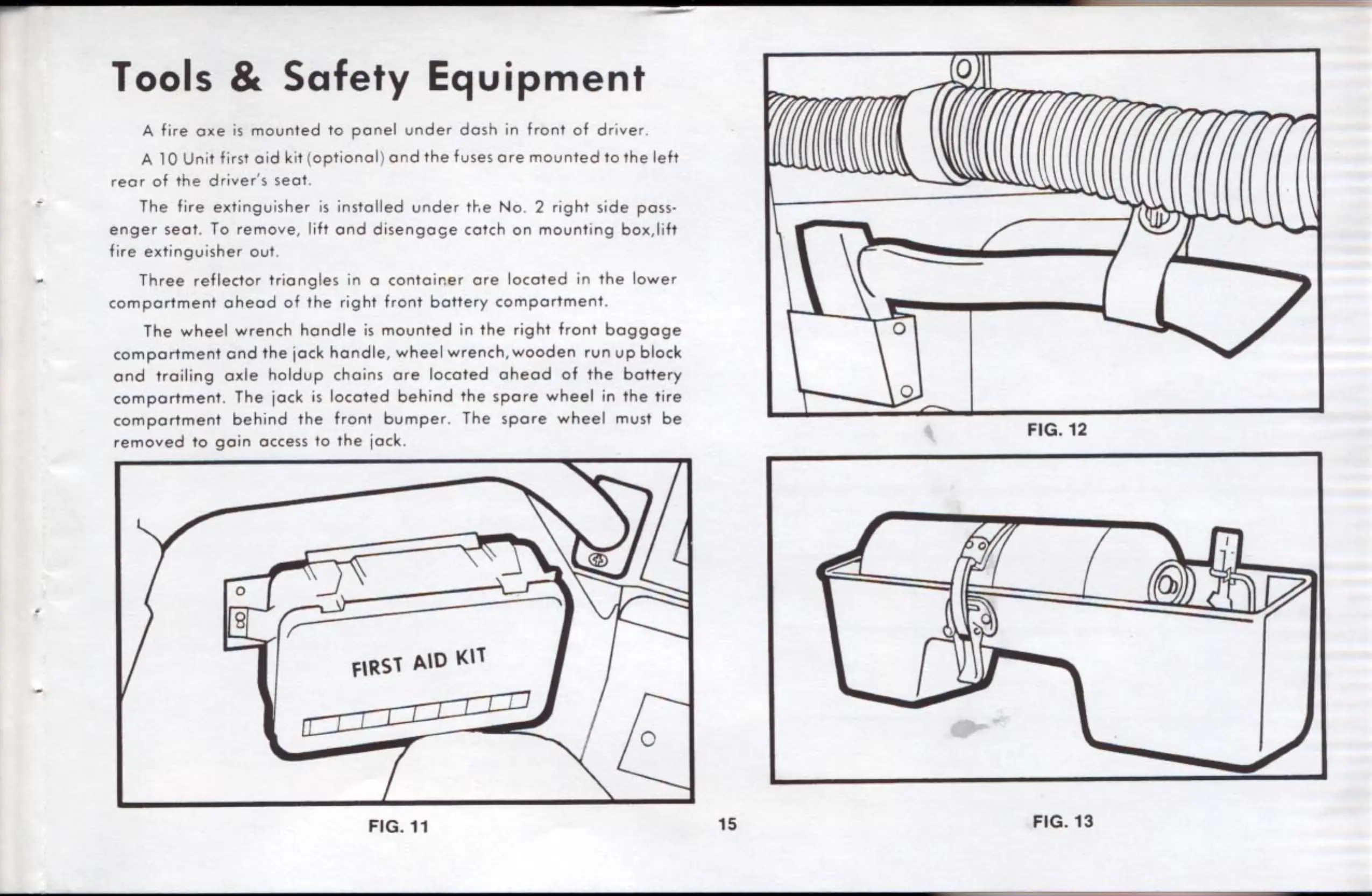

Tools & Safety Equipment
A fi re oxe is moun t ed to pa nel un der dosh in front of dri ver .
A 1 O
Un it first oid kit ( op t ional ) and the fuses a re mounted to t he left
re ar of the driver's seal.
The fire extinguisher is installed under the No . 2 right si de poss •
enger seat . To remove , lift ond disengage catch on mount ing box,lift
fi
re ext i nguisher out .
Th
ree reflector triangles in a conta i ne r are l ocated in the lowe r
compo rlment ahead of the right front battery compor t ment .
The wh eel wrench handle is mounted in the righ t front baggage
comportment and the jock hand l e, wheel wrench , wooden run up block
and tra il ing ax le ho l dup chai ns ore loca t ed ahead of the battery
comportment . The jock is l ocated beh i nd the spore wheel in t he tire
comportment behind the front bumpe r. The spore whee l must be
removed to gain access to the jock.
0
g
r
FI RST AID KIT
t
1
1
1
11
l
l
[I
FIG. 11
0
0
0
FIG. 12
15
FIG. 13
