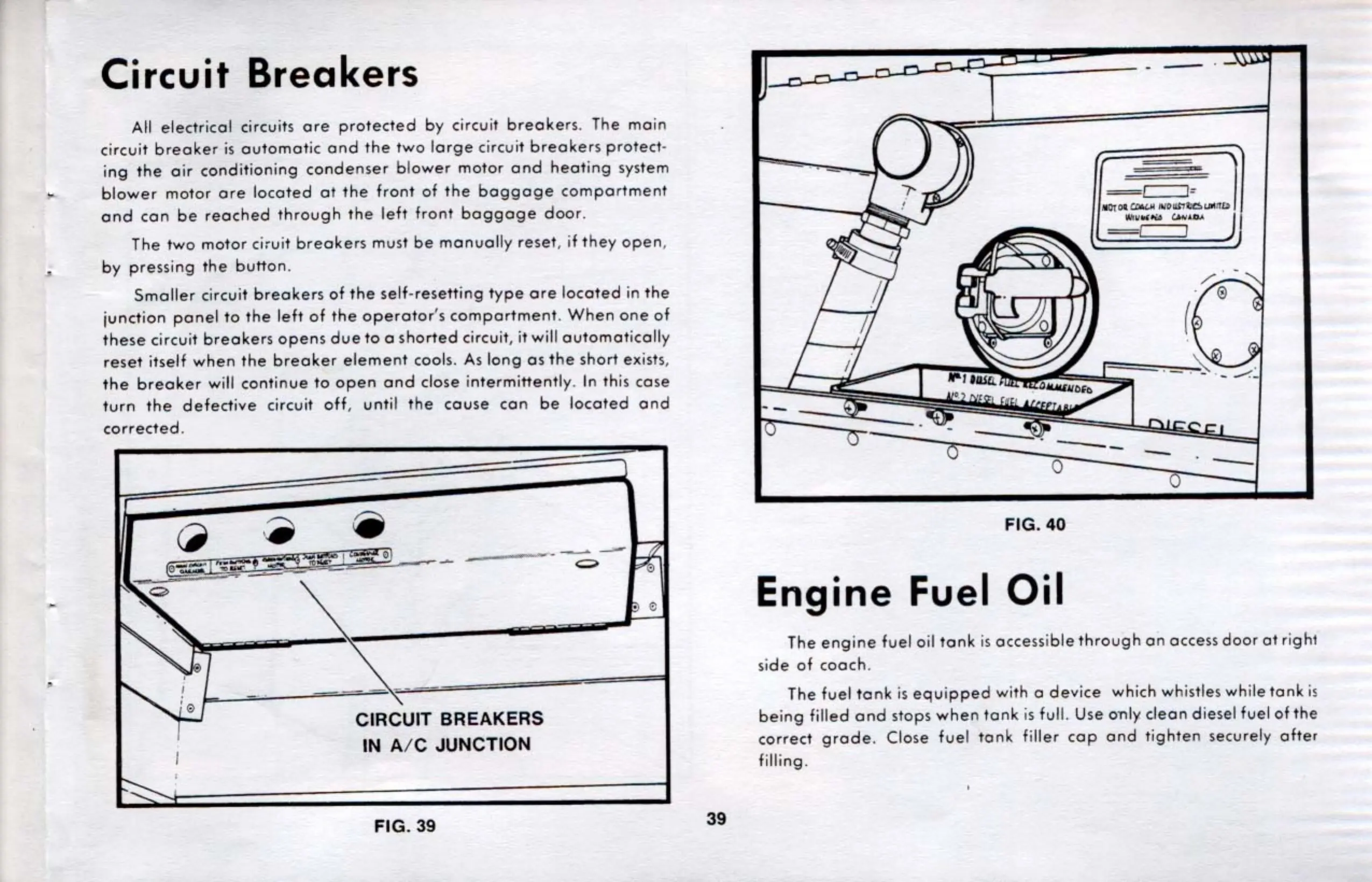

Circuit Breakers
All electrical circuits ore protected by circuit breakers . The main
circuit b rea ker is automatic and t he two l arge circu it breakers protect -
ing
the air conditioning condenser blower motor a nd heating sys tem
blower motor ore locat ed o t t he front of the baggage comportmen t
and con be reached throug h the le ft front baggage door .
Th e two mot or ciruit bre ake rs must be manua l ly reset , if t hey open ,
by pressing the button .
Smaller circuit breakers of the self-resetti ng type ore loca ted in the
junction panel to the left of the opera t or 's compartment . Wh en one of
these circuit breakers opens due too shorted circuit, it will automatically
reset itself when the breaker elemen t coo l s. As l ong as the short exists,
the breaker will continue to open and close i ntermittently . In this case
t urn the defective circu it off , unt il the cause can be locate d and
corrected .
___.
------
=
CIRCUIT BREAKERS
IN A/ C JUNCTION
FIG . 39
39
/,
·-
0
FIG. 40
Engine Fuel Oil
. -
M IJt Ol ~ NO IU'lto. UM !Tt>
WtlJ WJri, c.NdM
-f
)
-
-
The engine fue l oil tan k is accessi ble throu gh on access door at righl
side of coach .
The
fue l t onk is equipped with a device which whistles while tonk is
be ing filled and stops when t ank is fu ll. U se oTily clean diesel fuel of the
correct
grade. Close fue l tonk filler cop and tighten securely ofter
filling.
