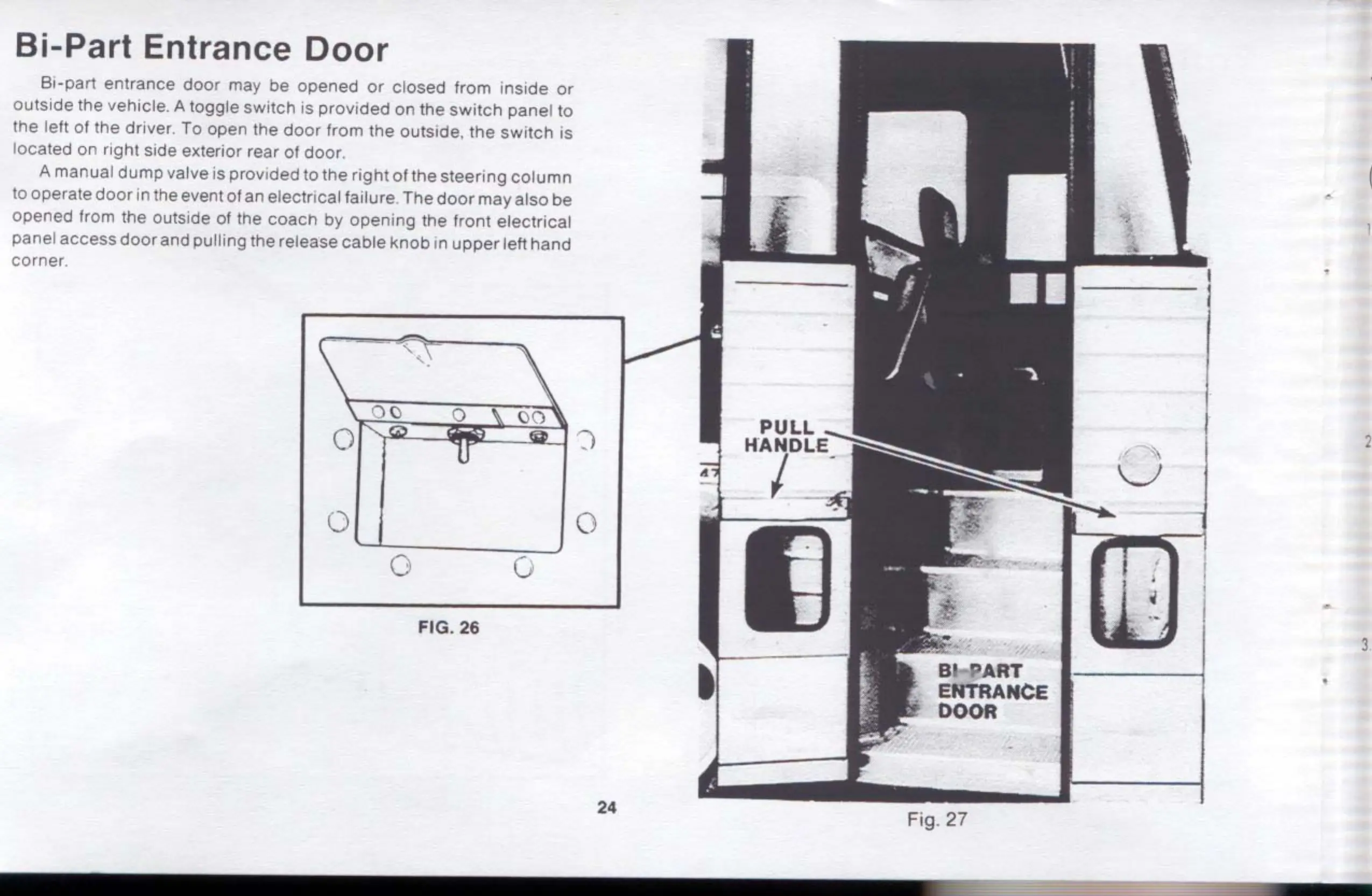

Bi-Part Entrance

Door

Bl-part

entrance

door

may

be

opened

or

closed from inside

or

outside

the vehicle. A toggle switch is provided on the

switch

panel

to

the l

eft

of

the

driver

. To open the

door

from the outside,

the

switch

is

located on right side exterior rear

of

door.

A manual dump valve

is

provided

to

the

right

of

the steering

column

to operate

door

in the event

of

an electrical fail

ure

. The

door

may also

be

opened from the outside

of

the coach by opening the front electrical

panel access

door

and pulling the relea·se

cable

knob

in

upper

left hand

corner

.

0

0

0

FIG

. 26

0

24

PULL

H"ANDLE

I_

Bf PART

ENTRANCE

DOOR

Fig. 27

l

1

I

2

3

♦
