Toa A-3000D-AS Series User Manual

10
Dynamic Microphone
CD player
Cassete tape
player
Dynamic Microphone (PHANTOM switch “OFF”) or
Condenser Microphone (PHANTOM switch ”ON”)
Recording Device
Zone 1 : Horn Speaker
Zone 2 : Horn Speaker
Zone 3 :
Box Speaker
Zone 4 :
Box Speaker
Zone 5 :
Box Speaker
To AC Power
Source

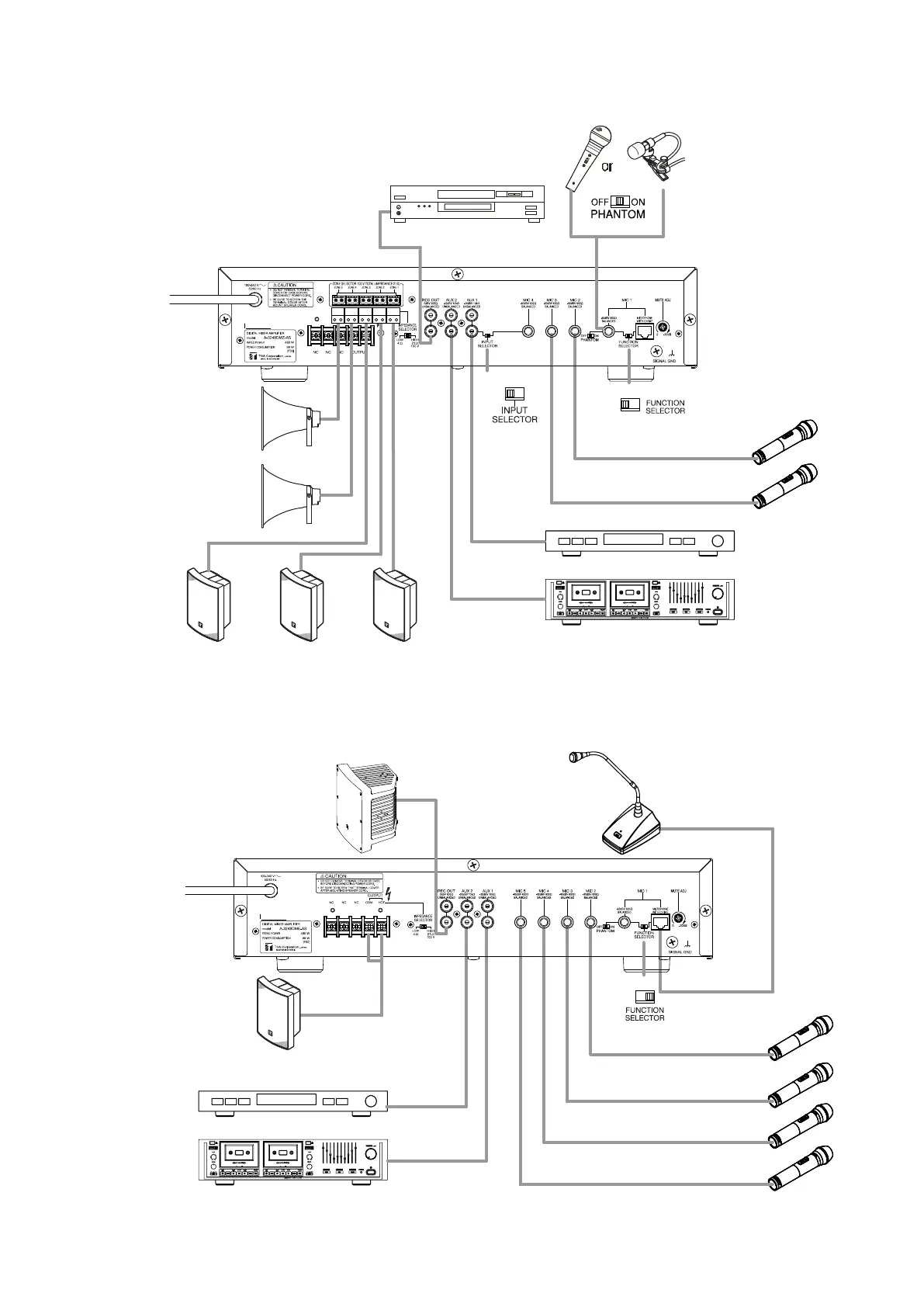

Example of External Equipment Connections
(5 zone selector , 3 mic input)
Example of External Equipment Connections (model with 5 band equalizer, 1 chime
microphone, 4 microphone input, 2 aux, 1 rec out)
Dynamic Microphone
Dynamic Microphone
Dynamic Microphone
Dynamic Microphone
CD player
Cassete tape
player
To AC Power
Source
Active speaker
system
Low Impedance
Speaker
Chime Microphone
Select to AUX 1
1
1
Dynamic Microphone
Select to left
Select to right
