4. NOTES ON OUTDOOR INSTALLATIONS (HX-7B-WP and HX-7W-WP only)
Only the HX-7B-WP and HX-7W-WP are suitable for installation under the eaves.
For installation under the eaves, observe the following precautions.
• All speaker modules must point downward from the
horizontal. Failure to do so could adversely affect
their intended splash-proof and weather-resistant
capability, leading to malfunction.
• Both the HX-7B-WP and the HX-7W-WP employ a
splash-proof construction that allows them to be
installed under the eaves, but they should only be
installed in locations where the ambient temperature
is within the range of –15 ºC to +50 ºC (5 ºF to 122 ºF).
Exceeding the temperature range will cause the
speaker to fail.
• Connect speaker cables using thesupplied terminal
covers. (See p. 7.)

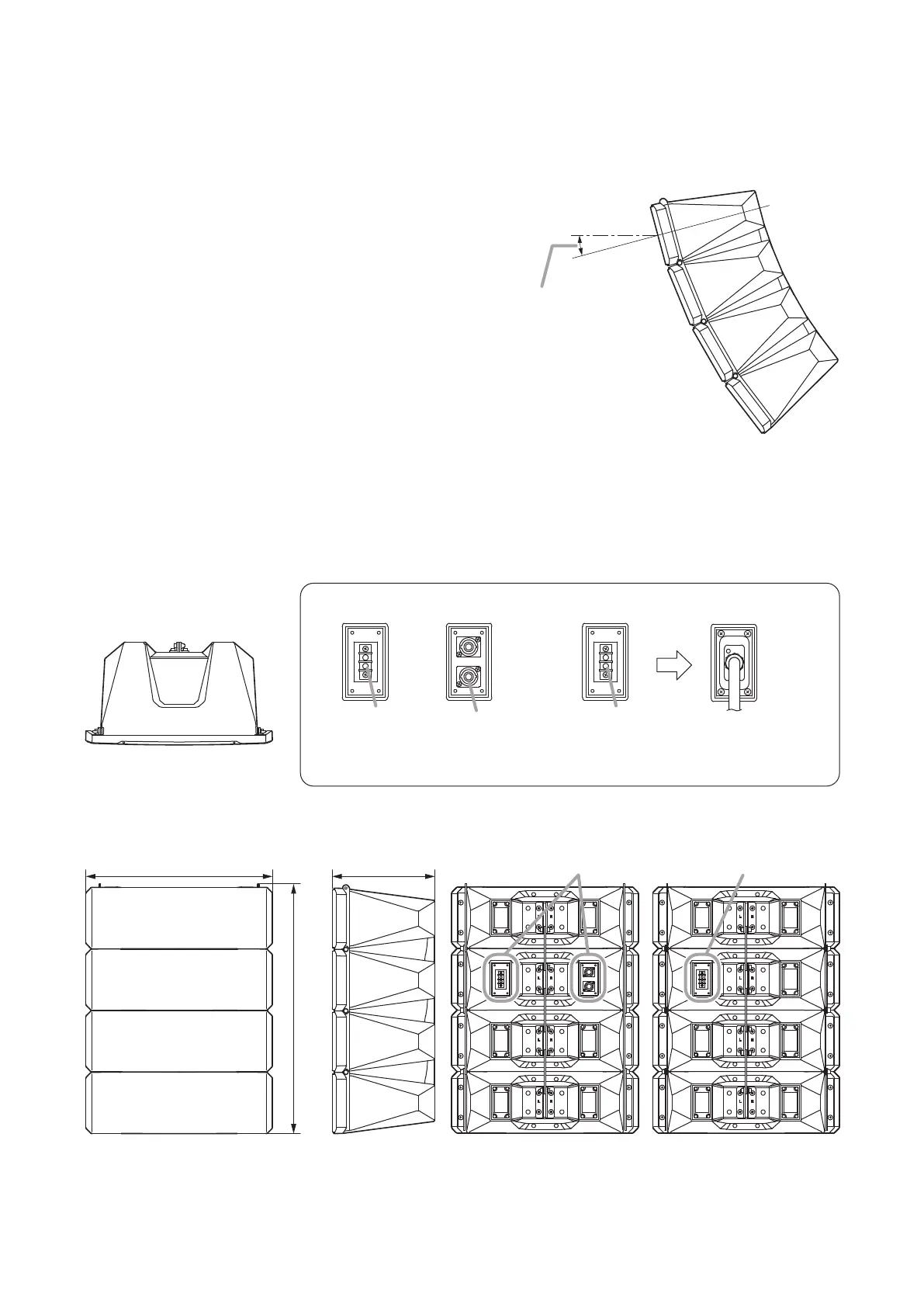

[Vertical installation]
Tilt down from the
horizontal.
Horizontal
5. DIMENSIONAL DIAGRAM
Unit: mm
497 (19.57")
• HX-7B/7W Input section • HX-7B-WP/7W-WP Input section
Input section Input section
274 (10.79")
664 (26.14")
Screw terminals Screw terminals
Speakon
NL4MP connector
[Rear (HX-7B/7W)] [Rear
(HX-7B-WP/7W-WP)]
[Side] [Front]
[Top]
Attach the supplied
terminal cover.
(See p. 7.)
Note
In the above illustrations, the directivity angle is set to 0° mode (default setting).
