2. INTRODUCTION
3. MAIN FEATURES
M-8080D series Digital Matrix Mixer System. This device is dedicated to
music, paging, discussion and zone management solutions for Commercial Audio applications.
Easy to use and to implement, M-8080D offers state-of-the-art signal processing in a cost effective
package.

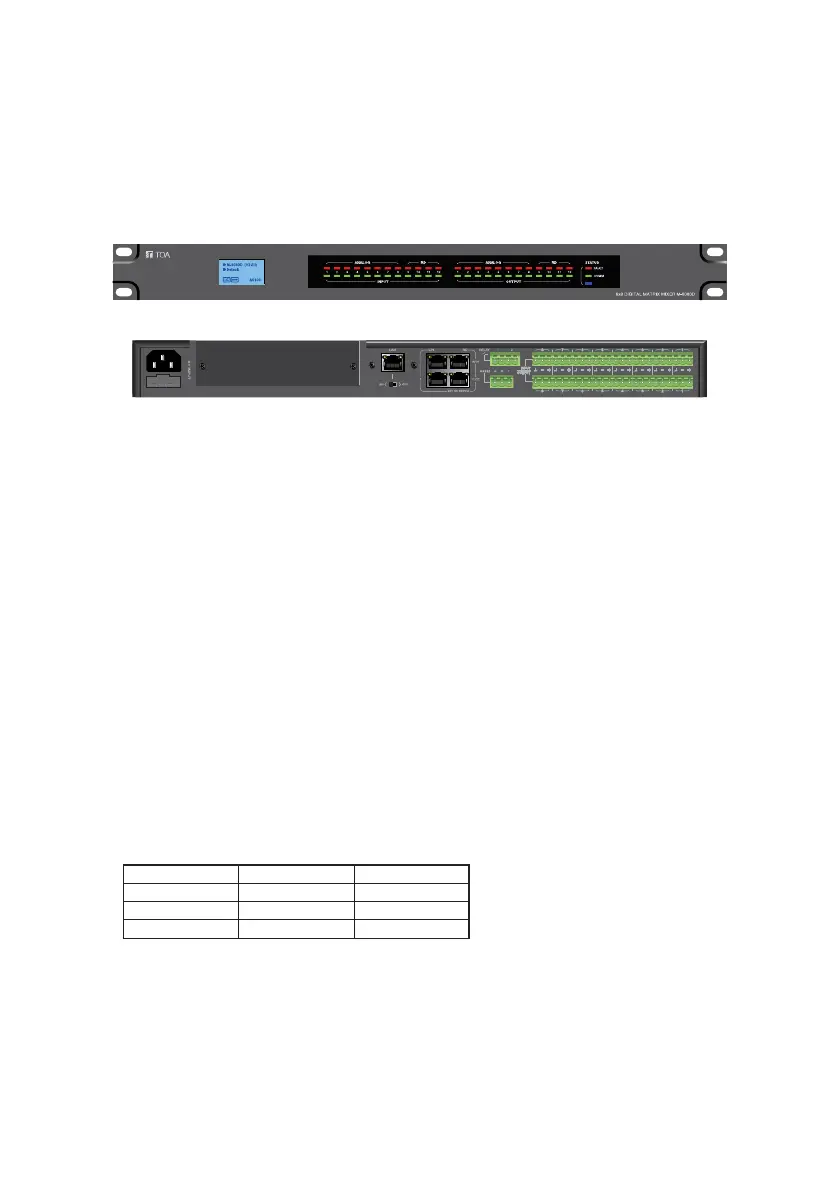

3.1. DIGITAL MATRIX
Projects using DSP platforms usually require a minimum number of inputs and outputs.
This determines the choice of dedicated matrix models. M-8080D offers a large choice of I/O options in
order to cover most of applications:
Audio I/O:
• Standard: 8 analogue IN / 8 analogue OUT on rear panel ports of M-8080D.
• Optional: 4 digital IN / 4 digital OUT via remote devices analog I/O.
• Max. System I/O: 12 x 12.
Remote devices Audio IN Audio OUT
Optional remote devices with Audio I/O. Consumption on Audio I/O from devices in regards to
additional available 4 digital IN / 4 digital OUT per M-8080D.
Note:
• Only 2x devices of the above mentioned controllers can be connected physically to 1x M-8080D
(available ports).
• 12x12 can be realized by using 2x M-822IO.
• Internal A/D conversion sampling rate 48kHz, Bit rate 24 bits.
M-800RM 2x --
M-802RC
-- 2x
M-822IO 2x 2x
M-8080D is a DIGITAL AUDIO PLATFORM for professional use. It can be used in following electromagnetic
environment: residential, commercial and light industrial, urban outdoors. It is the apparatus intended for
rack mounting.
