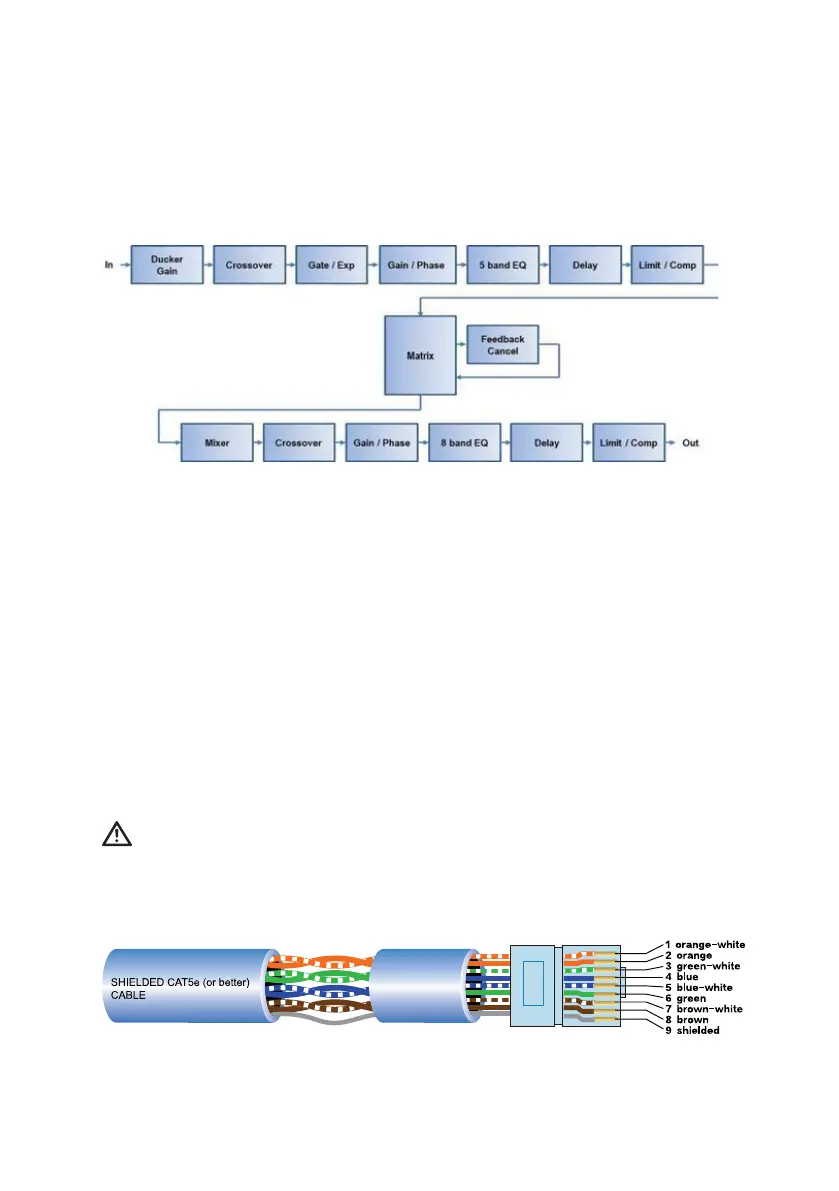

3.2. DSP FUNCTIONS
M-8080D is intended for non-experts. The system used fix architecture for quick and easy operation.
The intuitive GUI utilizes a familiar hardware-like layout to enable a short programming timeline and
rapid hardware implementation.
All functions can be configured with the PC Editor Software. Settings can be memorized for easy
duplication or modification:
3.3. NETWORKS
M-8080D uses two types of network connections:
• RD, based on RS-485 for panel control and AES3 for digital audio transport.
• TCP/IP for LAN control.
Cable connections for Remote Controllers (RD ports)
Use shielded CAT 5e (or better) cable to connect the remote controllers to the RD ports. The maximum
transmission distance is 100 meters. If in wall-mounted controllers can be connected to the ground
(except the Paging Station), the distance can be increased up to 150 meters.
CAUTION: Never connect a RD port to the router; this can cause damage to the devices.
The port can transmit and receive AES3 plus control signal, the following graphic illustrates the
termination and also shows function of each wire pair on the network:
