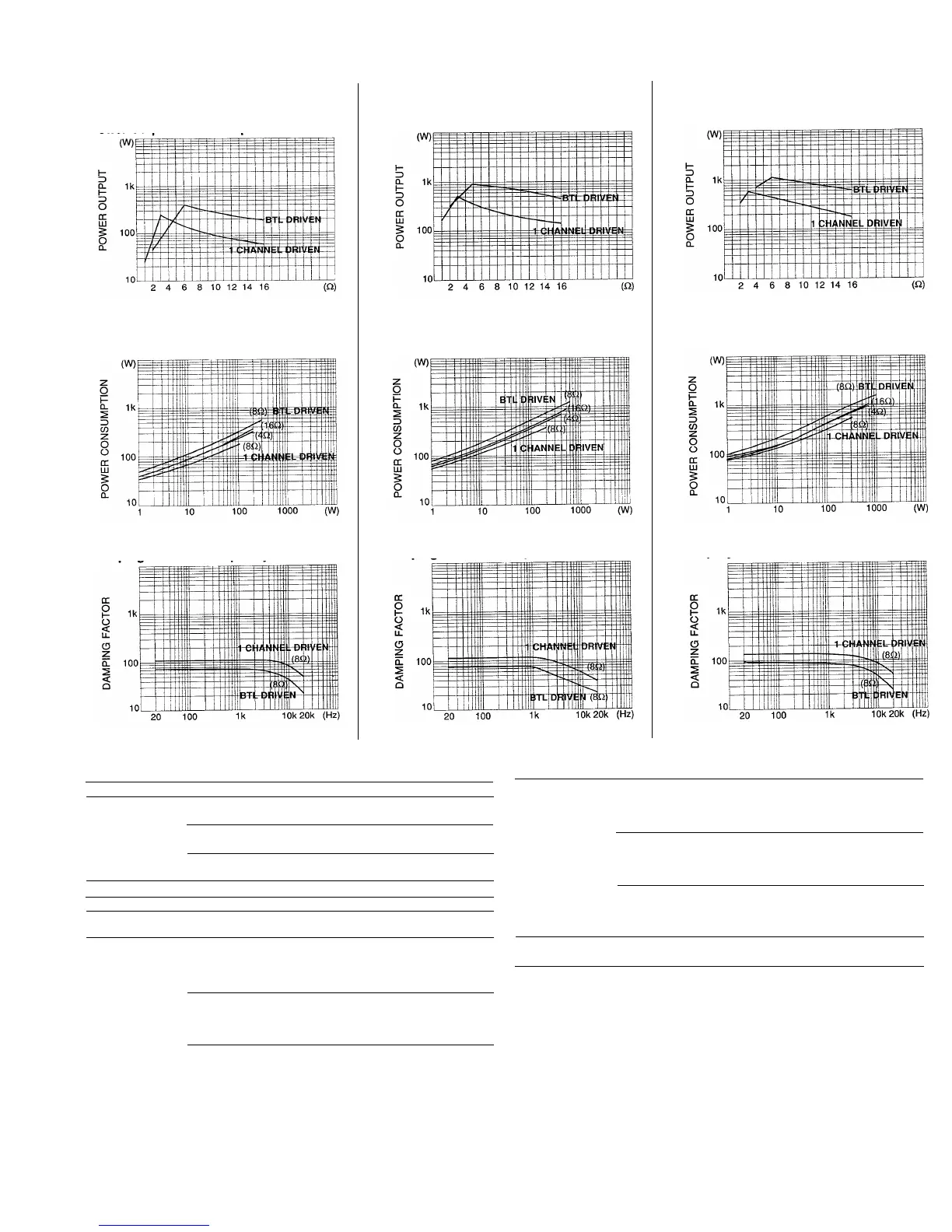

PERFORMANCE GRAPHS
P-1030D
l l Power Output vs Load impedance
LOAD IMPEDANCE
l l Power Consumption
(One Channel and BTL Driven)
POWER OUTPUT
POWER OUTPUT
l l Damping Factor vs Frequency
l l Damping
Factor vs Frequency
FREQUENCY
P-1060D
l l Power Output vs Load Impedance
LOAD IMPEDANCE
l l Power Consumption
(One Channel and BTL Driven)
FREQUENCY
For BRIDGE Operation
Power Output P-1030D: More
than
300
watts,
8 ohms, 1kHz
More
than
200
watts, 16 ohms, 1kHz
P-1060D: More
than
600
watts,
8 ohms, 1kHz
More
than
400
watts, 16 ohms, 1kHz
P-1090D:
More
than 900 watts, 8 ohms, 1kHz
More than 600 watts, 16 ohms, 1kHz
Frequency Response
+0dB, -2.0dB, 8 ohms, 20Hz to 20kHz
Total Harmonic Distortion
Less than 0.05%, at 8 ohms, 1kHz
Intermodulation Distortion
0.05% using frequencies of 60Hz and 7kHz,
mixed in a ratio of 4:1, at 8 ohms
Damping Factor
P-1030D:
More than 70, 8 ohms at any frequency from
20Hz to 1kHz
More than 20, 8 ohms at any frequency from
20Hz to 20kHz
P-1060D:
More than 75, 8 ohms at any frequency from
20Hz to 1kHz
More than 20, 8 ohms at any frequency from
20Hz to 20kHz
P-1090D:
More than 90, 8 ohms at any frequency from
20Hz to 1kHz
More than 25, 8 ohms at any frequency from
20Hz to 20kHz
P-1090D
l l Power Output
vs Load Impedance
LOAD IMPEDANCE
l l Power Consumption
(One Channel and BTL Driven)
POWER OUTPUT
l l Damping
Factor vs Frequency
FREQUENCY
Output Impedance
P-1030D:
Less than 0.11 ohm at any frequency from
20Hz to 1kHz
Less than 0.4 ohm at any frequency from
20Hz to 20kHz
P-1060D:
Less than 0.1 ohm at any frequency from
20Hz to 1kHz
Less than 0.4 ohm at any frequency from
20Hz to 20kHz
P-1090D:
Less than 0.09 ohm at any frequency from
20Hz to 1kHz
Less than 0.3 ohm at any frequency from
20Hz to 20kHz
110dB below rated output (20Hz to 20kHz)
115dB below rated output (IHF-A weighted)
Hum and Noise
* 0dB=0.775Vrms
* *Specifications are subject to change without notice
