900 SERIES AMPLIFIER P – 924 MK 2
SIGNAL NORMAL
PROTECT
MASTER
ON
OFF
PEAK
POWER
900 SERIES AMPLIFIER P – 906 MK 2
SIGNAL NORMAL
PROTECT
MASTER
ON
OFF
PEAK
POWER
3 4 5 6 7
2
1
3 4 5 6 7
2
1
• P-906MK2, P-912MK2
This figure represents the P-906MK2.
• P-924MK2

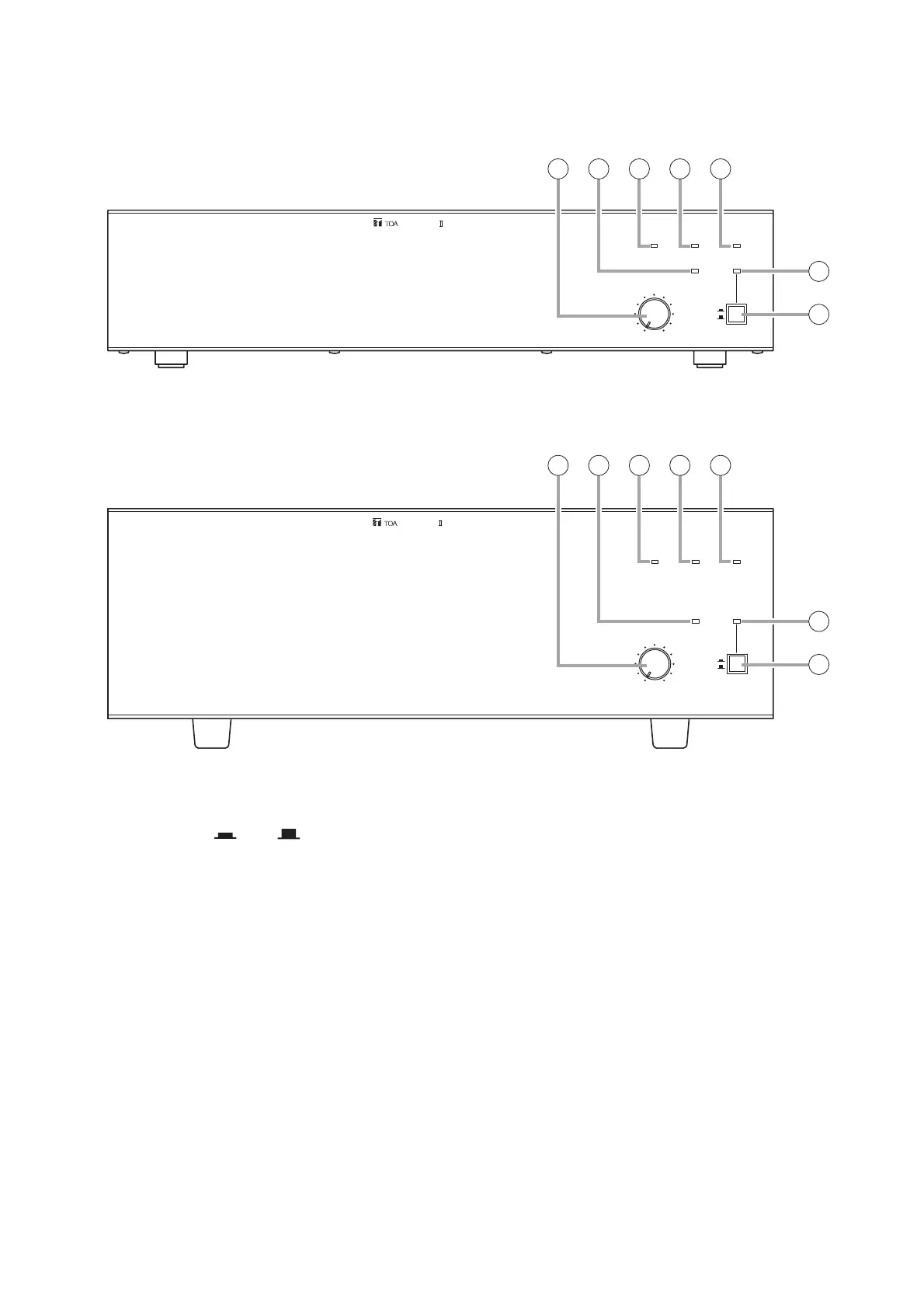

5. NOMENCLATURE AND FUNCTIONS
[Front]
1. Power switch [ ON / OFF]
Power is switched on and off with each depression
of this switch.
2. Power indicator [POWER] (Green)
Lights green when the Power switch (1) is
switched on.
3. Master volume control [MASTER]
Adjusts gain of input.
4. Protection indicator [PROTECT]
Lights red if the built-in protection circuit works.
This indicator remains lit for about 5 seconds after
the power has been switched on.
5. Signal indicator [SIGNAL] (Green)
Lights green when sound is output from the
speaker output terminals.
6. Normal indicator [NORMAL] (Yellow)
Lights yellow when the output sound volume is
appropriate.
7. Peak indicator [PEAK] (Red)
Lights red if input signals approach clipping level.
If steady lit, turn down the Input volume control
until the indicator flashes only intermittently.
