GENERAL PURPOSE BROADCAST INPUT
Control I/O (Timer)
4-1-5
13 1
25 14
CONTROL I/O
Pattern 2
Program Timer TT-104B
Pattern 1
Program Timer TT-104B
No.16
No.11
No.3 – 7
No.16

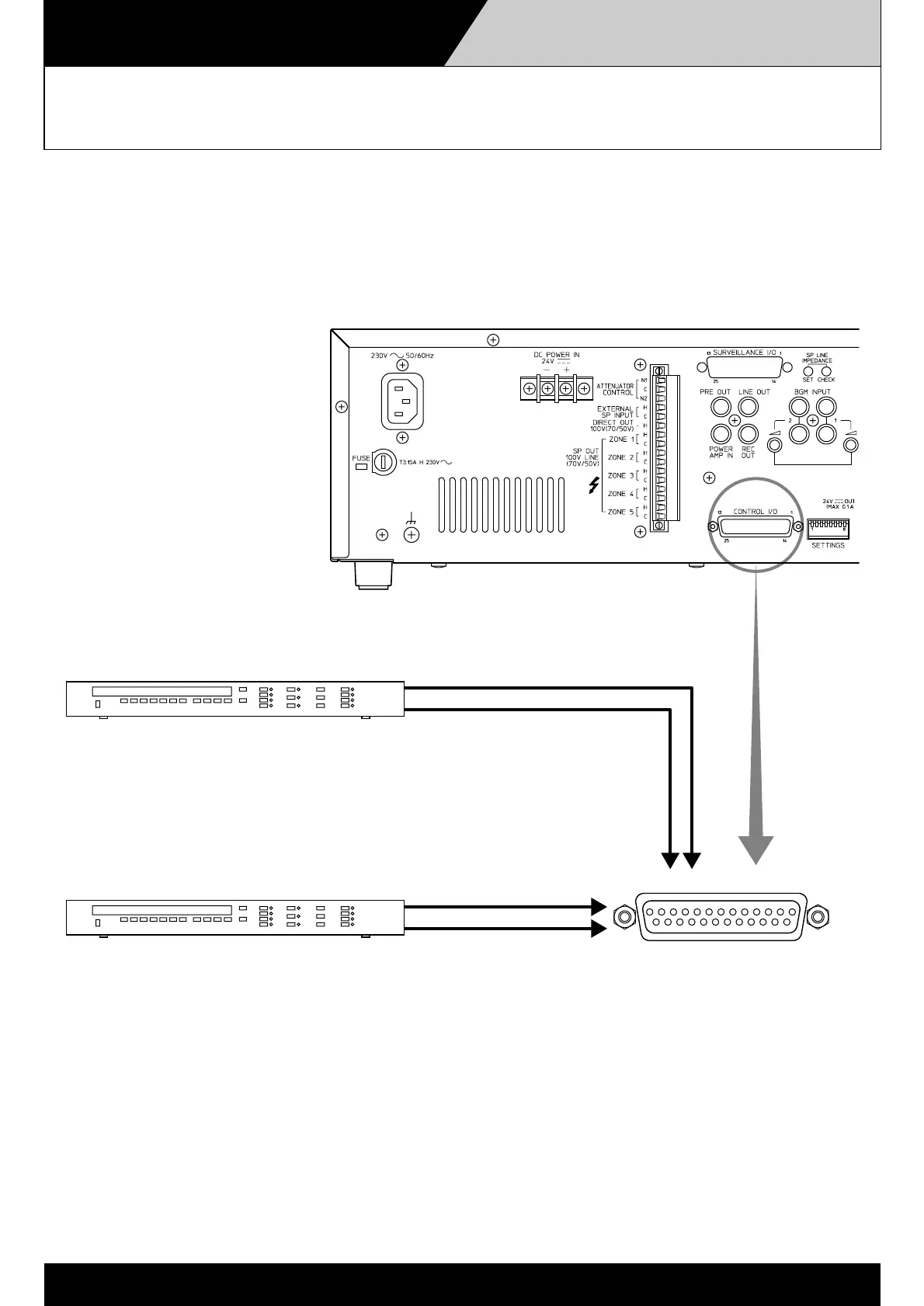

By combining the VM amplifier with a timer, a chime tone can be broadcast at preset times.
Connect the timer (designed to deliver a no-voltage "make" contact
output) to Pins 11 and 16 of the VM amplifier's control I/O terminal.
The timer will then activate the VM amplifier at preset times to
broadcast its built-in Westminster chime.
Install a pre-recorded memory card in the EV-200, then connect the
timer (designed to deliver a no-voltage make contact output) to pins
3 – 7 and 16 of the VM amplifier's control I/O terminal. The timer will
then activate the VM amplifier at preset times, and each of the
recorded memory card messages will be played back whenever
the VM amplifier is activated.
