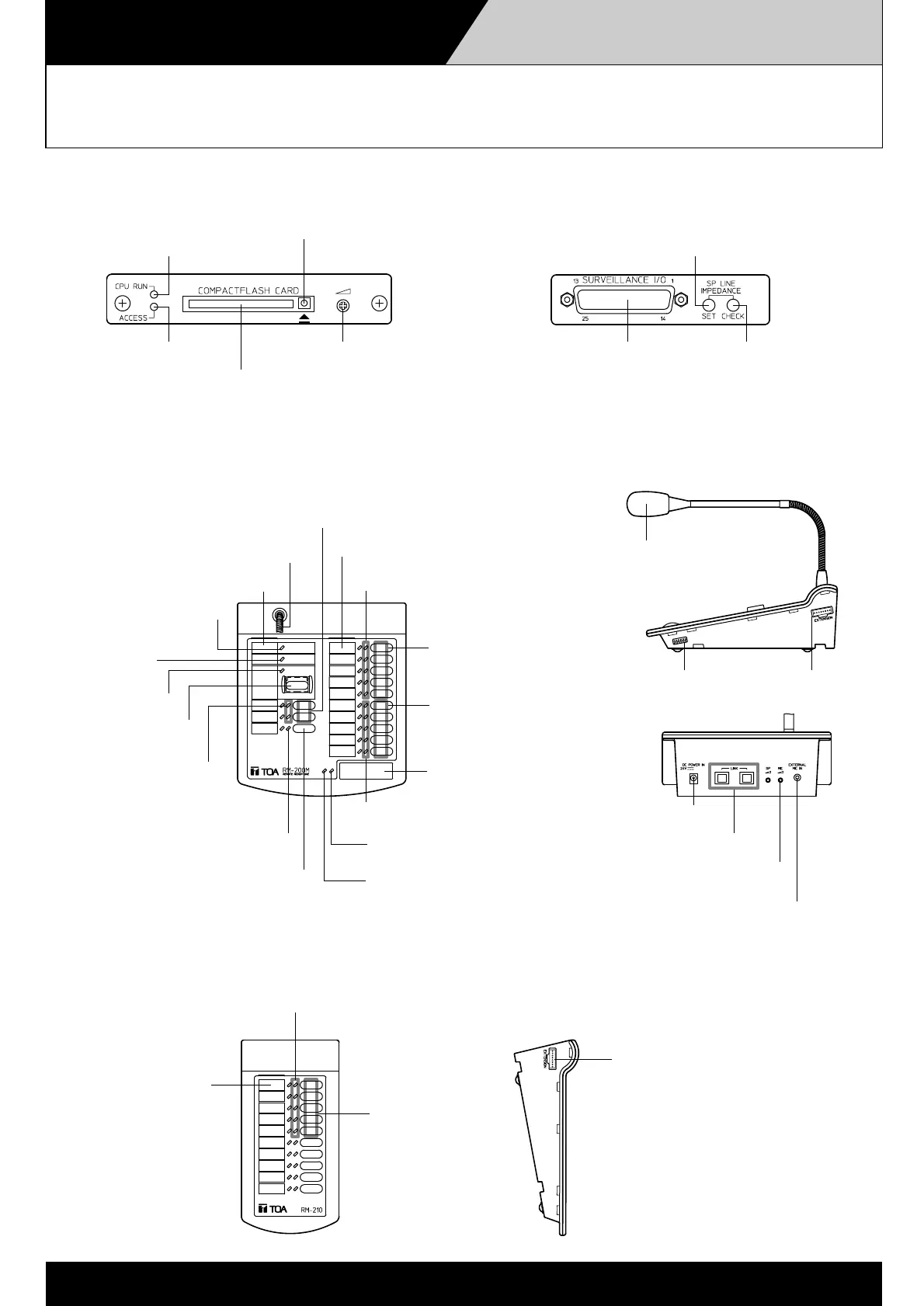

NOMENCLATURE
Nomenclature
(EV-200, SV-200M, RM-200M, RM-210)
3-2
Voice Announcement Board EV-200 Surveillance Board SV-200M
Voice Announcement
board volume control
Eject button
CF card slot
CPU status indicator
Card access
indicator
Surveillance input and
output connector
Speaker line impedance
setting key
Line check key
Remote Microphone RM-200M
Gooseneck microphone
Gooseneck microphone
Name label
Name label
Power indicator
Failure indicator
Emergency indicator
Emergency broadcast
switch
Groups 1&2 indicator
Groups 1&2 broadcast key
All-zone indicator
All-zone broadcast key
Zone selector key
Zone indicator
Zone/Message
selector key
Zone/Message indicator
Busy indicator
In-use indicator
Talk key
DC power input jack
Link connector
Microphone volume control
External microphone input jack
Extension
connector
Function setting
switch
[Top]
[Top] [Left Side]
[Right Side]
[Rear]
Name label
Zone/Message indicator
Zone/Message
selector key
Extension connector
Remote Microphone Extension RM-210
To Next Page
