5. DC FUSE REPLACEMENT
When the DC fuse inside the unit has blown, replace it with a new one following the procedure below.
5.1. VM-3240VA/3360VA and VM-3240E/3360E
Step 1. Remove the top cover referring to p. 3, step 1.
Step 2. Confirm the rating of the blown fuse, then replace the fuse with the supplied one.

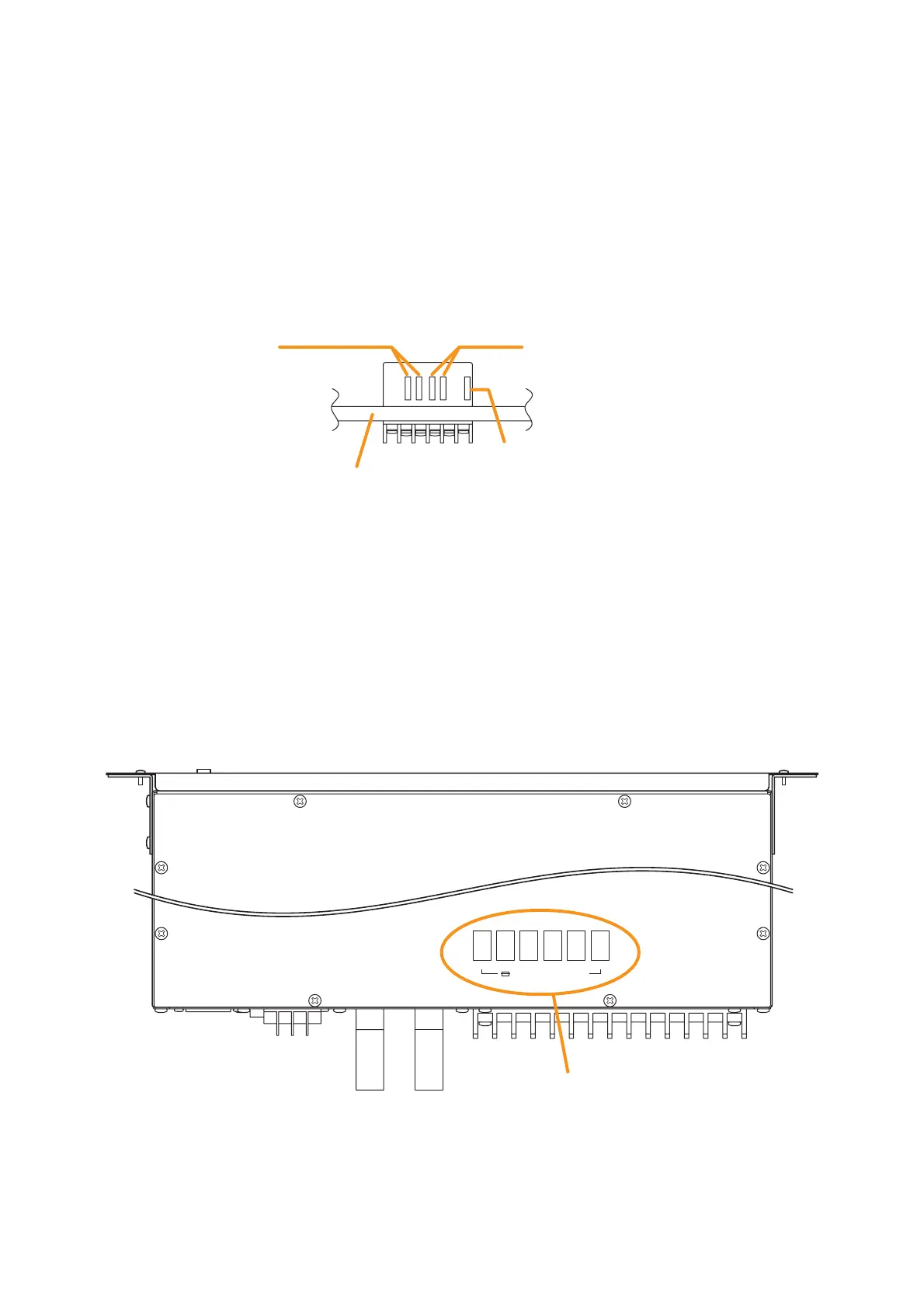

Blade fuses:
25 A (Common to the
VM-3240VA/3360VA)
Blade fuses:
15 A (VM-3240VA/3240E),
25 A (VM-3360VA/3360E)
Tube fuse:
250 V T2AL (Common to all models)
Rear panel
Step 3. Replace the top cover.
5.2. VX-2000DS
Fuses can be accessed from the top of the VX-2000DS.
Confirm the blown fuse, then replace it with the supplied one.
FUSE 40A (DC POWER OUT)
654321
(Front side)
VX-2000DS
Blade fuses: 40 A each (6 pieces)
To Next Page
