TOHATSU MFS 15 Owner's Manual

Bracket
7-6
4st 9.9/15/20 2008
22
2
3
5
4
21
10
13
23
11
4
12
7
4
9
8
6
20
14
16
15
19
18
20
1
7
7
2
3
5
4
17
6 N·m (4 lb·ft) [0.6 kgf·m]

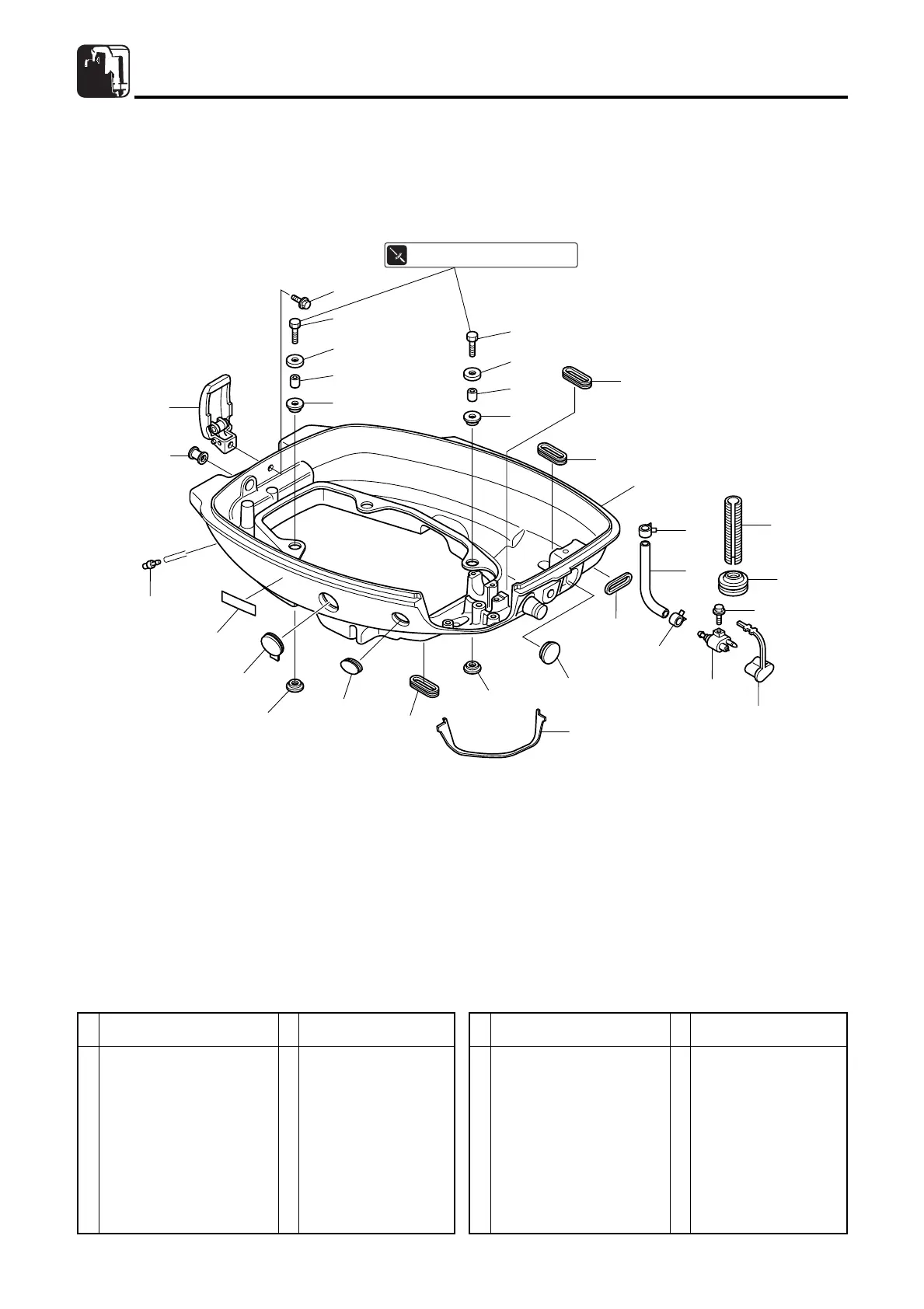

Bottom Cowl
P/L Fig. 20
1 Bottom Cowl 1
2 Bolt 4
3 Rubber Mount Washer 4
4 Rubber Mount, 8.5-14-2.5 8
5 Spacer, 6.2-9-15.7 4
6 Battery Cable Grommet 1
7 Shift Rod Grommet 3
8 Shift Lever Bracket Seal 1
9 Grommet, 17-2.7 1 for MF & EP
10 Grommet 1
11 Grommet 1
12 Grommet 1
13 Water Nipple 1
Ref.
No.
Description
Remarks
Q'ty
14 Fuel Connector (Engine, Male) 1
15 Bolt 1
16 Fuel Connector Protector 1
17 Rubber Hose 1
18 Fuel Hose Protector 1 ø10.7-280
19 Grommet, 22-2.5 1
20 Clip ø9.5 2
21 Cowl Latch Ass'y 1
22 Bolt 1
23 Storage Decal 1
Ref.
No.
Description
Remarks
Q'ty
