TOHATSU MFS 25C Quick Reference Guide

21-025 US

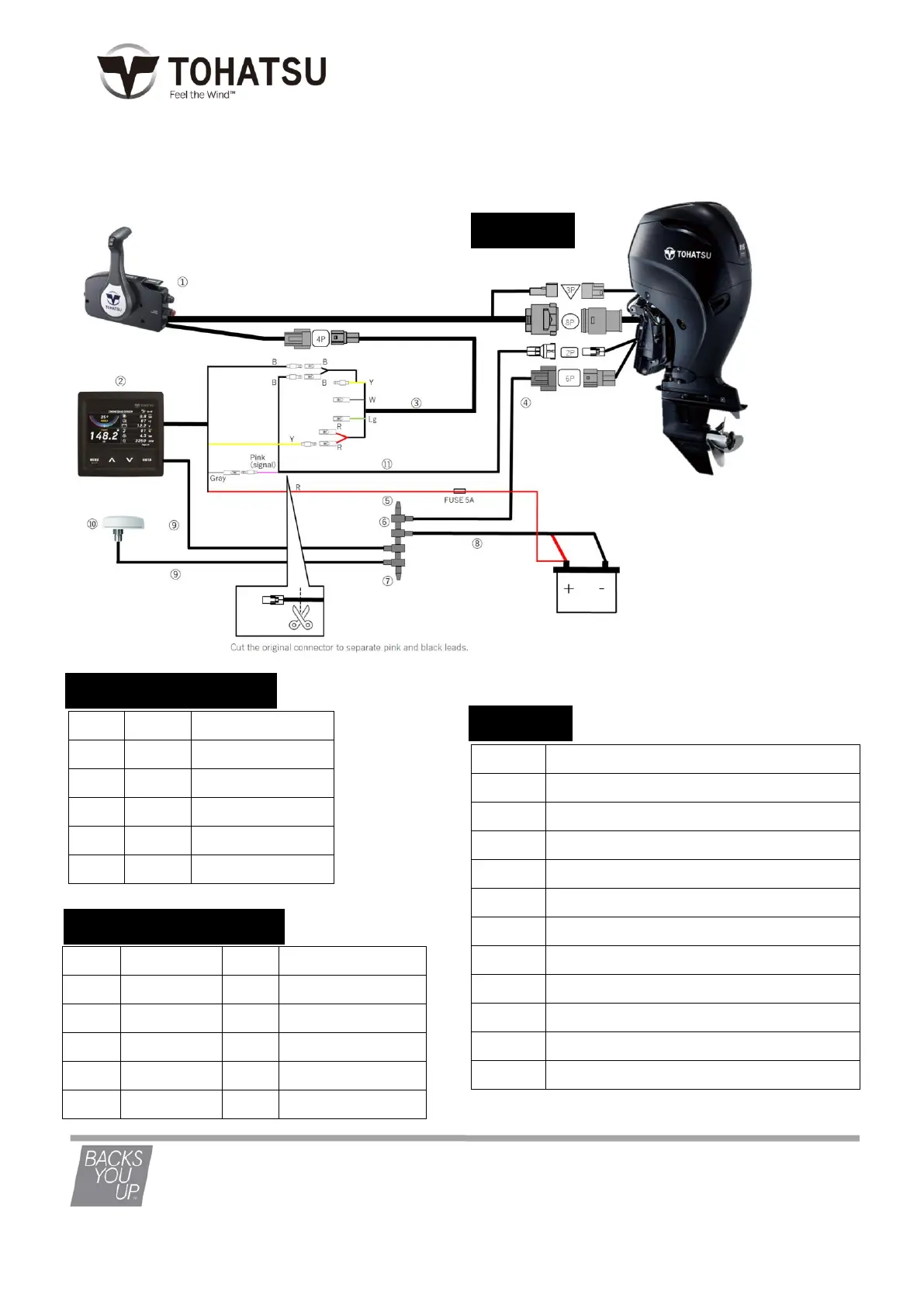

＜Wiring Diagram＞
Analog Trim Sensor (Standard)
Code
Color
Function
B
Black
Ground
Y
Yellow
+12V key ON
Gr
Gray
Trim signal
R*
Red
+12V always ON
Br
Brown
Fuel Gauge signal
No.
Description
①
REMOTE CONTROL HEAD ASSY. (RC12F)
②
TOCS 4.3" LCD DYSPLAY
③
METER LEAD WIRE L=2000 (6.5’)
④
ENGINE DROP CABLE
⑤
TERMINATOR (FEMALE)
⑥
TEE CONNECTOR
⑦
TERMINATOR (MALE)
⑧
BATTERY CABLE
⑨
BACKBONE CABLE
⑩
GPS MODULE
⑪
EXTENSION CORD（TRIM SENSER）
Code
Color
Tag
Function
B
Black
GND
Ground
Y
Yellow
TAC-
Ground
W
White
TAC+
Tachometer signal
Lg
Light Green
OIL
Oil signal
R
Red
BAT+
+12V key ON
Display Lead Wire Color Code
Meter Lead Wire Color code
Parts
Parts
