INSTALLATION 25
5
z Loosening may cause a dangerous situa-
tion, such as loss of control.

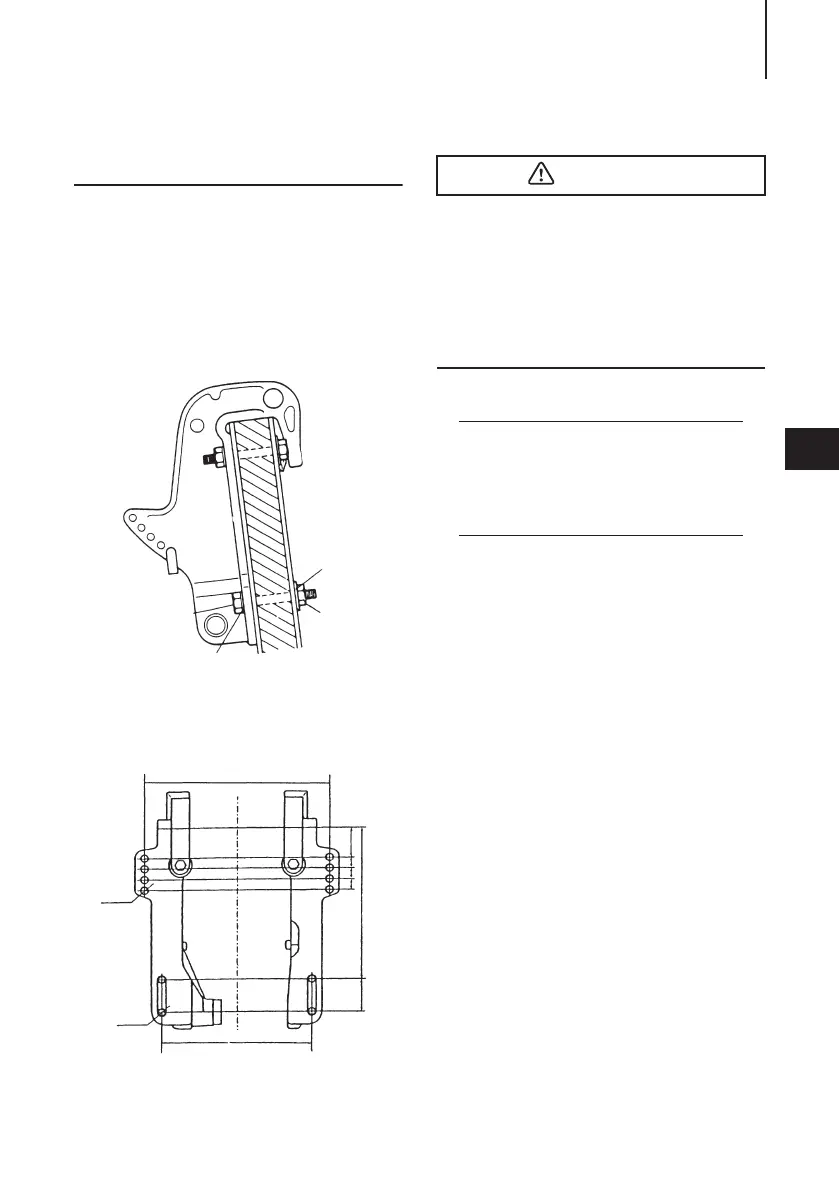

PT type
1. Set the outboard motor to appropri-
ate position.
2. Secure the clamp brackets to the
transom board using bolts, flat wash-
ers and nuts.
1. Bolt (12 × 105)
2. Washer (small diameter)
3. Nylon locking nut
4. Washer (large diameter)
ENOW00008-B
z Upper mounting bolts should be installed
with the bolt head at inside surface of the
transom. Mounting bolts installed with the
threaded end at the inside surface of the
transom can cause personal injury.
z Tighten the bolts sufficiency, otherwise
falling down of outboard could be hap-
pened.
ENON00930-1
Note
z Do not use tools to tighten clamp
screws. Over tightening could result in
damage to the clamp screws and clamp
brackets.
z Do not reuse Nylon locking nut.
3
1
4
2
ENOF00612-A
251
ø12.5
ø12.5
253.5
(2.0”)
(10.0”)
56
(2.2”)
1818 18
51
327
(12.9”)
(9.9”)
ENOF00613-0
CAUTION
