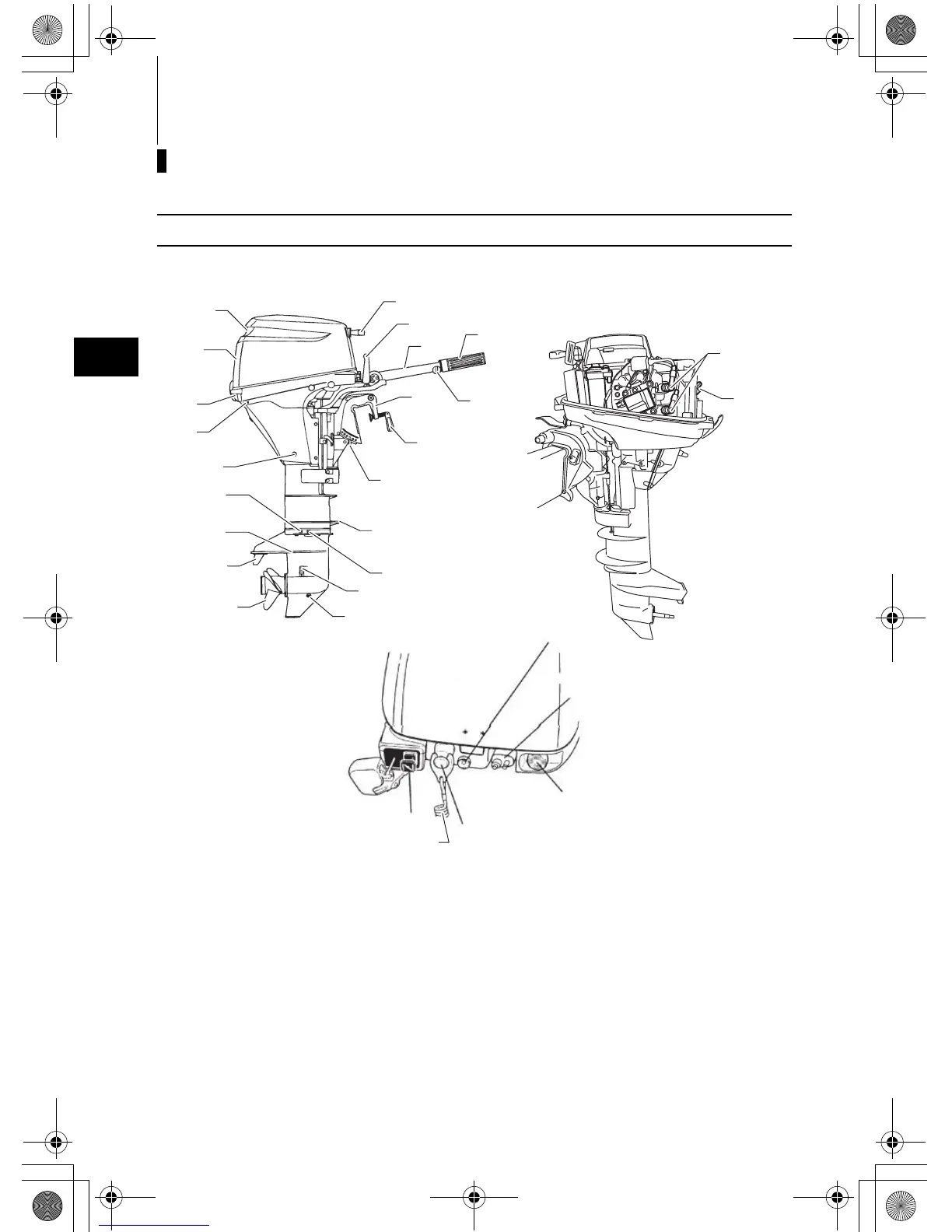

PARTS NAME
ENOM00820-0
MF, EF, EP
1
2
3
4
5
8
9
10
19
18
17
15
16
14
12
11
25
23
27
26
28
22
21
7
13
6
24
29
20
ENOF01402-0
1 Tilt Handle
2 Top C o wl
3 Bottom Cowl
4 Cooling Water Check Port
5 Oil Drain Plug
6 Water Plug
7 Anti-ventilation Plate
8 Trim Tab
9 Propeller
10 Oil Plug (Lower)
11 Cooling Water Inlet
12 Oil Plug (Upper)
13 Splash Plate
14 Thrust Rod
15 Clamp Bracket
16 Clamp Screw
17 Tiller Handle *1
18 Throttle Grip *1
19 Shift Lever *1
20 Throttle Adjust Screw
21 Ricoil Starter Handle
22 Spark Plug
23 Oil Filler Cap
24 Warning Lamp
25 Stop Switch *1
26 Stop Switch Lanyard
27 Choke Konob
28 Fuel Connector
29 Starter Switch *2
*1: Tiller handle type only
*2: Electric starter type only
