ENGINE OPERATION 49
7

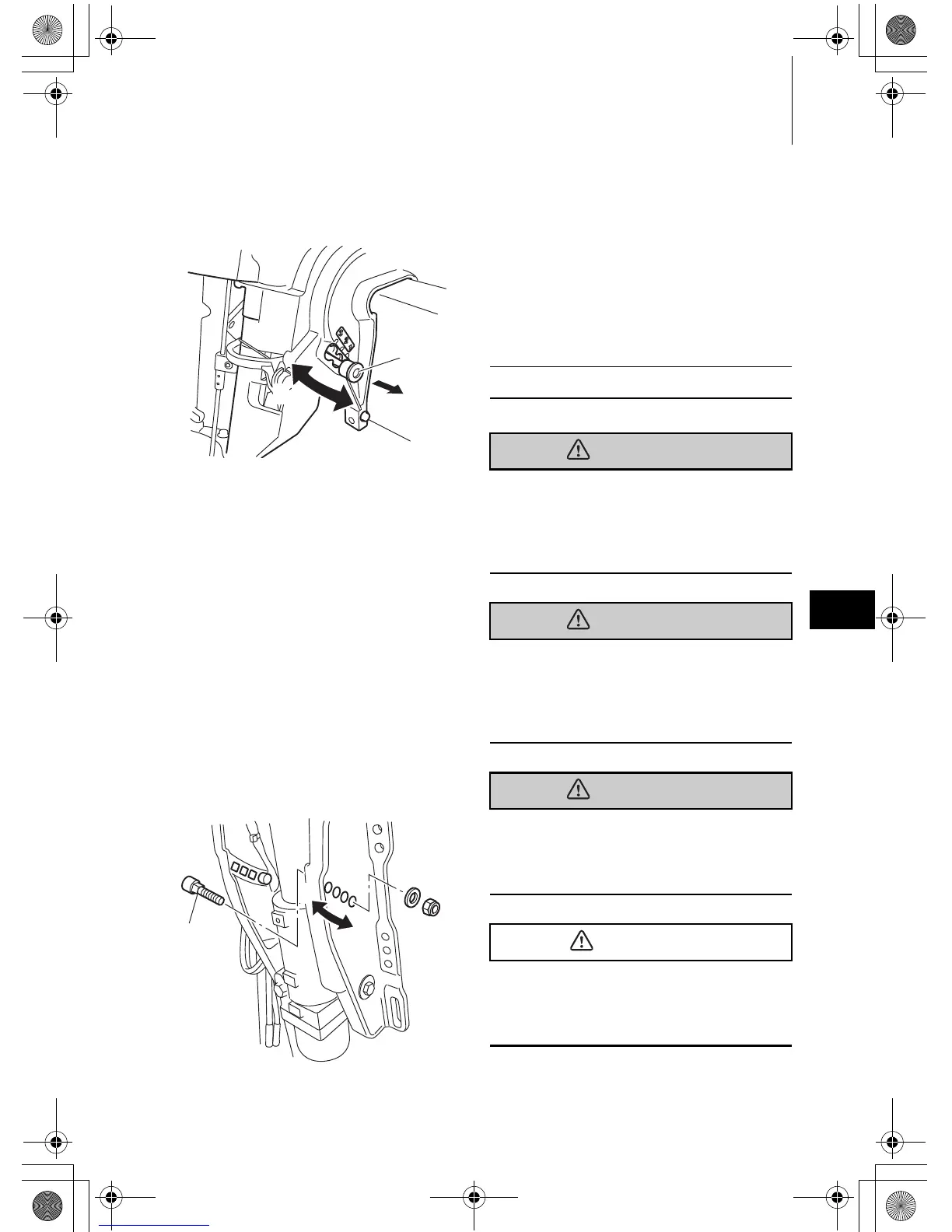

4. Change the trim lock pin position as
following picture.
1. Preset knob
1. Pull
2. Higher
3. Lower
5. Reinstall preset knob securely.
6. Gentry lower the outboard.
Trim angle adjustment (Power tilt type)
The transom angle adjustment
1. Stop the engine
2. Operate the Power Tilt switch and
raise the outboard motor to the tilt up
position.
3. Lock the tilt with the Tilt stopper.
4. Change the trim lock pin position as
following picture.
1. Trim lock pin
2. Higher
3. Lower
5. Reinstall the tilt lock pin securely.
6. Operate the Power Tilt switch and
lower the outboard.
ENOM00060-A
ENOW00055-0
Do not tilt up or down outboard motor
when swimmer(s) or passenger is near to
prevent them from being caught between
outboard motor body and clamp bracket in
case the outboard motor body falls.
ENOW00048-0
When tilting up or down, be careful not to
place your hand between the swivel
bracket and the stern bracket.
Be sure to tilt the outboard motor down
slowly.
ENOW00056-A
When tilting up outboard motor with fuel
joint for over a few minutes, be sure to dis-
connect fuel hose, or fuel may leak, poten-
tially catching fire.
ENOW00057-0
Do not tilt up outboard motor while engine
operates, or no cooling water may be fed,
leading to engine seizure due to overheat-
ing.
