ENGINE OPERATION48
7
1. Thrust rod
2. Higher
3. Lower
1. Thrust rod
2. Higher
3. Lower
Remark: Thrust rod is for MF and EF, and
preset knob is for EP.

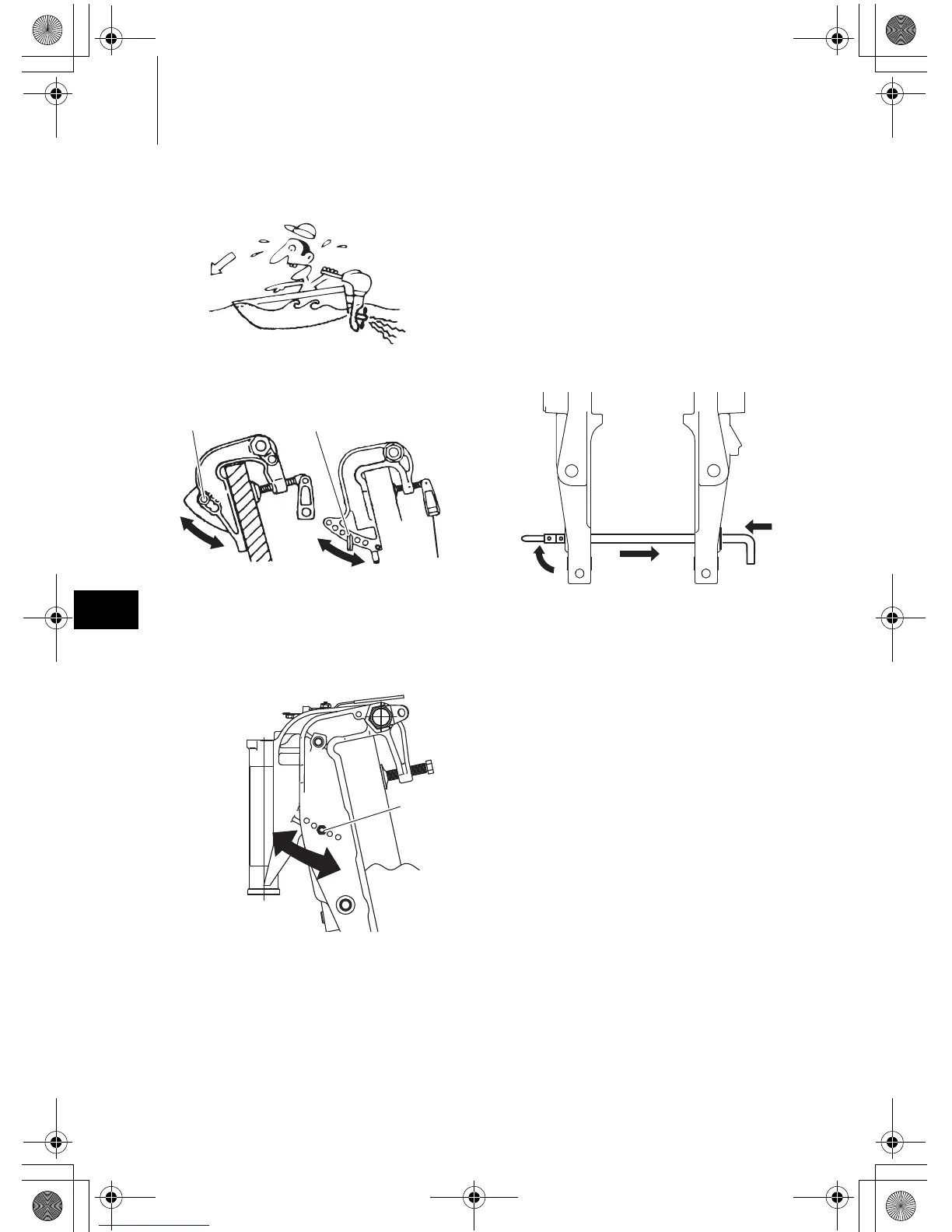

Trim angle adjustment (Manual tilt
type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral.
3. Raise the outboard motor to the tilt up
position.
4. Change the thrust rod position as fol-
lowing picture.
1. Push in
2. Rise the stopper
3. Pull out
5. Reinstall the thurst rod securely.
6. Gentry lower the outboard.
Trim angle adjustment (Manual tilt RC
type)
The transom angle adjustment
1. Stop the engine
2. Shift into forward.
3. Raise the outboard motor to the tilt up
position.
ENOF00053-0
