INSTALLATION24
5

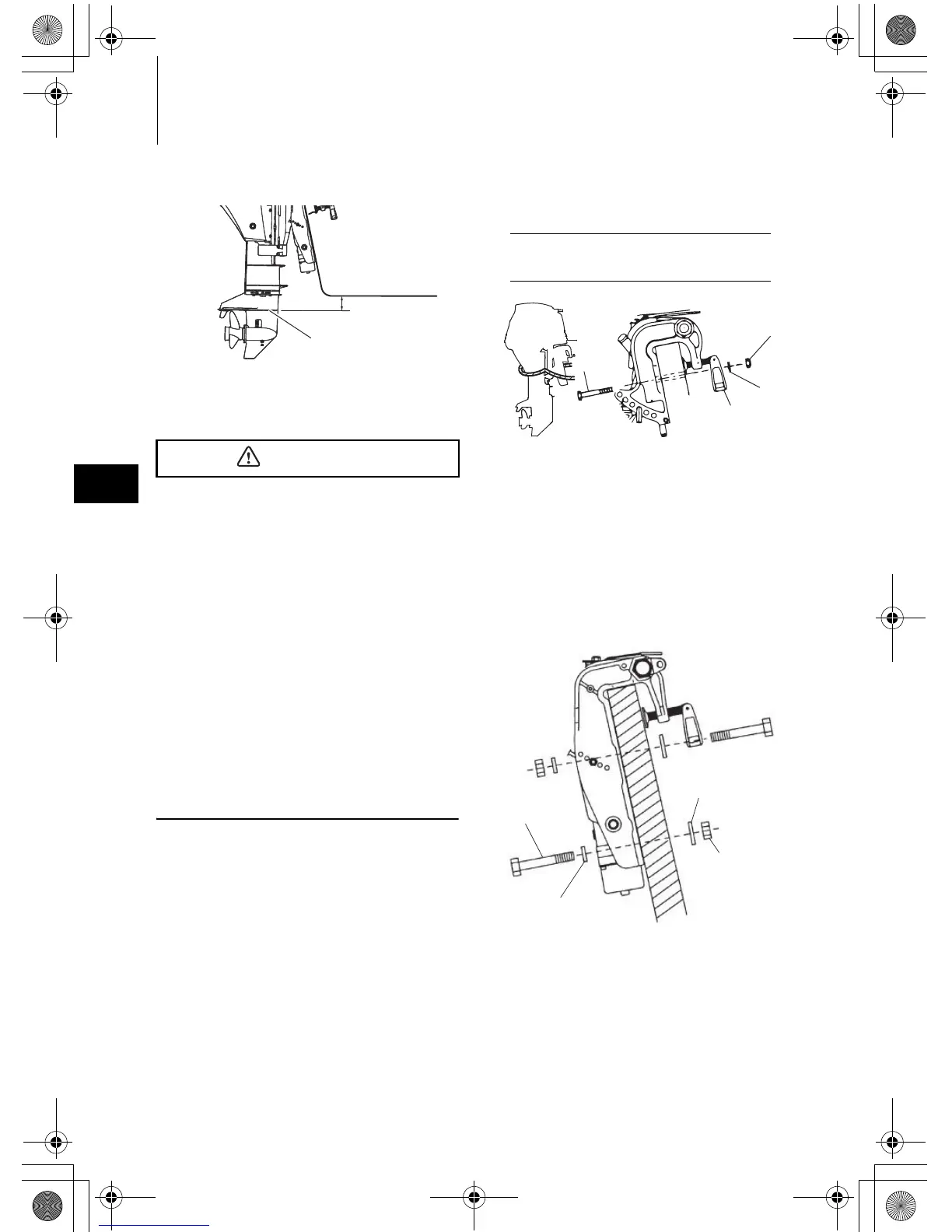

1. Bottom of hull
2. Anti ventilation plate
ENOW00007-0
Before beginning the running test, check
that the boat with maximum capacity
loading floats on the water in a proper
attitude. Check the position of water
surface on the driveshaft housing. If the
water surface is near the bottom cowl-
ing, in high waves, water may enter the
engine cylinders.
Incorrect outboard motor mounting
height or existence of underwater
object(s), such as hull bottom design,
bottom surface conditions or underwa-
ter accessories, can cause water spray
possibly reaching the engine through an
opening of the bottom cowling during
cruising. Exposing the engine to such
conditions for extended periods can
lead to severe engine damage.
ENOM00830-A
Mounting bolts
Manual tilt type
1. To attach the outboard motor to the
boat, tighten the clamp screws by
turning their handles.
Also, use the bolts to secure the out-
board motor brackets on transom
board.
Secure the outboard motor with a rope
to prevent loss overboard.
ENON00002-0
Note
A rope is not included in the standard
accessories.
1. Bolt (8 × 85)
2. Nut
3. Washer
4. Clamp screw
PTT type
1. To attach the outboard motor to the
boat, use the bolts to secure the out-
board motor brackets on transom
board.
1. Bolt (12 × 105)
2. Washer (small diameter)
3. Nut
4. Washer (large diameter)
CAUTION
To Next Page
