TQP-HS for Fuel Dispensers Component Technical Manual
2 PRODUCT INFORMATION
2.1 Definitions
TQP-HS: Commercial name of the TQP-HS
There is one hydraulic block for both 80l/min and 130l/min flow
TQP-HS 80: Name used when the delivery is 80 l/min (4.8 m
3
/h)
The TQP-HS 80 is equipped with a 1kW 1400 rpm motor
TQP-HS 130: Name used when the delivery is 130 l/min (7.8 m
3
/h)
The TQP-HS 130 is equipped with a 1.5kW 2800 rpm motor

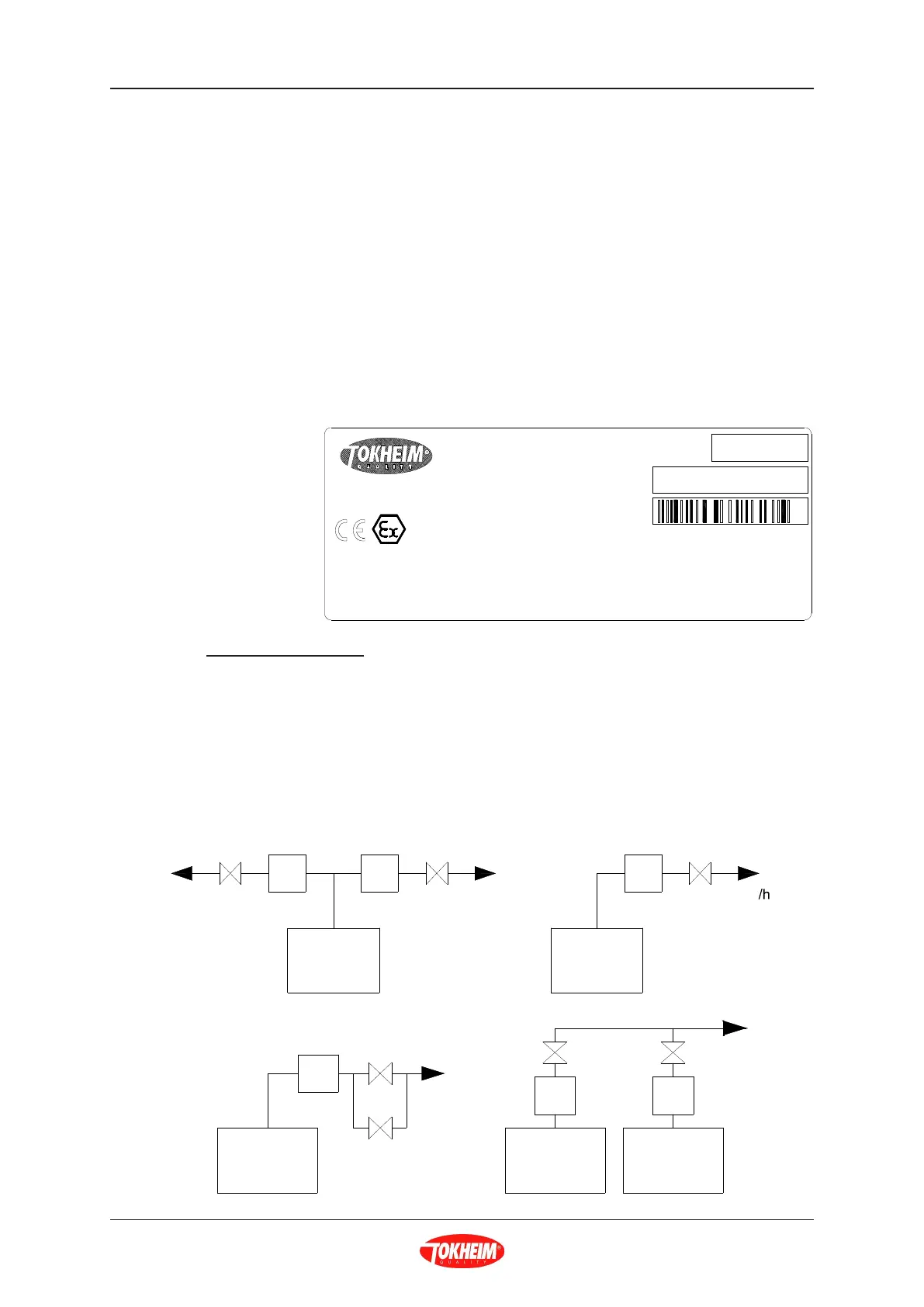

Type plate:
IMPORTANT NOTE
When reporting a case of anomaly or malfunction, the name TQP-HS must be
reported together with the serial number indicated on the type plate near the pump
pulley (see above diagram). Please complete the problem report form in section
4.8 before contacting Tokheim.
2.2 Configurations
2.2.1 TQP-HS 80 L/MIN
TQP-HS
80
2.4 m³/h
40 l/min
TQP-HS
80
2.4 m³/h
40 l/min
4.8 m³
80 l/min
TQP-HS
80
2.4 or 4.8 m³/h
40 or 80 l/min
TQP-HS
80
TQP-HS
80
9.6 m³/h
160 l/min
Gas Separator
for liquid fuel.
Dundee, Scotland
Temp Range: -10°C to +55°C
File Reference: TR801
Qmax 130 l/min
Qmax 80 l/min
Diesel
Gasoline/Diesel
Pmax 3.5 bar
Pmax 3.5 bar
Pmin 2.3 bar
Pmin 1.7 bar
PAS V3/TQP-HS:
I I 2 G EEx c T3
MMQ: 2 l Environment Class: C
Year/Serial No: 2007G0#1
W&M Cert: TC7186

Tokheim TQP-HS Specifications

General

Brand	Tokheim
Model	TQP-HS
Category	Water Pump
Language	English
