Tokheim TQP-HS User Manual

Document Ref 942005-001 Rev 2.2 Page 2-5
Component Technical Manual TQP-HS for Fuel Dispensers
ENVIRONMENTAL CONDITIONS
Climate Marine, tropical, industrial and polar
Ambient temperature range -40°C to +55°C
Temperature of liquid -40°C to +55°C
Relative humidity 5% to 95% non condensing
Altitude Sea level up to 2000 m
2.4 Alignment of the Pump
When installing the TQP-HS the following measures have to be taken into consideration
regarding the V-belt.

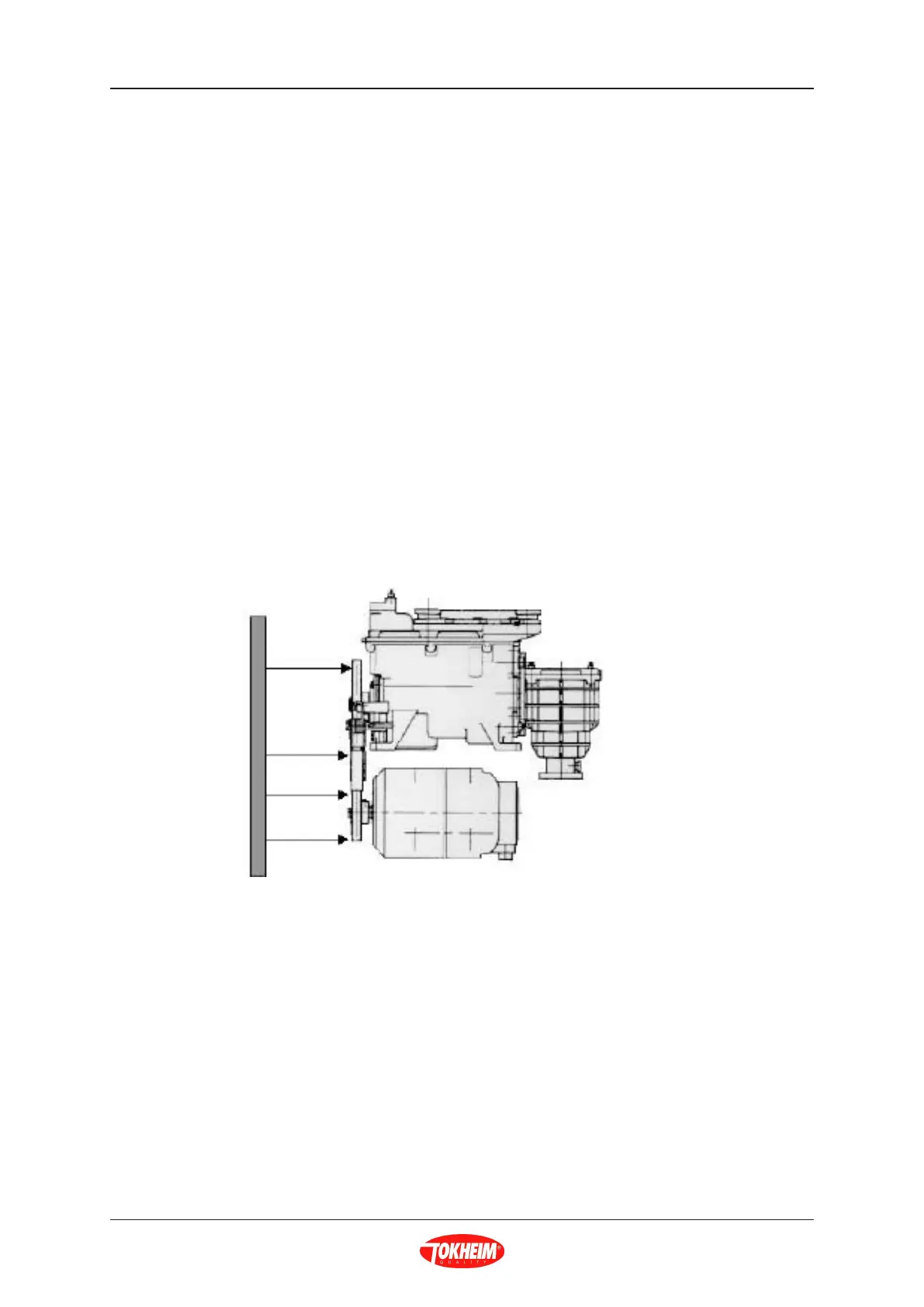

Adjust the pulleys of the motor and pump in such a way that they are positioned in one
plane. A flat plate can be used to position the pulleys correctly. In this case, the plate must
touch the pulleys at four points (refer to diagram below):-
