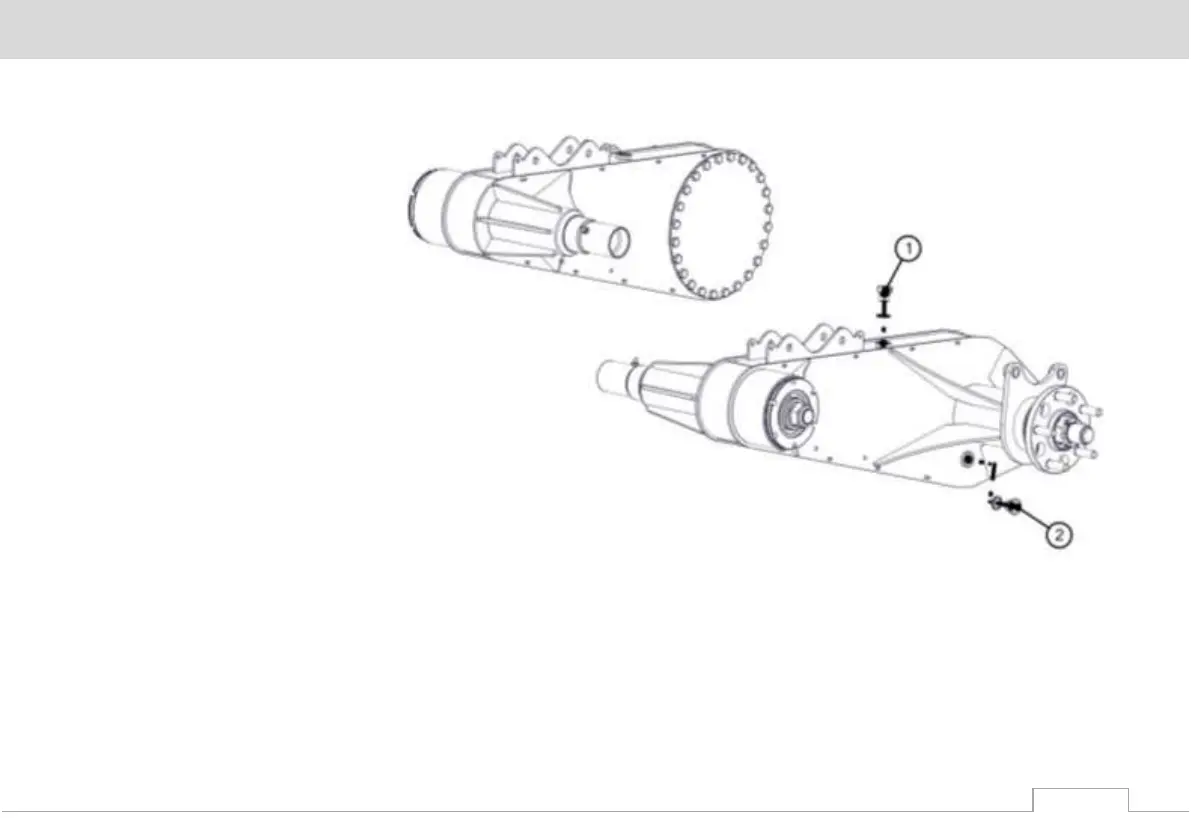

Final Drive Oil Change
1. Position the vehicle on a level surface.
2. Remove the wheel.
3. Remove the fill plug.
4. Remove the drain plug and drain the oil into a drain pan.
5. Wipe the magnetic end of the drain plug and remove accumulated metallic filings.
6. After the oil drain is complete, install a new sealing washer and reinstall drain plug. Tighten to 35 Nm.
7. Add 0.75 liters of oil (per the lubrication fluid table).
8. Reinstall the fill plug and tighten to 30 Nm.
