Tomos A31988 - Checking, Dismantling, and Assembling of the Clutch

13
CHECKING, DISMANTLING, AND ASSEMBLING OF THE CLUTCH

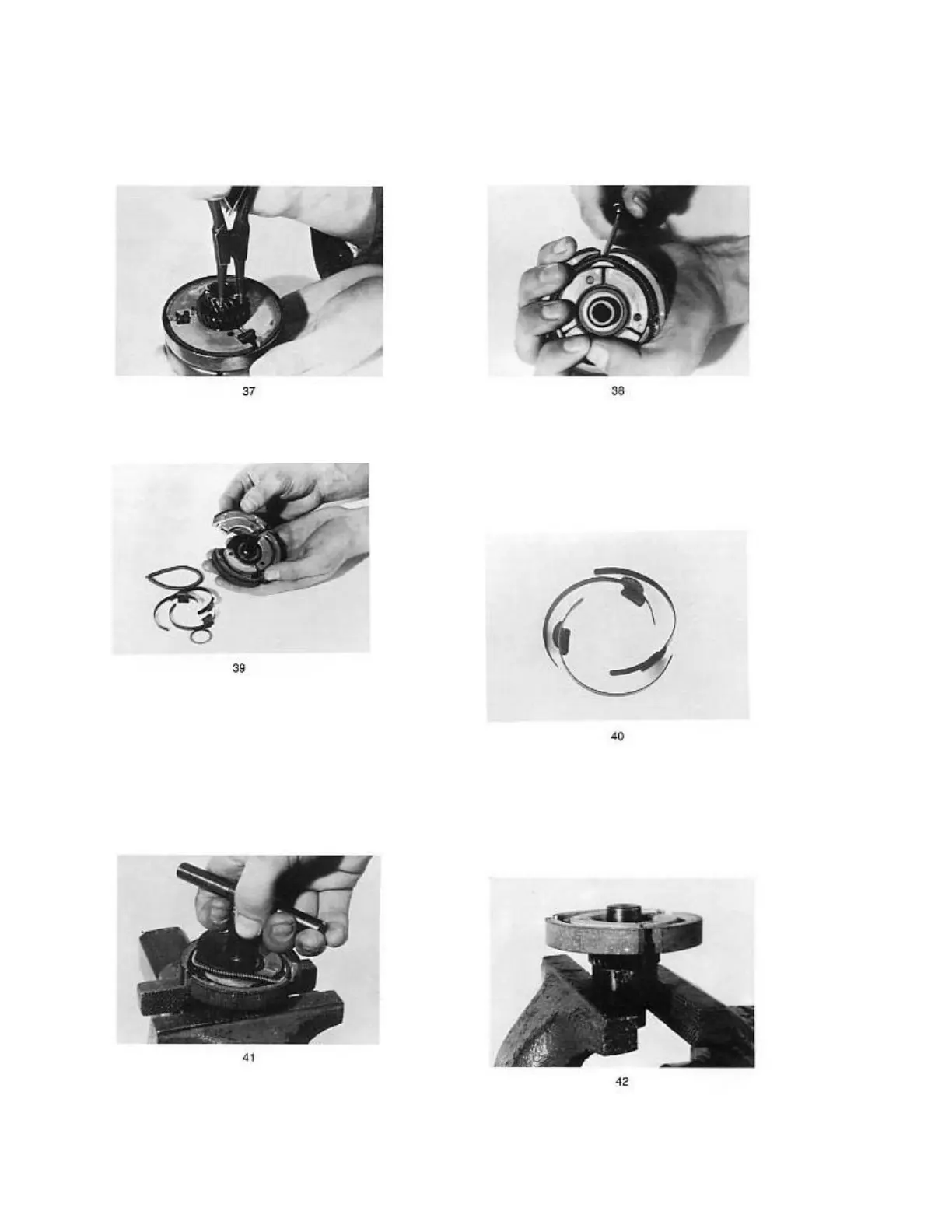

Remove the circlip and separate the 1
st
and 2
nd
speed clutches (fig 37)
Dismantle both clutches. The spring is removed
with a screwdriver (fig 38)
In this manner, brake strips are released, and all
three shoes can be removed (fig 39)
Press pins out of shoes and check brake strips,
spring inside of shoes and 2
nd
speed clutch gear. At
first, assemble the 1
st
speed clutch as reversed
order of dismantling. Particular care should be
taken of brake shoes; they must protect each
other from falling out (fig 40)
Fix the main pin of the clutch spring fitting tool
with the thinner part facing upwards. The spring
joint must be placed in the middle of one shoe.
With the lever of the device, insert the spring into
the shoes groove (fig 41)
To assemble the 2
nd
speed clutch, turn the device
over. The clutch hub with gear must be placed in
the way the gear is on the bottom and the gap
between the two shoes fits with the pin. The
manner of mounting the spring is the same as
mentioned before for the 1
st
speed clutch (fig 42)
