ENGINE REMOVAL

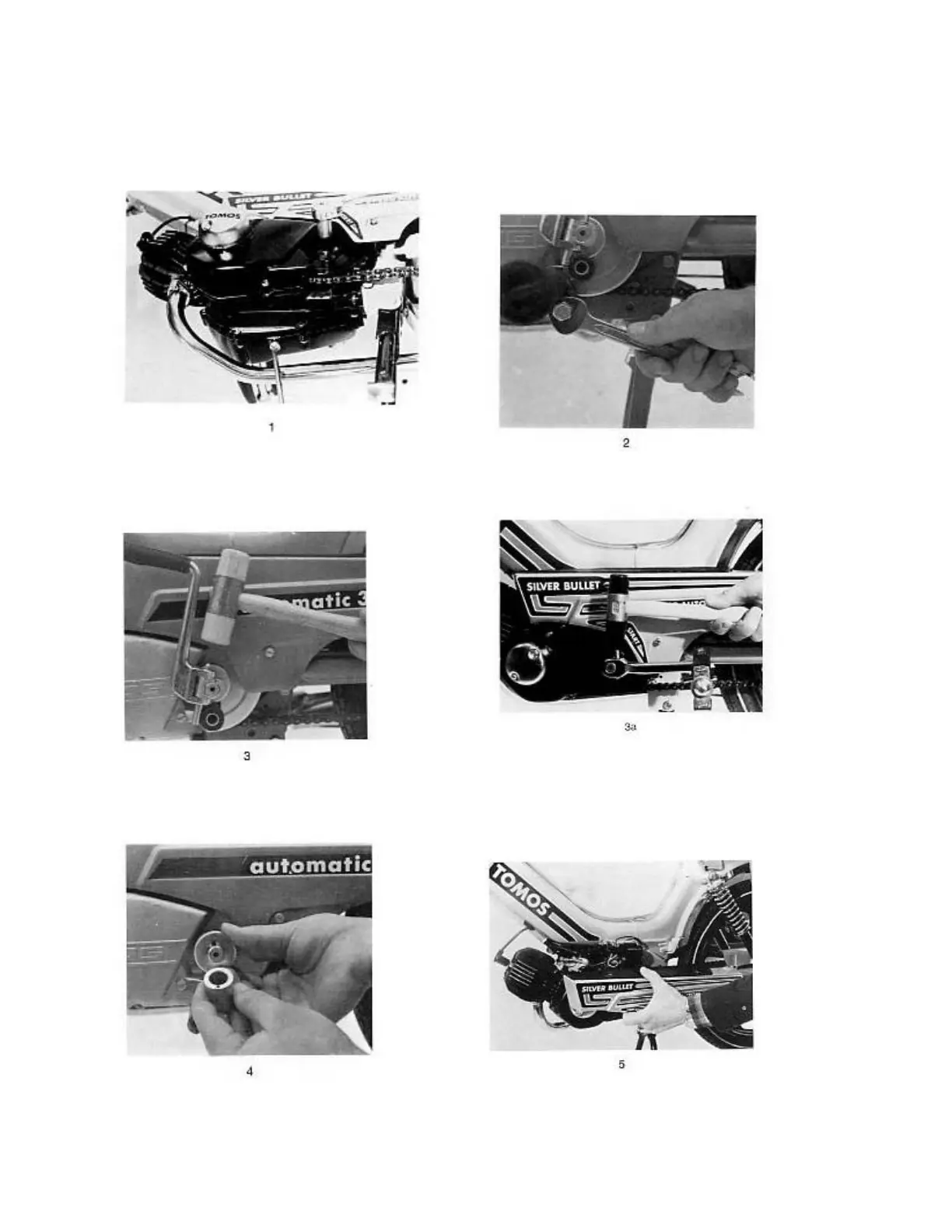

Drain the oil from the gearbox (fig 1)
Unscrew the footrest screw with 17mm wrench
(fig 2)
With 11mm wrench, unscrew the nut and drive
out lever pin (fig 3)
For pedal versions, refer to figures 3a and 4a
Remove the hub, cups and springs (fig 4)
Unscrew the three screws of LH and RH shield
each and detach shields from frame (fig 5)
