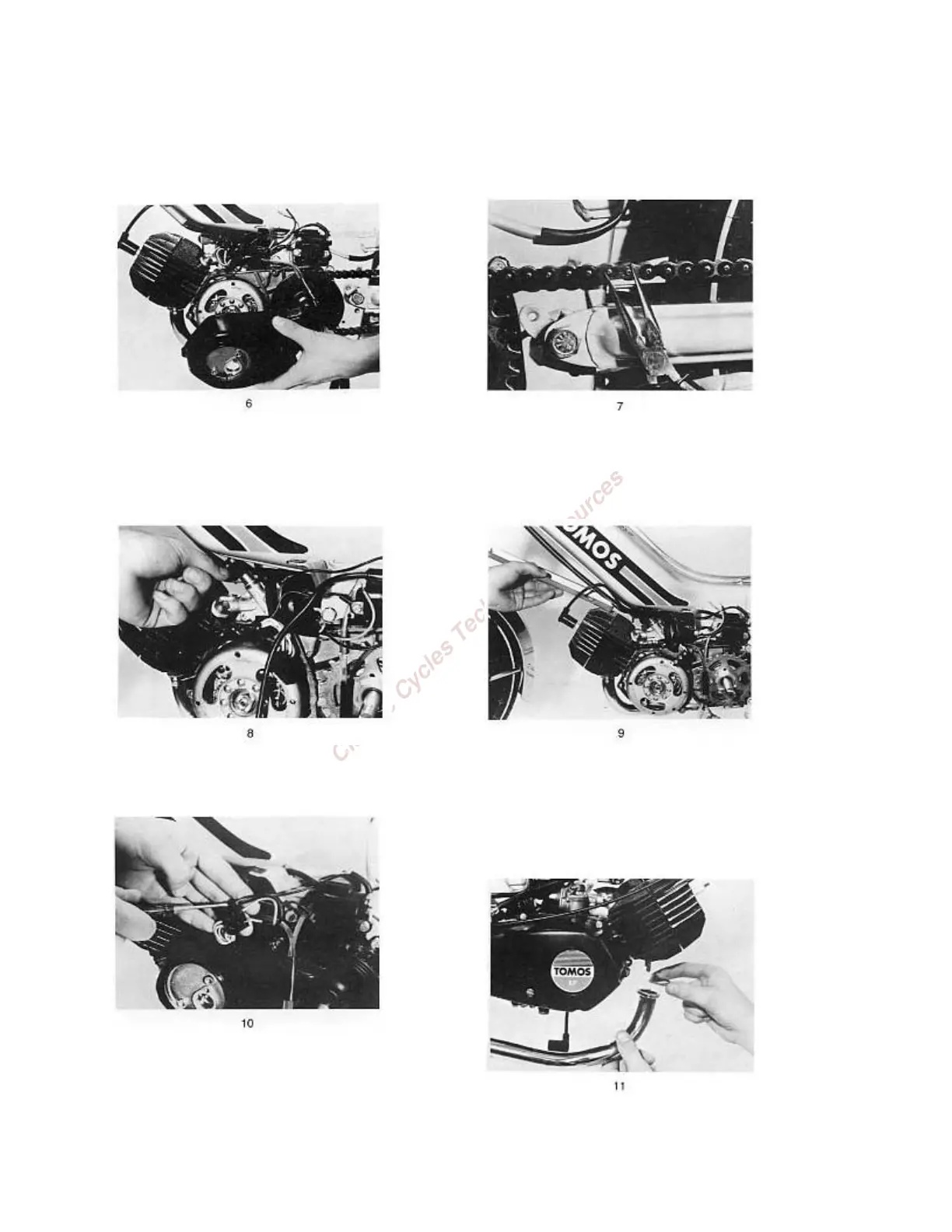

Unscrew three screws of magneto cover and
detach cover (fig 6)
For oil pump injection refer to chapter OIL PUMP
Remove the chain by removing master link (fig 7)
Unscrew the crown nut and extract control cable
along with throttle piston (fig 8)
Unscrew bottom screw on control cable cover and
release the spark plug cable (fig 9)
Detach all electrical leads (fig 10)
Remove fuel supply line. Remove the two exhaust
manifold bolts, the fixing screw, and remove the
exhaust silencer (fig 11)
