ENGINE DISASSEMBLY

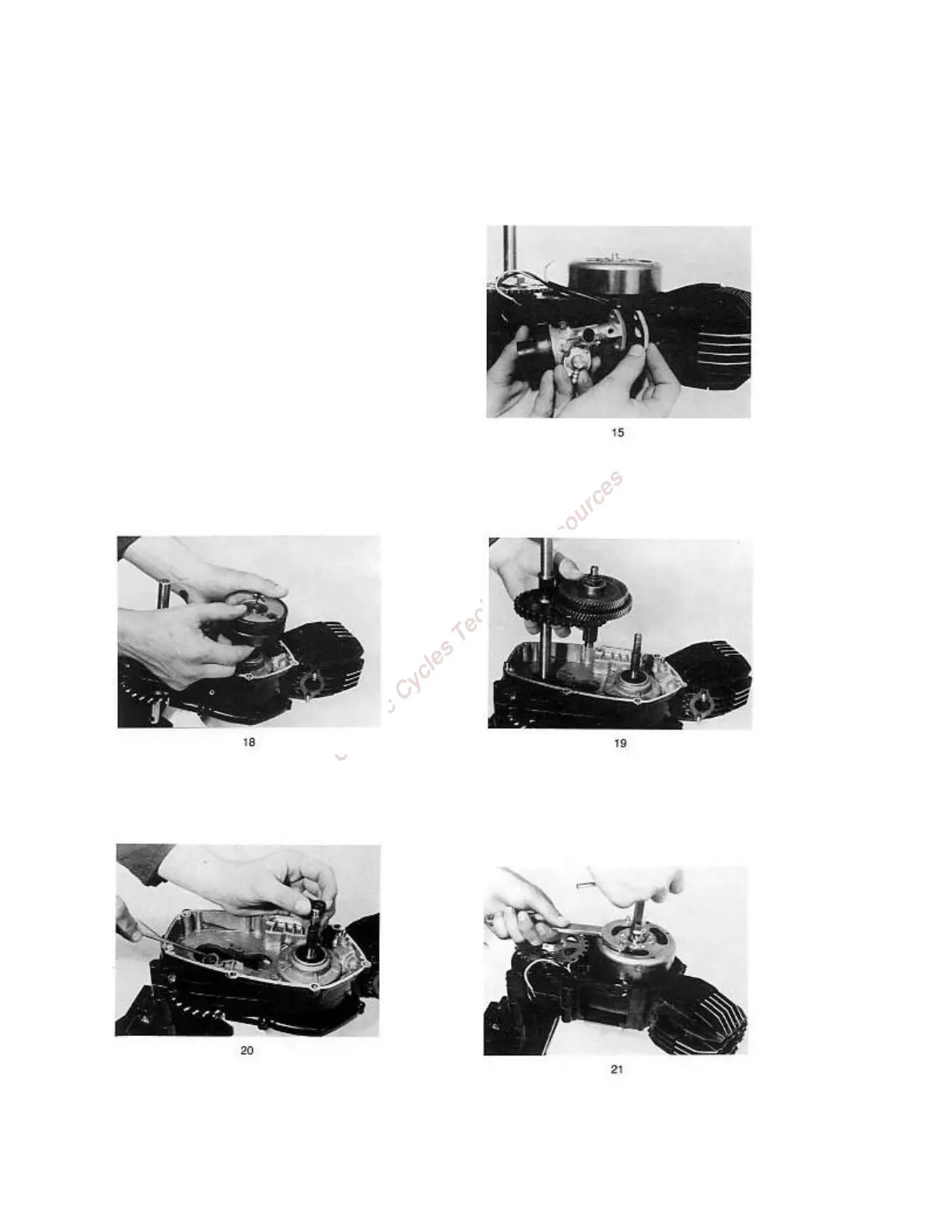

Place the engine on the repair stand (special tool).
Remove the carburetor and spark plug (fig 15)
Detach clutch drum and sintered bush (fig 18)
The pedal shaft and the countershaft are
connected by a starter chain, so both shafts will
have to be taken out together (fig 19)
Remove the standard washers on the crankshaft
and on the mainshaft (fig 20)
Rotate the engine placed on the stand so that the
flywheel magneto is on top. Using the flywheel
and clutch holding tool to hold the flywheel, use a
17mm socket to remove the flywheel nut (fig 21)
