18
CARBURETOR CHECKING
Dismantle the carburetor into component parts (fig 52 Encarwi or 52a Dellorto). Clean the parts with
carb cleaner and blow them out with compressed air. Check the parts. In case of wear throttle slide or
leakage of float, replace with a new one. When reassembling the carburetor, take care that the float
needle fits the float chamber cover. Slightly oil the air filter with light oil.

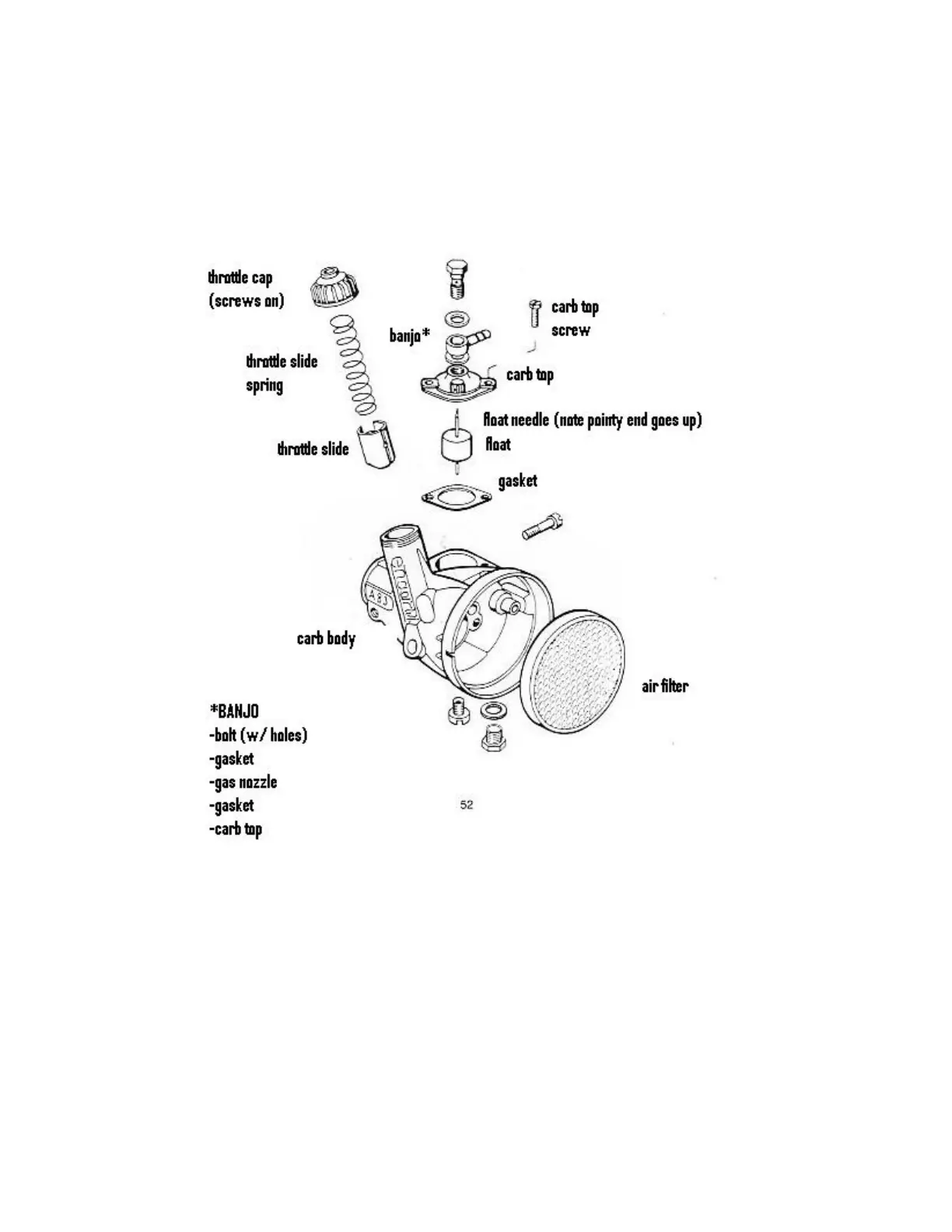

FIGURE 52 – ENCARWI CARBURETOR
