17
CHECKING PEDAL SHAFT (kickstart) AND TRANSMISSION CHAIN

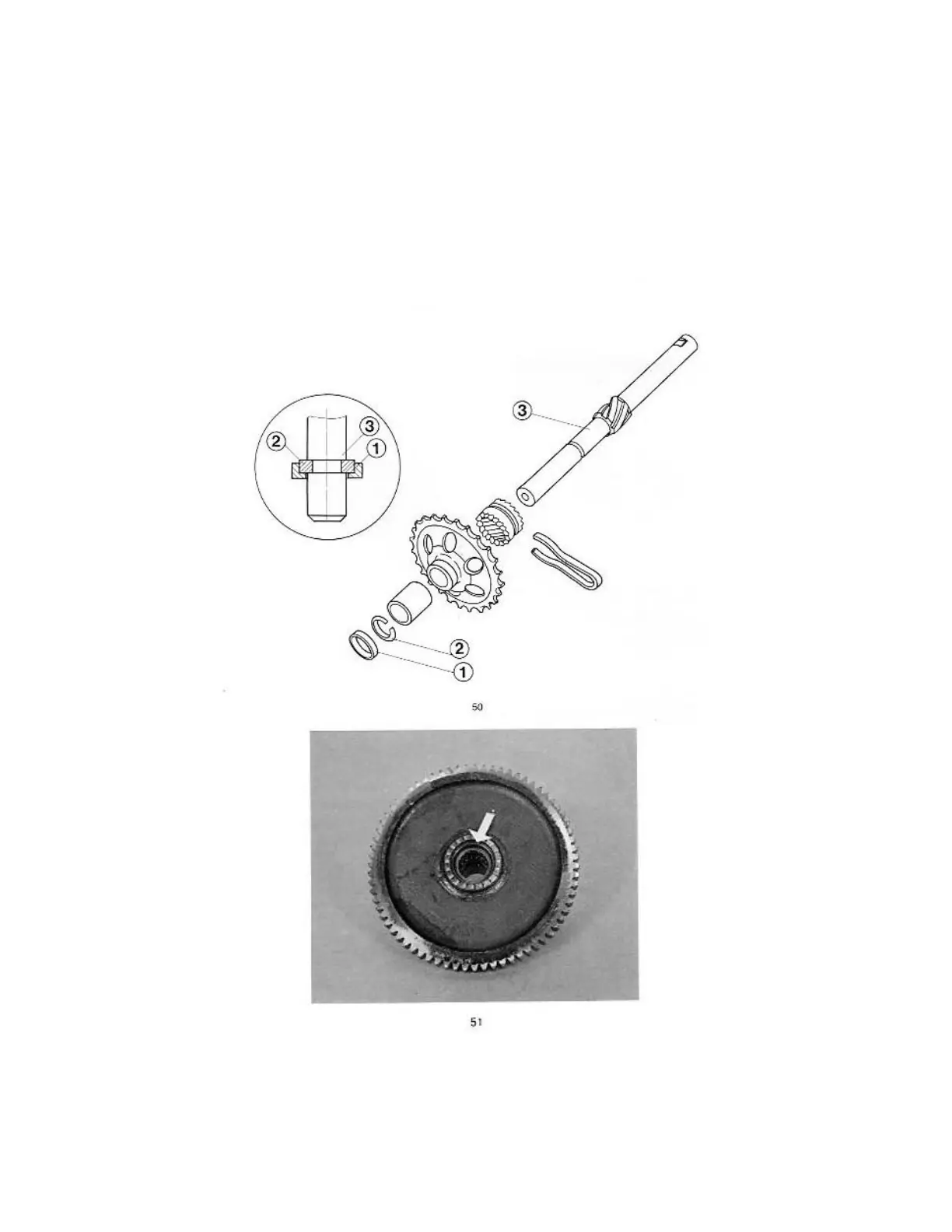

If it is necessary to replace the chain sprocket or claw collar on the pedal shaft or kick start, first rmove
the protective ring (fig 50/1) and the spring washer (fig 50/2). During assembly, take care that the
thinner part of the collar is mounted forward or else the brake spring will slide across the chain
sprocket. Check the chain for overtensioning or other damage. In case of damage, the needle bearings
in the main shaft should be replaced with a new complete main shaft (fig 51)
