16
Reassemble the countershaft in reverse order of
dismantling.
Use of grease is not suggested because it may
impede the function of the self-locking clutch.

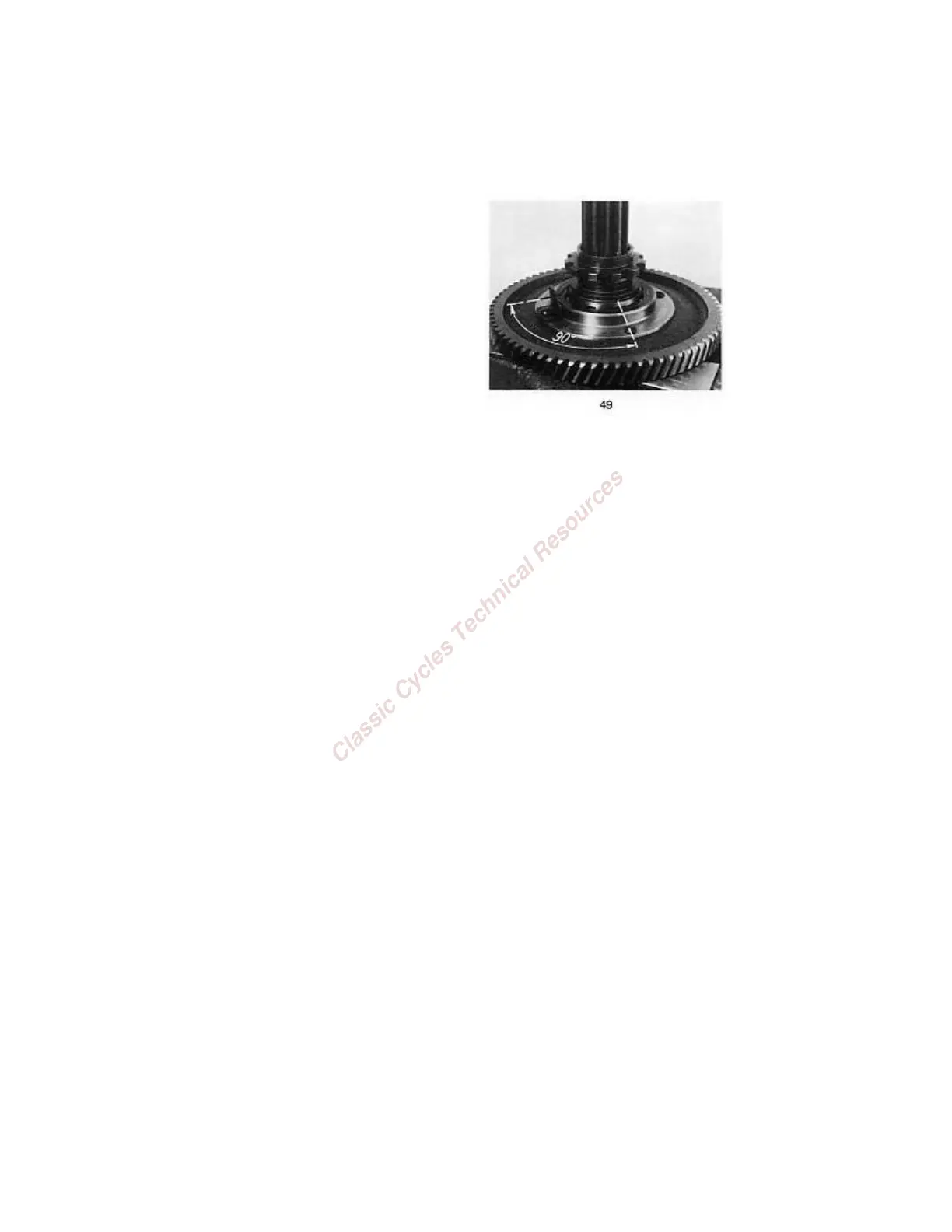

Put the chain sprocket in with cage so that the
beginning of the wire spring is turned 90 degrees
left-ward from the spring nose (fig 49). Lock the
wire spring to riveted nose on the 1
st
speed gear
