Signal measurement
1，PWM Signal measurement

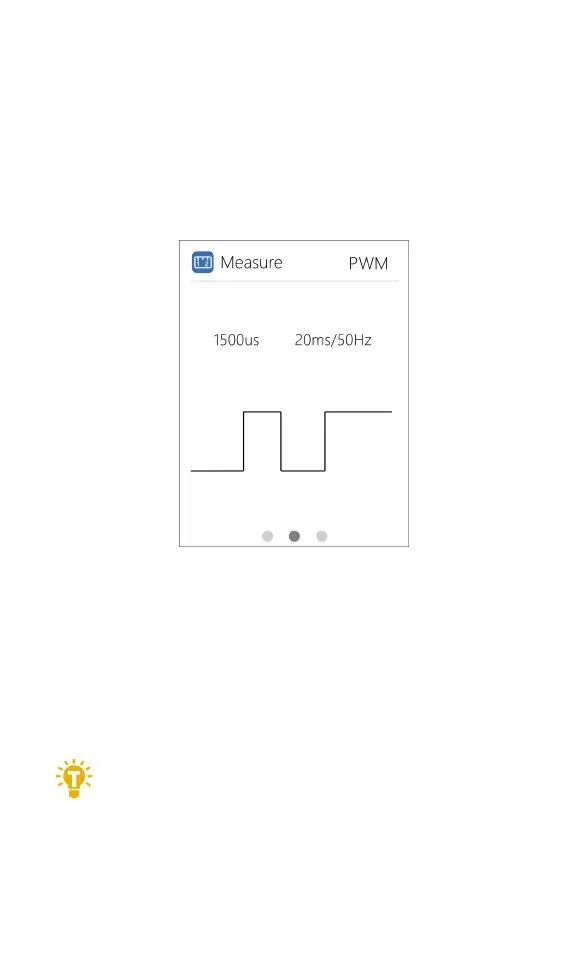

After the device powers on, scroll right once on the
metal roller to enter Measure mode. The page is
displayed as follows.
UI description
PWM: Signal type
1500：Current PWM pulse width
20ms/5Hz ： Current cycle and frequency of PWM
signal.
===================================
1 ， When using the signal measurement
function. The signal port, balance port, and main
input port can all supply power to the MC8.
===================================
