Signal output
1，PWM Signal output

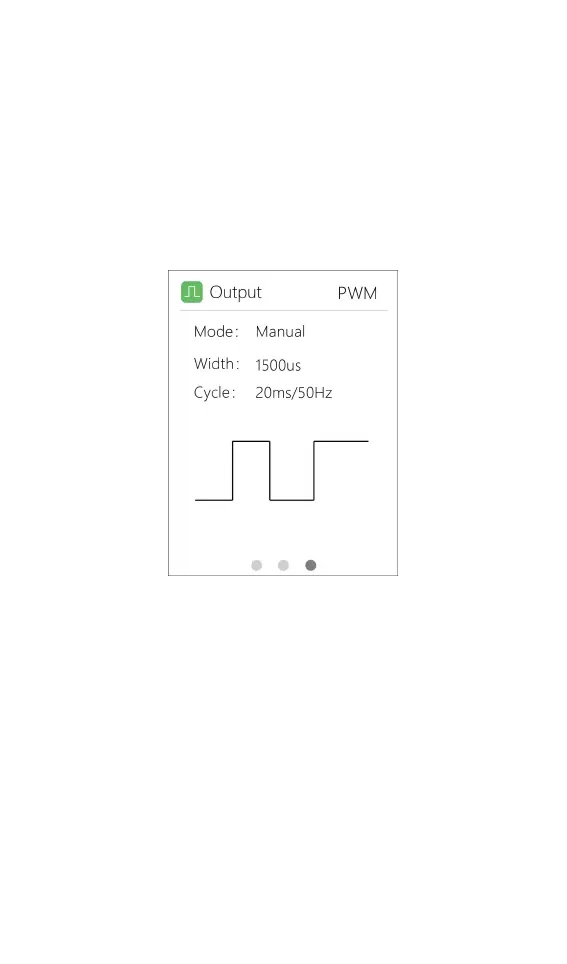

With the MC8 powered on, scroll right twice on the roller
to enter Output mode. Press down on the scroller for 2
seconds to enter the signal output mode, as shown
below. UI Description
Mode：Signal output mode- can be changed between
manual and 3 automatic modes of varying speeds.
Width ： PWM signal output pulse width, range limit
1000us-2000us. When set to manual, push the channel
output slider to change the output signal width. When
set to automatic, the signal width will automatically
increase or decrease.
Cycle ： PWM signal output cycle. Range adjustable
between 1ms-50ms.
