Top Photon - Step

Page 10
from STEP 11F
from STEP 11R
PA-CM2506BK-1
PA-CM2506BK-1
PA-CM2506BK-1
PA-CM2506BK-1
PA-CM0306BK-1
L
L
R
R
from STEP 10

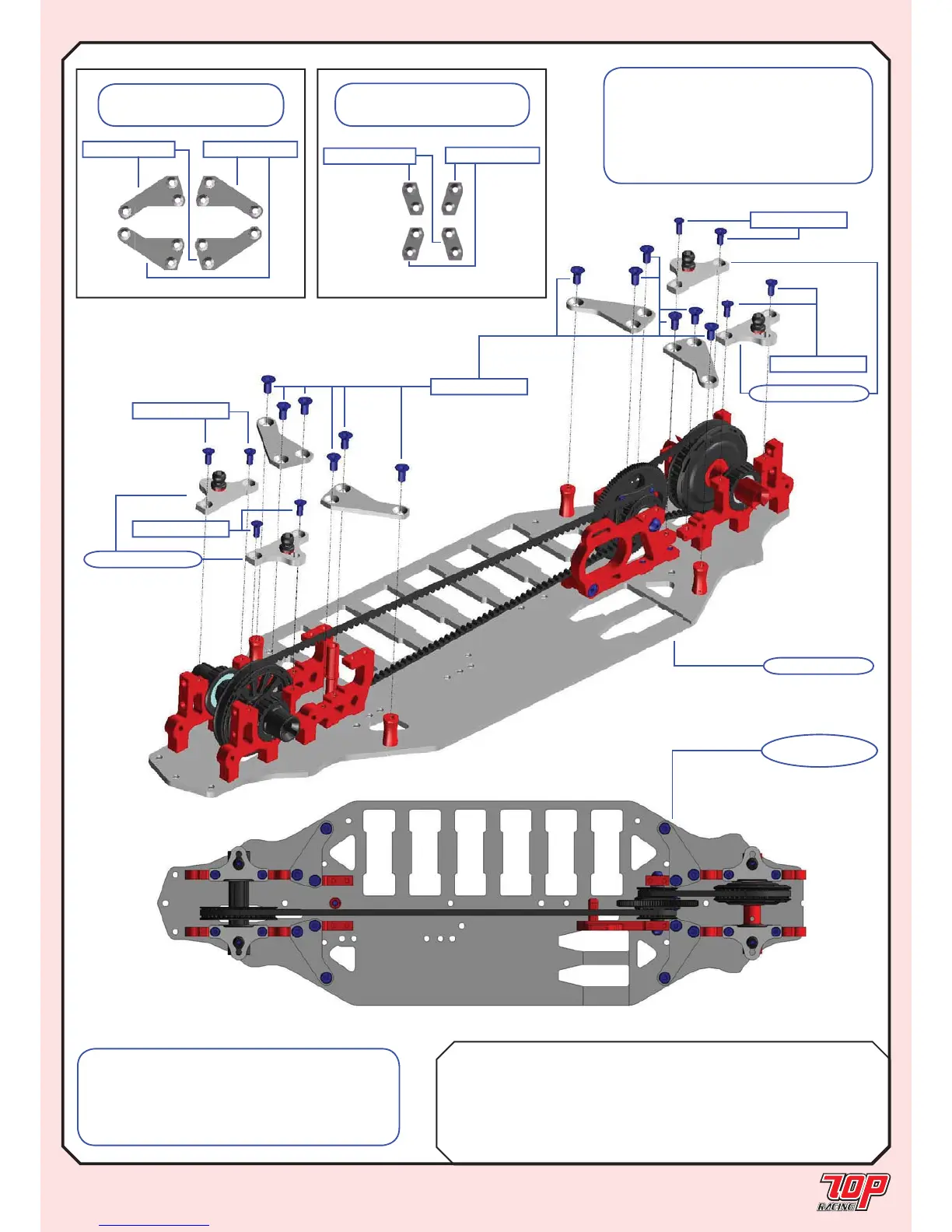

STEP 12
UPPER CHASSIS (con’d)
Rubber Foam
BAG F TC-PCH009-L-1 Rubber Wing L Soft (2.0mm) x 2
TC-PCH009-R-1 Rubber Wing R Soft (2.0mm) x 2
TC-PCH010-L-1 Foam Wing L Hard(2.0mm) x 2
TC-PCH010-R-1 Foam Wing R Hard (2.0mm) x 2
PA-CM0306BK-1 M3x6mm Countersunk Screw x 8 x 12
PA-CM2506BK-1 M2.5x6mm Countersunk Screw x 8 x 8
Note: Pay special attention to the parts
table. Not all parts on the list are needed to
complete this step, depending on whether your
kit is rubber asphalt edition or foam carpet
edition.
STEP 12
FINISHED
Note: The following fi gure shows
only the foam carpet wing installation.
Follow the orientations shown on
the boxes on your left for the wing
installation for the rubber asphalt and
foam carpet edition, respectively.
LR
R
L
TC-PCH010-L-1 TC-PCH010-R-1
Note: Wings for Foam
Carpet Edition
L
L
R
R
TC-PCH009-L-1
TC-PCH009-R-1
Note: Wings for Rubber
Asphalt Edition
