Page 8
STEP 09 (con’d)
MAIN CHASSIS (con’d)
BAG E TC-PDT006M-1 189mm Rear Belt x 1
TC-PDT007M-1 516mm Front Belt x 1
PA-BM0308BK-1 M3x8mm Button Head Screw x 2

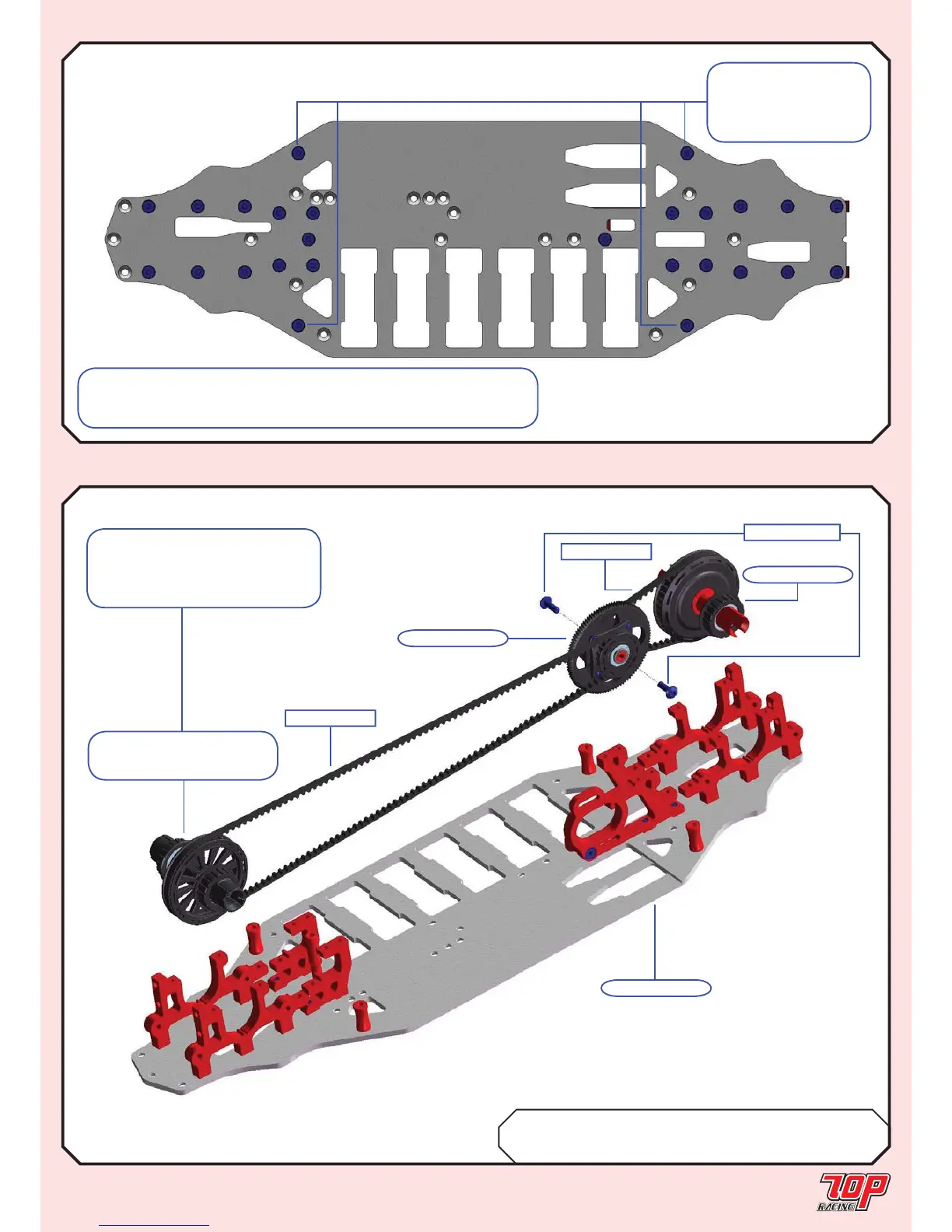

Note: To make sure all parts are assembled correctly, the
above fi gure shows how the bottom of the chassis looks like and
where the locations of the occupied screw holes should be.
Note: These screw
holes should only be
occupied by the foam
edition chassis.
STEP 10
TRANSMISSION
TC-PDT006M-1
from STEP 07
TC-PDT007M-1
PA-BM0308BK-1
from STEP 04
Rubber Edition: from STEP 03
Foam Edition: from STEP 04
from STEP 09
Note: The front pulley should
be a spool for the rubber asphalt
edition and a differential for the
foam carpet edition.
To Next Page
