Top Photon - Step

Page 7

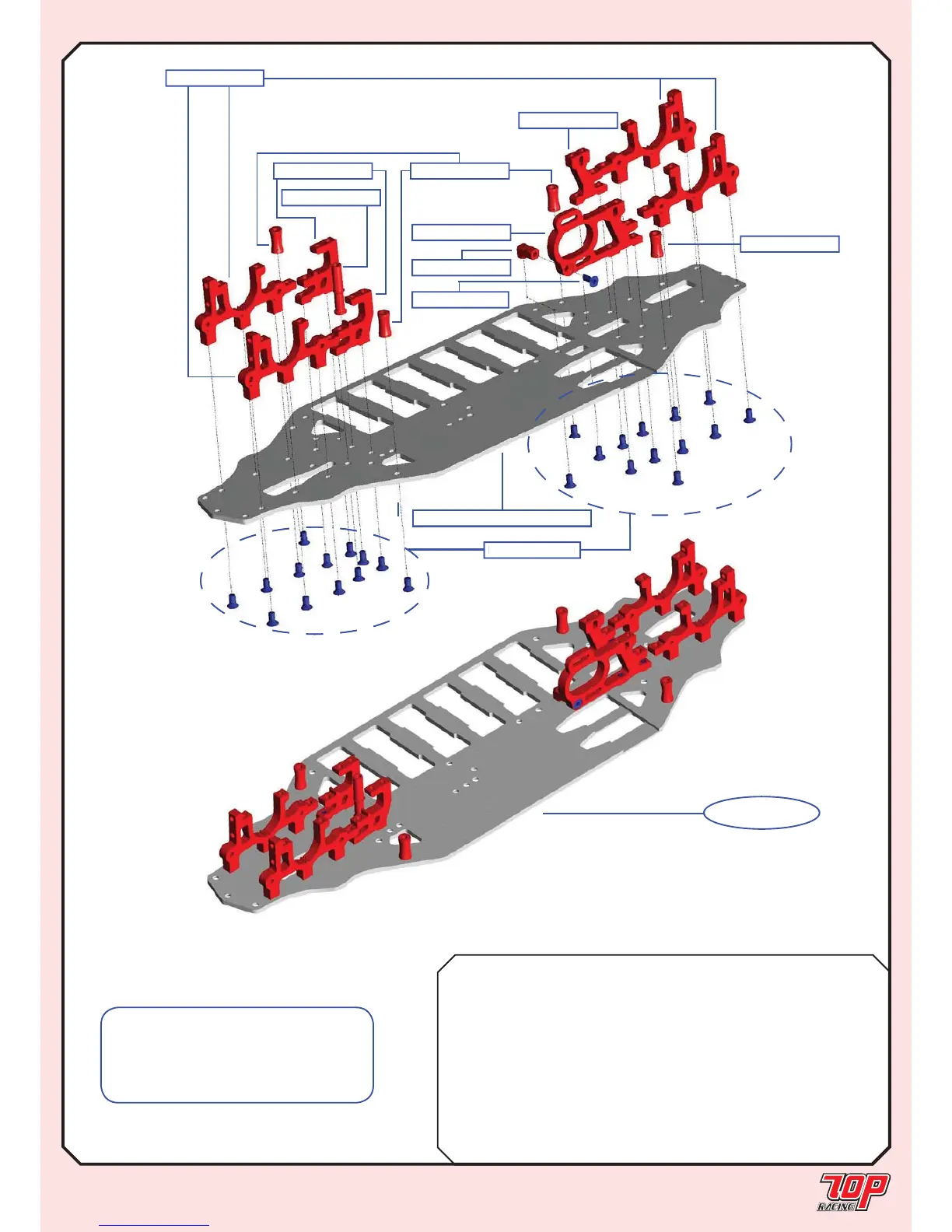

STEP 09
MAIN CHASSIS
Rubber Foam
BAG D TC-PCHC001-1 6-cell Rubber Chassis (2.5mm) x 1
TC-PCHS002-1 6-cell Foam Chassis (3.0mm) x 1
TC-PCH011RD-1 Bulkhead x 4 x 4
TC-PCH012RD-1 Steering Mount Plate x 2 x 2
TC-PCH013RD-1 Motor Plate x 1 x 1
TC-PCH014RD-1 Motor Plate Support x 1 x 1
TC-PCH015RD-1 Mount Plate x 1 x 1
TC-PCH017RD-1 Steering Post x 1 x 1
TC-PCH016RD-1 Standoff Post (12mm) x 4
PA-CM0306BK-1 M3x6mm Countersunk Screw x 22 x 26
PA-CM0308BK-1 M3x8mm Countersunk Screw x 1 x 1
Note: Pay special attention to the
parts table. Not all parts on the list are
needed to complete this step, depending
on whether your kit is rubber asphalt
edition or foam carpet edition!!
TC-PCHC001-1/ TC-PCHS002-1
TC-PCH011RD-1
TC-PCH012RD-1
TC-PCH013RD-1
TC-PCH014RD-1
TC-PCH015RD-1
TC-PCH017RD-1
TC-PCH016RD-1
PA-CM0306BK-1
PA-CM0308BK-1
TC-PCH016RD-1
PA-
C
M0
3
06BK-
1
STEP 09
FINISHED
