Top Photon - Pa-Fn00 M3-1 Pa-Cm0306 Bk

Mold N-02-1
Mold N-01-1
Mold N-03-1
Mold N-04-1
PA-FN00M3-1
PA-FN00M3-1
Mold N-03-1
PA-BM0306BK-1
PA-BM0306BK-1
PA-CM0306BK-1
PA-CM0310BK-1
PA-CM0310BK-1
Page 26

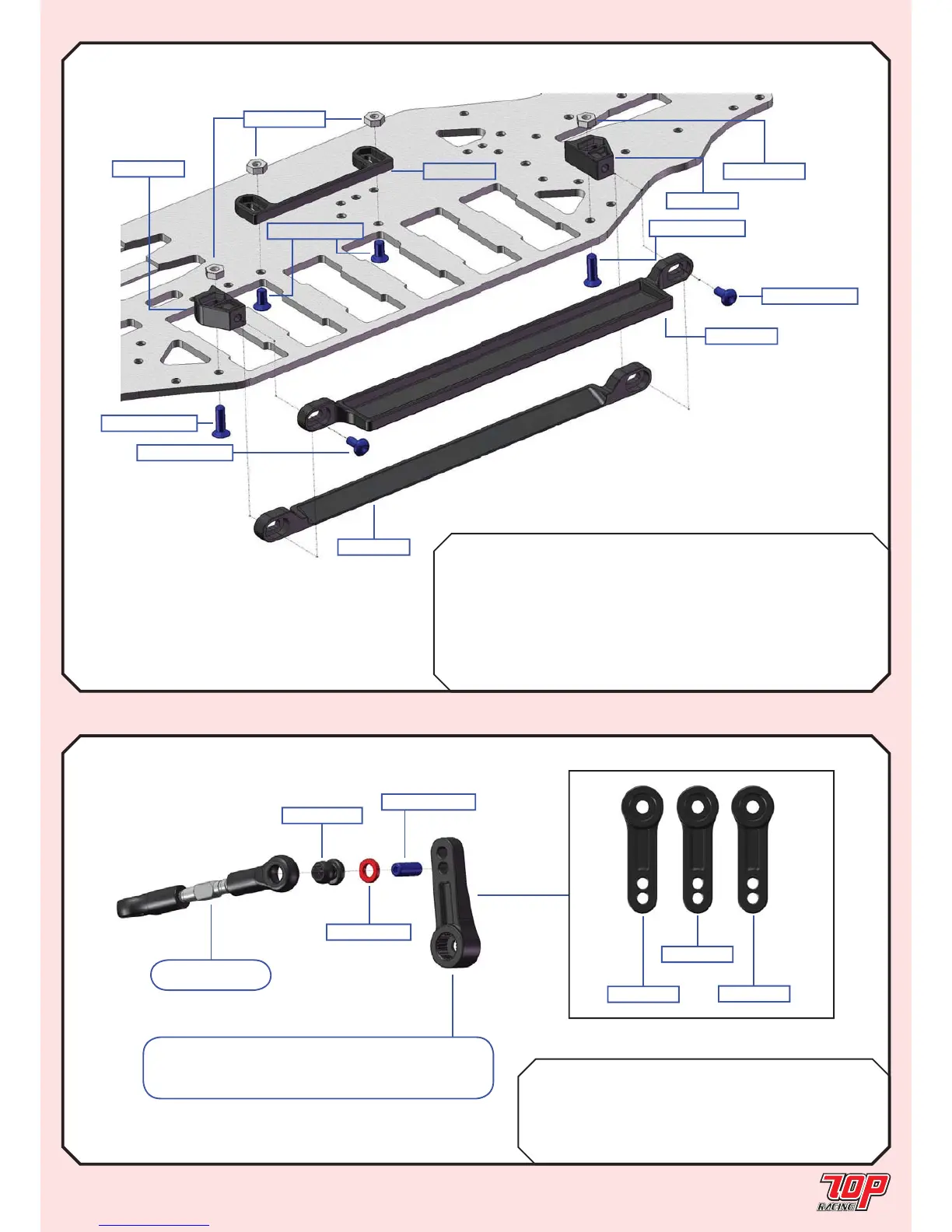

LIPO / SUB-C BATTERY GUARD & WEIGHT TRAY
STEP 35
LiPo Sub-C
BAG K Mold N-01-1 Lipo Battery Brace x 1
Mold N-02-1 Sub-C Battery Brace x 1
Mold N-03-1 Lipo Mount x 2 x 2
Mold N-04-1 Lipo Positioner x 1 x 1
PA-FN00M3-1 M3 Nut x 4 x 4
PA-BM0306BK-1 M3x6mm Button Head Screw x 2 x 2
PA-CM0306BK-1 M3x6mm Countersunk Screw x 2 x 2
PA-CM0310BK-1 M3x10mm Countersunk Screw x 2 x 2
SERVO HORN & LINKAGE
STEP 36
BAG L Mold P-01-1 Servo Arm - Futaba x 1
Mold P-02-1 Servo Arm - Hitech x 1
Mold P-03-1 Servo Arm - KO/Sanwa x 1
PA-HBS003-1 5.3mm Ball (Steel) x 1
AW-S100RD-1 3 x 5.5 x 1.0mm Collar x 1
PA-SS0308BK-1 M3x8mm Set Screw x 1
STEP 23B
Servo Tie Rod
PA-HBS003-1
AW-S100RD-1
PA-SS0308BK-1
Mold P-01-1
Mold P-02-1
Mold P-03-1
FKH
Note: Choose the correct servo arm for your
servo arm manufacturer. Refer to the part list and
fi gure on your right.
