Top Photon - Page 27

from STEP 36
PA-BM0306BK-1
Mold P-04-1
Mold P-04-1
AW-BW31RD-1
PA-CM0308BK-1
PA-CM0306BK-1
Page 27

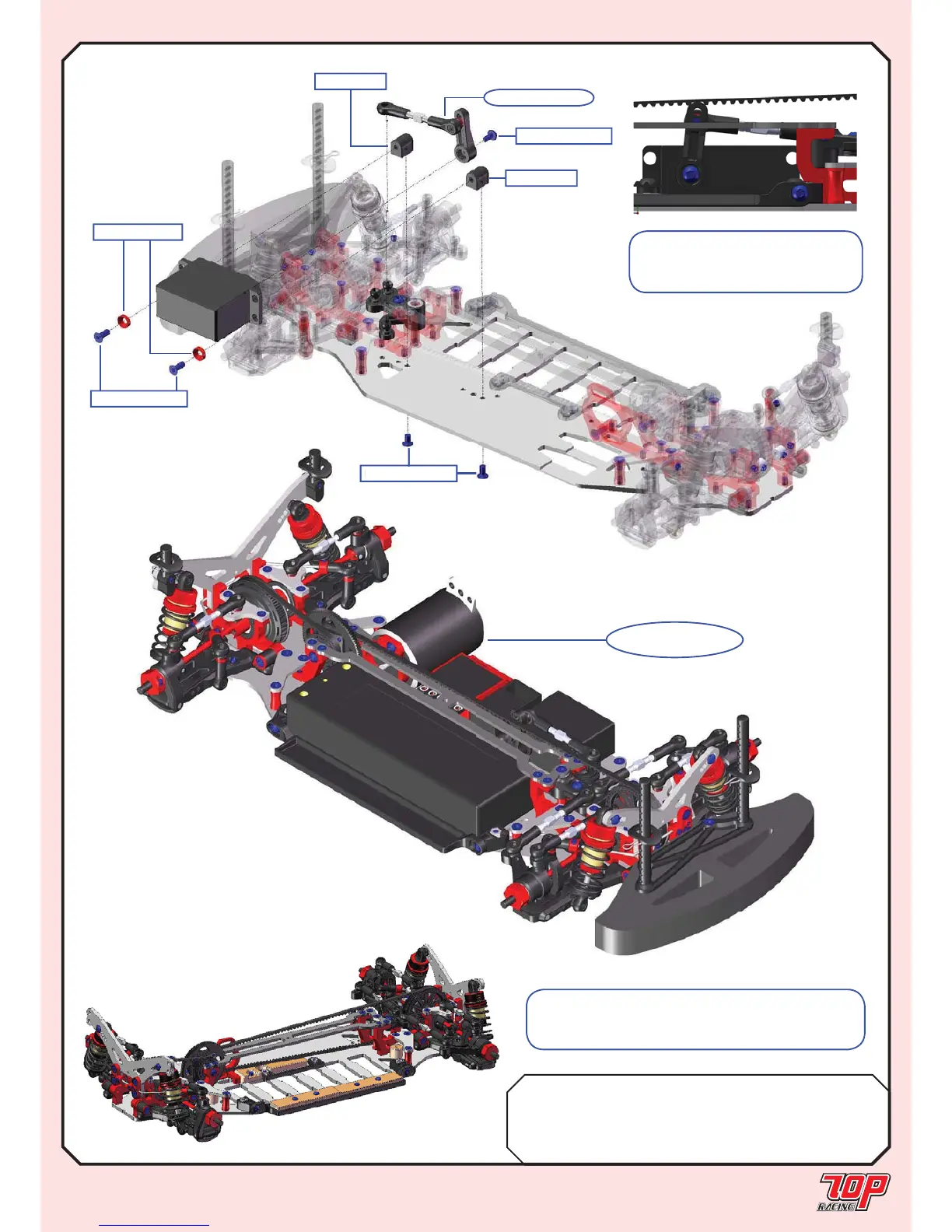

SERVO ARM & LINKAGE (cont’d)
STEP 37
BAG L Mold P-04-1 Servo Mount - Large x 2
AW-BW31RD-1 Bevel Washer (Red) x 2
PA-BM0306BK-1 M3x6mm Button Head Screw x 1
PA-CM0306BK-1 M3x6mm Countersunk Screw x 2
PA-CM0308BK-1 M3x8mm Countersunk Screw x 2
Note: The servo tie rod should
form a right angle with the servo
arm for proper steering balance.
Note: The fi gure on the left shows the Photon
with our customized brass balancing weight.
These are purchased separately.
P
A-
C
M
0306
BK-
1
Your Photon
is ready to race!!
