Page 6

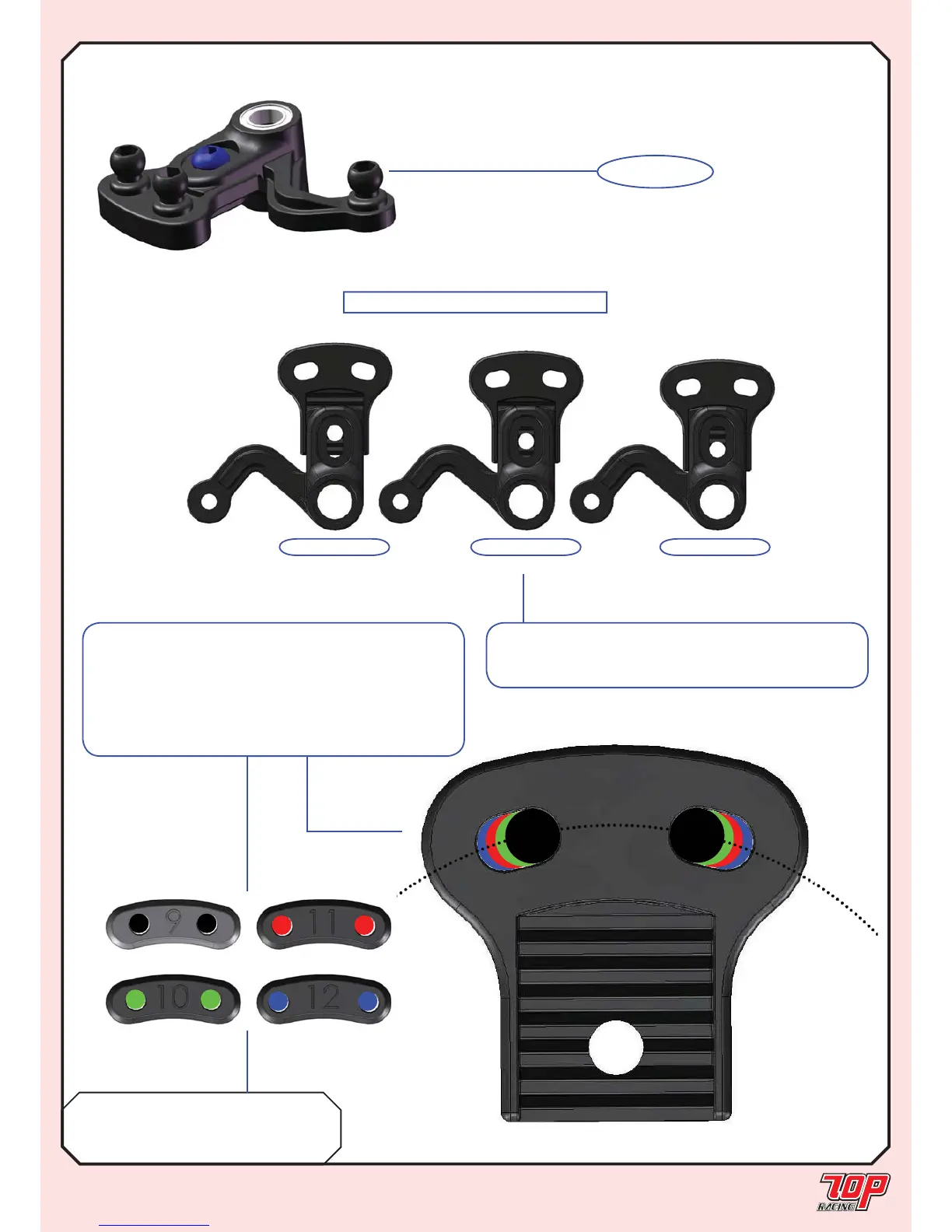

STEERING CRANK (cont’d)
STEP 08 cont’d
BAG C Mold I-03-1 BCE Insert #9 x 1
Mold I-04-1 BCE Insert #10 x 1
Mold I-05-1 BCE Insert #11 x 1
Mold I-06-1 BCE Insert #12 x 1
STEERING GEOMETRIES
Position A Position CPosition B
Note: Length Adjustments
There are a total of 3 steering lenght positions as shown
above. Use Position C as the initial setup.
Note: Radial Adjustments
This is our latest innovation of steering geometry
adjustment. By using the following inserts, the steering
width could be adjusted radially with minimal change in
radial steering length. This would isolate the steering
geometry change created by the steering length
adjustment described in the Length Adjustments.
STEP 08
FINISHED
