2.3 Battery Level Indicator
The battery power indicator shows the level of battery strength.
2.4 Vertical Angle Tilt Correction
(DT-205/205L only)
When the tilt sensor is activated, automatic correction of vertical angle for
mislevelment is displayed. To ensure a precise angle measurement, tilt sen-
sors must be turned on. If the "b" display appears the instrument is out of
automatic compensation range and must be leveled manually.
In case the instrument is used in an unstable situation, constant indexing of
vertical angle may be impossible. In this case, the function of tilt correction
can be stopped.
To stop the function of tilt correction, refer to Chapter 6 “SELECTING
MODE”.
2.5 Serial Signal RS-232C Connector
(DT-205/205L only)
Serial signal connector is used for connecting the DT-205/205L with a com-
puter, which enables the computer to receive measurement data from the
DT-205/205L.
Measurement is possible.
Measurement is impossible.
Need to recharge or replace the
battery.
1) The battery operating time will vary depending on the environmental
conditions, such as ambient temperature etc. It is recommended for
safety to prepare spare batteries.
2) For general usage of battery, see chapter 7 “HANDLING POWER
SOURCE”

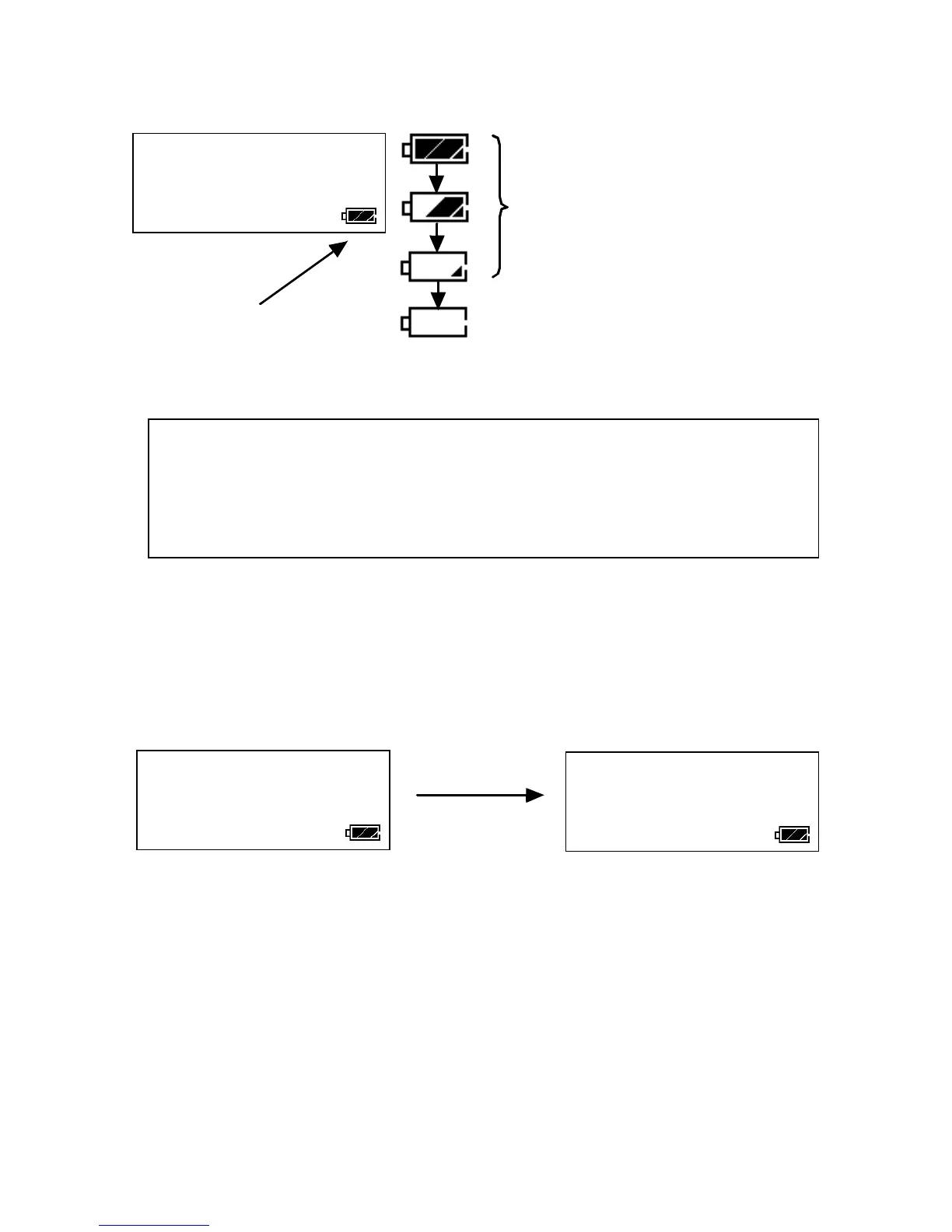

Battery Power
Remaining Display
V 90°10’20”
TILT
HR 123°40’50”
Out of the tilt
correction range
V 90°10’20”
TILT
HR 123°40’50”
V b
TILT
HR 123°40’50”
To Next Page
