26
4 HOW TO OPERATE THE LASER
(DT-205L/207L/209L only)
1
Collimate a target.
2
Press the laser power
switch.
The laser beam will
emit and the green
lamp will illuminate.
WARNING
Aiming the instrument into prism or highly reflective sur-
face can result in serious damage to your eye because the
optical axis and laser beam source is in coincidence.
Do not aim the instrument directly into prism or highly reflective sur-
face.
Do not look at the laser beam directly.
•Laser beams can be dangerous, and can cause eye injury's
if used incorrectly.
Never attempt to repair the instrument yourself.

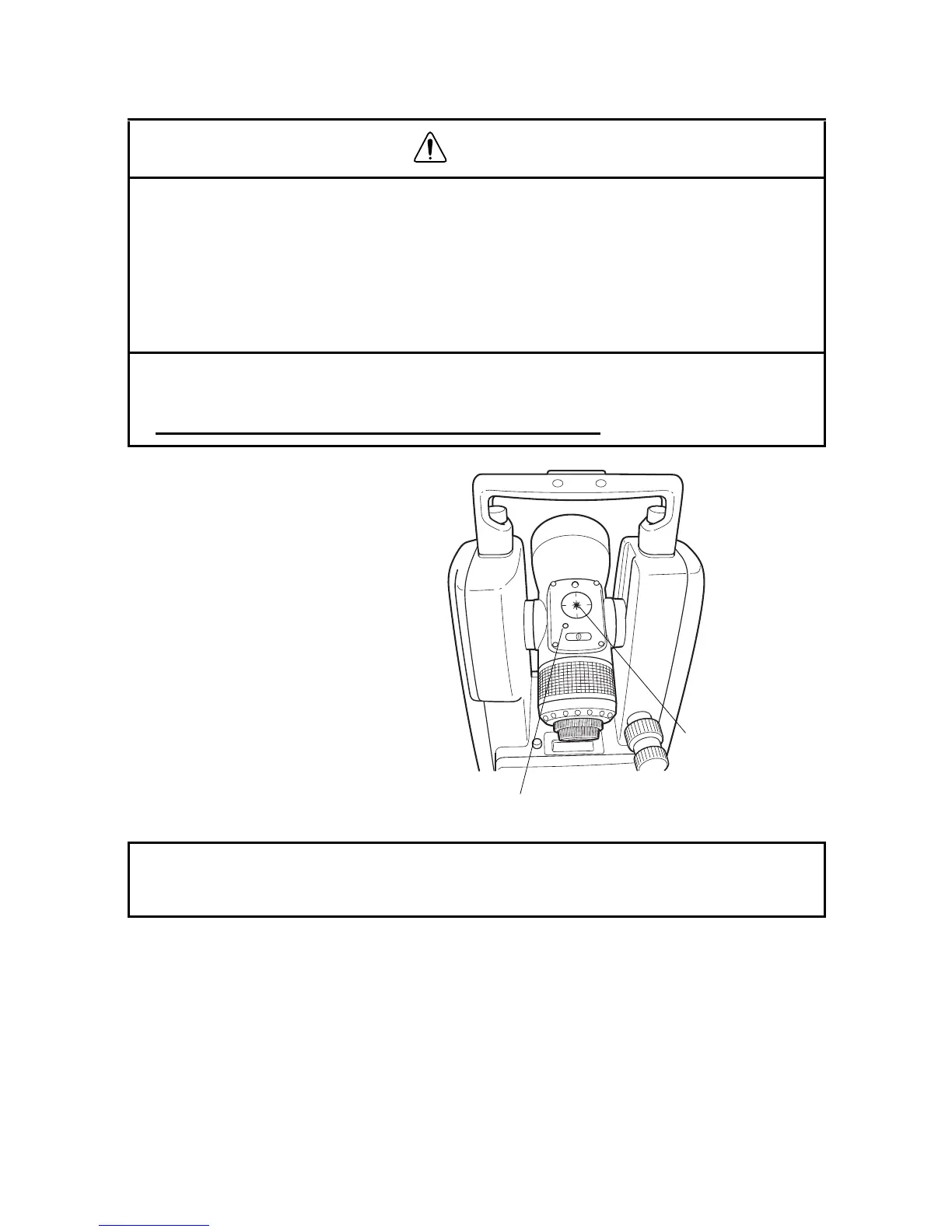

ON/OFF
Laser power
switch
Green lamp
DT-205L/207L/209L are so designed as to provide the telescope and
laser beam with simultaneous focussing to give the minimum spot.
