4 STANDARD MEASUREMENT MODE
4.3.4 Distance Measurement (Continuous Measurement)
Make sure the mode displays angle measurement
.
1
Collimate the center of prism.
2
Press the [ ] key.
*1),*2)
[Example]:

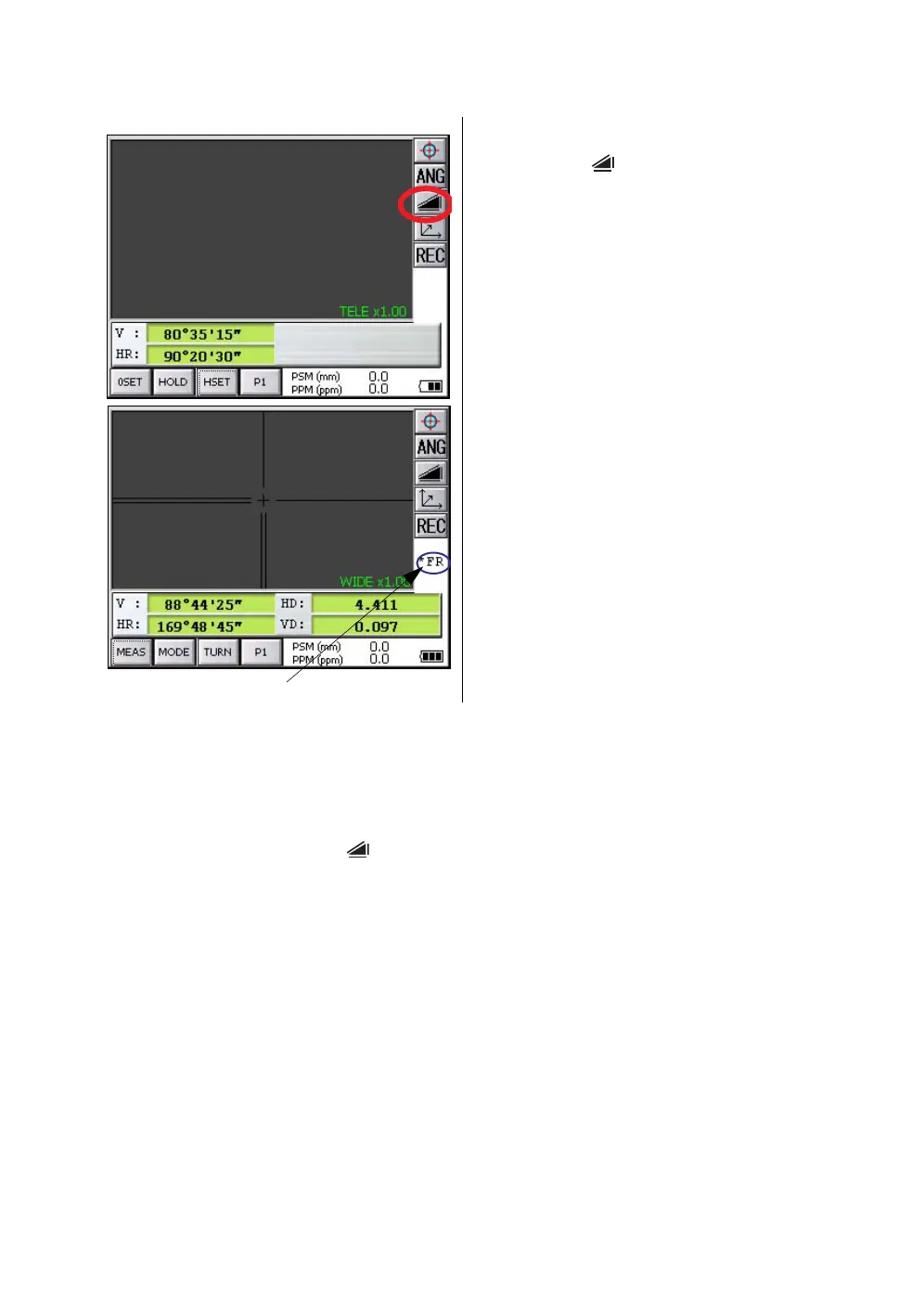

Horizontal distance / Relative elevation mode
The result are shown.*3) ~ *7)
*1)The following characters will be shown on the 4th line right hand of the display to represent measurement
mode.
F=Fine; C=Coarse1mm; c=Coarse10mm; R=Continuous (Repeat); S=Single; N=N-times
*2)When EDM is working, the " *" mark appears in the display.
*3)The result is shown with buzzer sound.
*4)Measurement may repeat automatically if the result is affected by shimmer etc..
*5)To change single measuring, press the [MEAS] key.
*6)To change SD/HD&VD, press the [ ] key.
*7)To return to the angle measurement mode, press the [ANG] key.
