Battery Installation and Replacement

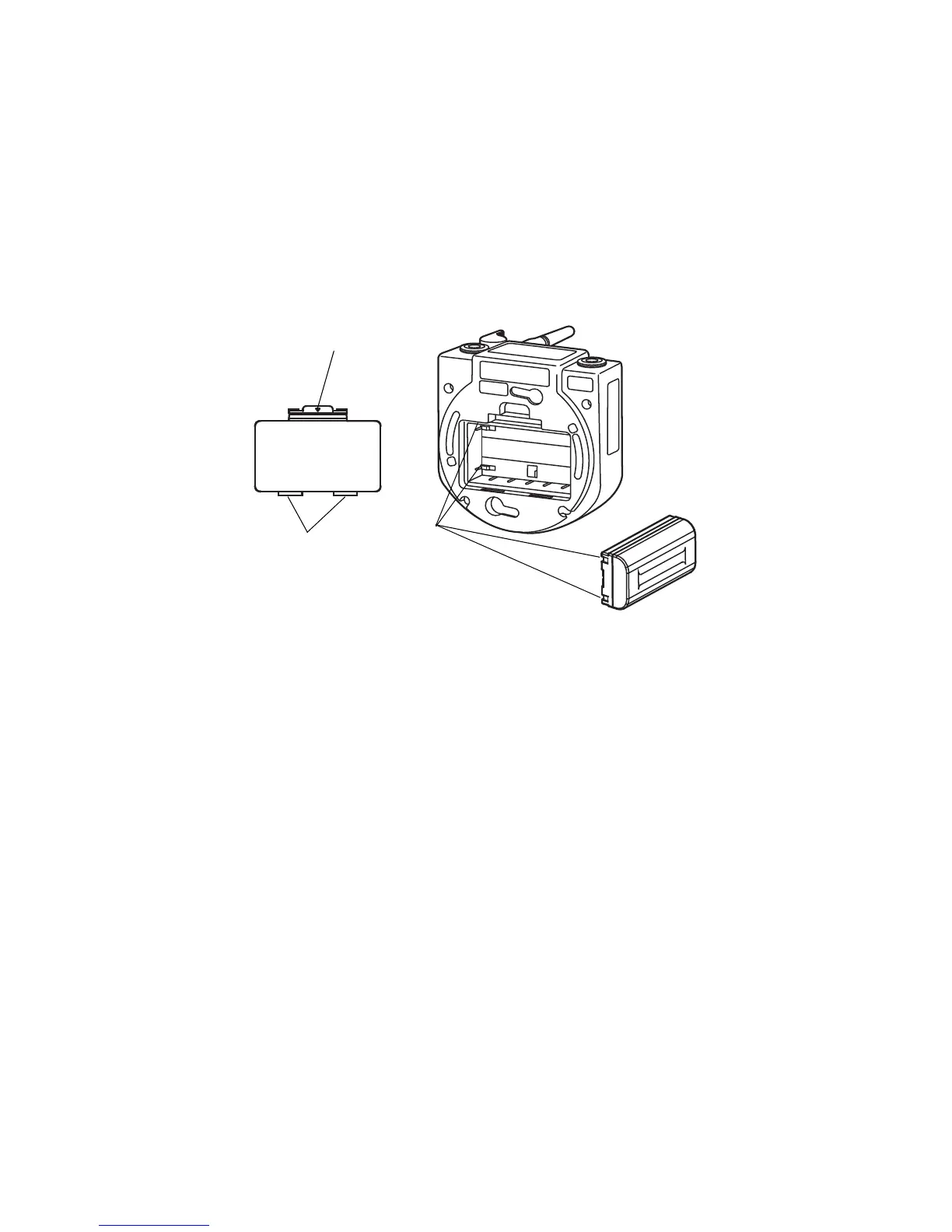

1 Push down the battery cover lug to unhook it, and remove the cover.
2 Insert Battery BT-66Q in the direction matching connection points as shown in the illustration.
3 Mount two lugs on the RC-4R.
4 Push the battery cover lug down until the cover is locked.
Connection
points
Battery cover
Lug
Battery cover lug
BT-66Q
