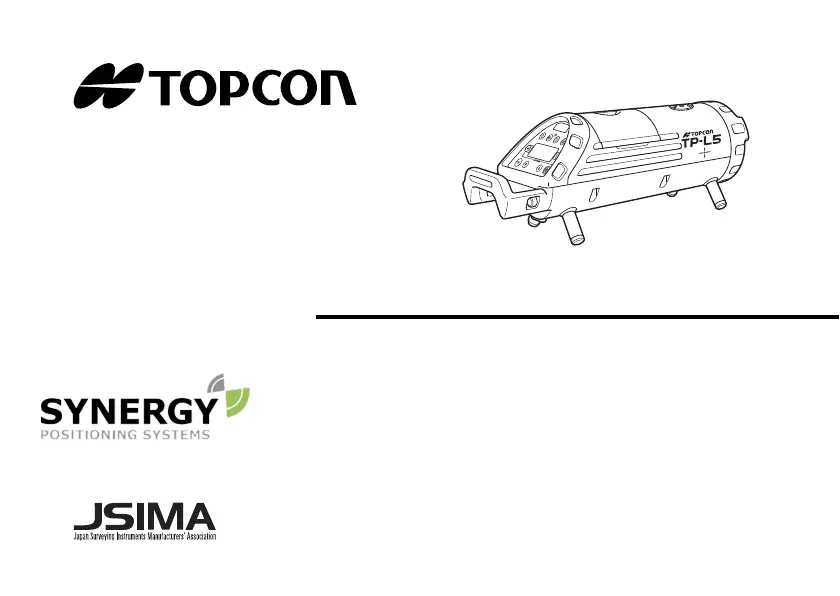

INSTRUCTION MANUAL
PIPE LASER
32956 90092
TP-L5 SERIES
TP-L5GV
TP-L5G
TP-L5BG
TP-L5AV
TP-L5A
TP-L5B
For more information contact Synergy Positioning Systems or
visit the Synergy Positioning Systems website at www.synergypositioning.co.nz
All branches: Phone 0800 867 266 Email: info@synergypositioning.co.nz

Table of Contents

Questions and Answers

  • E
    emartinAug 14, 2025
    Why Topcon Measuring Instruments laser beam does not emit?
    • M
      Manuel YoungAug 14, 2025
      The laser beam might not be emitting due to several reasons: * The battery level could be low. In this case, recharge or replace the batteries. * There might be an improper connection to an external power source. Ensure the connection is secure and attached to the correct terminals. * The laser might be turned off via the remote controller. Push the laser ON/OFF switch on the remote controller to turn it on.
  • B
    Brian WalterAug 17, 2025
    What does it mean if the charging lamp of the internal battery BT-53Q is blinking slowly when connected to the DC-12V external battery on Topcon TP-L5GV?
    • C
      crawfordjeanAug 17, 2025
      A slowly blinking charging lamp on the internal battery BT-53Q when connected to a DC-12V external battery indicates a potential issue: * The charging temperature may be out of range. Recharging should occur between 10 to 35°C (50 to 95°F). * The battery BT-53Q may be completely discharged. Continue charging for 30 minutes. If the lamp changes to red, the battery is normal. If it continues blinking green, the battery is faulty and needs replacement. Always dispose of old batteries properly.
  • D
    Douglas WebbAug 21, 2025
    What to do if Topcon TP-L5GV laser beam emits but grade setting is not possible?
    • B
      butleramandaAug 21, 2025
      If the laser beam emits, but you cannot set the grade, consider the following possible causes: * The instrument may be in lock mode. Press the lock key on the instrument to release the lock function. * The entered value might be outside of the grade range. Ensure that the grade entry is within the range of 15 to 40%. * The instrument could be tilted beyond the self-leveling range, indicated by a blinking Level Warning Indicator. Reposition the instrument until the level warning indicator disappears. * The battery level may be low. Recharge or replace the batteries.
  • N
    Nathan WillisAug 25, 2025
    Why is the laser beam blinking on my Topcon TP-L5GV Measuring Instruments?
    • A
      Adam LyonsAug 25, 2025
      A blinking laser beam on your Topcon Measuring Instruments usually indicates one of two issues: * The instrument is tilted beyond its self-leveling range, causing the Level Warning Indicator to blink. Reposition the instrument until the indicator disappears. * Shock or vibration is causing instability. Eliminate the source of the disturbance.
  • D
    Danielle HernandezAug 27, 2025
    How to fix Topcon TP-L5GV remote control that does not function?
    • D
      duane64Aug 27, 2025
      If the remote control is not functioning, check these potential causes: * The instrument might be in lock mode. Press the lock key on the instrument to release the lock function. * The remote control's battery power may be low. Replace the batteries.
  • B
    Brenda WilliamsAug 30, 2025
    What to do if Topcon TP-L5GV Measuring Instruments laser beam emits but line setting is not possible?
    • E
      Erica BakerAug 31, 2025
      If the laser beam emits but line setting isn't possible: * The instrument may be in lock mode. Press the lock key on the instrument to release the lock function. * The laser beam might have reached the limit of its line adjusting range. Center the line adjustment and aim the instrument so the laser is roughly aimed at the target.
  • B
    bakerchaseSep 3, 2025
    Why the grade setting value of the TP-L5 and the measured grade value are not equal on Topcon TP-L5GV?
    • K
      Kevin DavisSep 3, 2025
      If the grade setting value and the measured grade value are not equal, consider these possibilities: * An incorrect grade value may have been entered. Confirm the input value (‰ or %) and reset it. * The bubble on the bubble tube display of the instrument or the bubble on the target was not adjusted correctly. Adjust the laser and/or target so the bubble is centered. * The laser beam is refracted due to temperature differences within the pipe. When the pipe is laid, the trench must be backfilled immediately to help maintain temperature stability. Use a blower (commercially-available) to move air through the pipe to keep temperature.
  • P
    parkeramySep 6, 2025
    Why is the laser beam unstable in my Topcon TP-L5GV Measuring Instruments?
    • D
      Derek HoltSep 6, 2025
      An unstable laser beam could be caused by: * Refraction due to temperature differences within the pipe. When the pipe is laid, the trench must be backfilled immediately to help maintain temperature stability. * Refraction and reflection due to fog and/or mist. Use a blower to move air through the pipe to blend the air and remove mist or fog. You can also cover the pipe to prevent heat build up inside the pipe or clear the mist or fog.
  • S
    Sara ThomasSep 9, 2025
    Why does the laser position shift over time with Topcon TP-L5GV?
    • G
      gomezchristineSep 9, 2025
      If the laser position shifts over time, it could be due to: * The pipe sinking. Confirm the pipe grade setting using a level. * The target not being securely held. Secure the target within its holder.

Summary

Precautions for Safe Operation

General Safety Warnings

Warns about operating environment, disassembly, weather, and high voltage.

Power Supply and Battery Warnings

Tripod Handling Precautions

General Precautions

Measurement and Maintenance Guidelines

Operational and Environmental Precautions

Laser Safety Information

Laser Classification and Warning Labels

Laser Beam Exposure Warnings

Warns against improper use, pointing at people, and direct eye exposure.

User Training and Protective Measures

Product Outline

Instrument Parts and Functions

Control Panel and Key Functions

Using the Battery

Rechargeable Battery Charging

Charging with External DC Power

Basic Operation

Instrument Setup and Leveling

Grade Setting Procedures

Step-by-step guides for setting grade values via direct entry or laser movement.

Automatic Alignment with Target

Explains the process of automatically aligning the instrument to a target.

Changing Operating Parameters

Overview of Changeable Parameters

Setting Up and Managing Security Code

Explains how to activate, set, and manage the security code.

Checks and Adjustments

Laser Calibration Checking Procedure

Laser Calibration Adjustment Process

Details the procedure to adjust the laser calibration if needed.

Upper;Lower Laser Alignment Check

Error Displays

Common Error Codes and Solutions

Lists common error codes and their corresponding countermeasures.

Troubleshooting

Troubleshooting Laser Beam Issues

Addresses problems with laser beam emission, blinking, and stability.

Troubleshooting Setting and Control Issues

Covers issues with grade/line setting, remote control, and grade value mismatches.

Specifications

TP-L5 Instrument Specifications

Details specifications like light source, wavelength, power output, and accuracy.

Laser and Power Specifications

Provides specifications for upper/lower lasers and battery working duration.
