6. BASIC OPERATION
36
Use the laser right/left key on the instrument display panel or the RC-200 remote control to move
the horizontal laser position to the left or right required.
The maximum adjusting range is 9 m (29.5 ft.) at a distance of 30 m (100ft.)
The speed of the line travel is variable. When the key is first pressed, the speed will be slow.
By pressing the key continuously, the speed of line travel will increase.

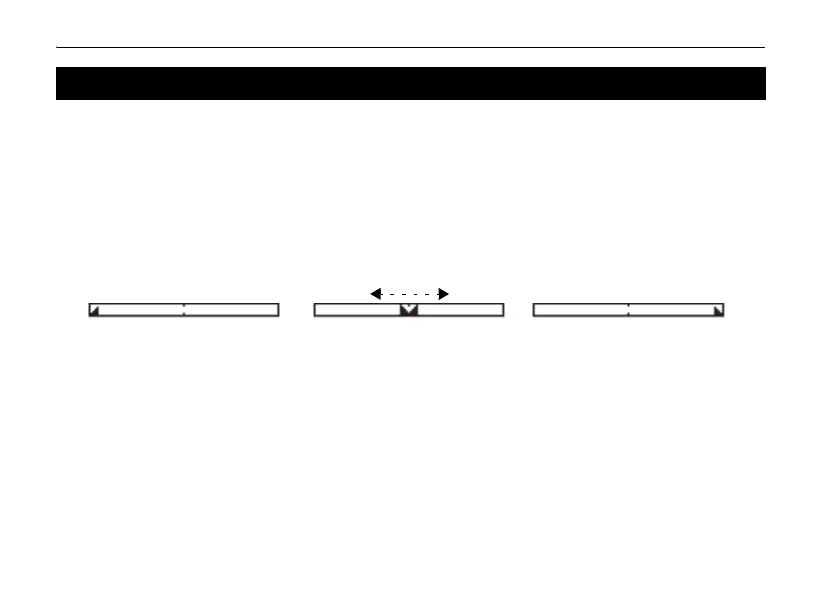

The relative position of the laser beam is shown on the display as indicated below.

• Setting Laser Line is not possible when the instrument is locked.
6.3 Setting Laser Line
This display indicates that the laser
line is positioned at the right end of the
adjustment range. The laser line will
not travel to the right even if the laser
right/left key is held down. In addition,
the laser will blink to alert the user of
this condition. It is always a good idea
to pre-position the laser to the center
of its adjusting range prior to setup.
This display indicates that the laser
line is positioned at the left end of the
adjustment range. The laser line will
not travel to the left even if the laser
right/left key is held down. In addition,
the laser will blink to alert the user of
this condition. It is always a good idea
to pre-position the laser to the center
of its adjusting range prior to setup.
LASER LINE INDICATOR
