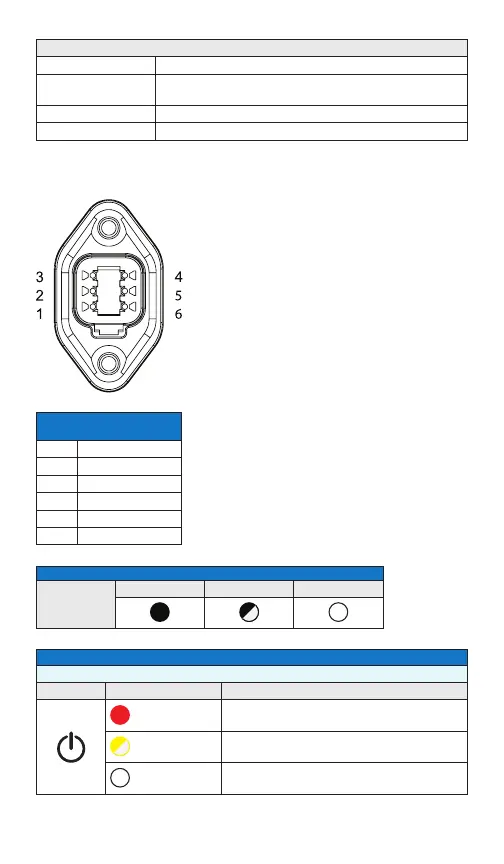

Topcon UR-1 - Connector Pinouts; Physical; LED Status Key

Physical
Housing Aluminium
Housing
Dimensions 176 mm x 104 mm x 42 mm (6.8 in x 4.1 in x 1.65 in)
Connectors Deutsch DT04-6P-CL09 TNC, Female
Weight 550 gm (1.2 lb)
Connector Pinouts
Conn A - 6-pin Deutsch
DT04-6P-CL09
1 Power
2 -
3 -
4 TX D
5 RX D
6 Ground
LED Status Key
LED Pattern
Solid - Lit Blinking O󰀨 - No Light
LED Status
Power LED
Icon Color Status
Solid Red UR-1 is powered On
Blinking Yellow UR-1 Bootloader running
No Light UR-1 is powered O󰀨
