SLIP JOINT CLAMP FITS ø25.4~ø31.2 mm and ø30.8~34.9 mm
WARRANTY
Topeak products are available only from professional bicycle shops.
Please contact your nearest Topeak authorized bicycle dealer for any questions. For customers in the USA, call: 1-800-250-3068, Website: www.topeak.com
2-year Warranty: All mechanical components against manufacturer defects only.
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture.
All warranties will be void if the product is damaged due to user crash, abuse, system alteration, modification, or used in any way not intended as described in this operating
manual.
* The specifications and design are subject to change without notice.
Copyright © Topeak, Inc. 2009

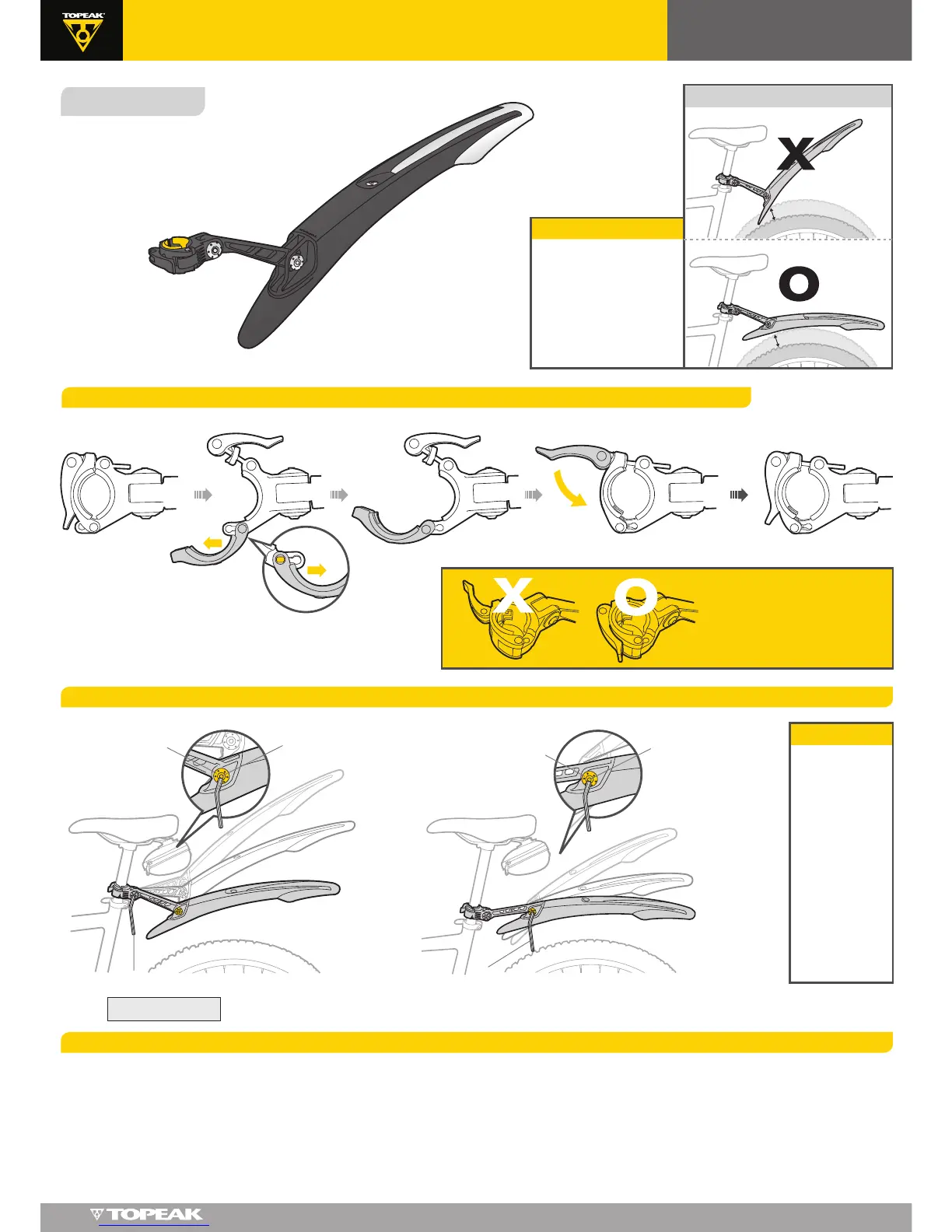

ANGLE ADJUSTMENT
Recommended Torque:
2-4 N.m (17~35 in. lbs.)
4mm
Allen key
4mm
Allen key
Toothed Nut
Angle Adjusting Bolt
Toothed Nut
Angle Adjusting Bolt
ø25,4~ø31,2 mm
ø30,8~34,9 mm
Always keep the quick release
lever in the proper closed
position when DeFender M2
is mounted on bike.
Adjust the angle of
DeFender M2 by
loosening the angle
adjusting bolts and
retightening the
bolts once the
correct angle is
achieved. Do not
loosen the angle
adjusting bolt more
than 6
counterclockwise
rotations or the
toothed nut
assembly will be
disassembled and
may be damaged.
WARNING
DeFender M2
Tool required: 4 mm Allen key
W
h
e
e
l
T
r
a
v
e
l
W
h
e
e
l
T
r
a
v
e
l
WARNING
When adjusting the angle of
DeFender M2, make sure the
space between DeFender M2
and the tire is larger than wheel
travel of the bike. Incorrect
angle may cause damage to
DeFender M2, your bike, or
potentially cause bodily harm.
For Rear Suspension Bike
Prepare to Ride
User's Guide
DeFender M1 / M2
