Push-to-Open Installation — Gate in Closed position (Moving-Rod is retracted)

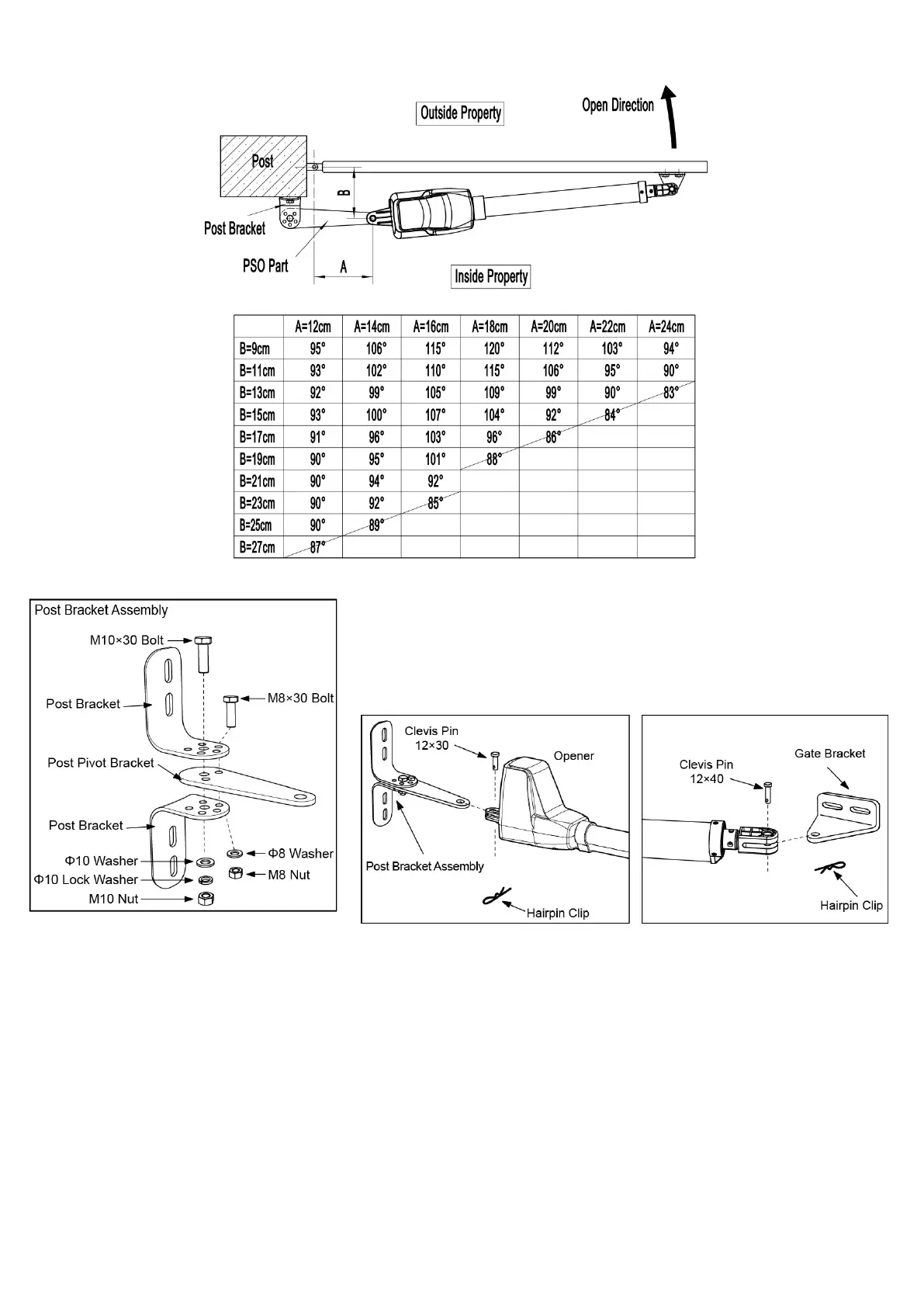

1. Insert the M10 x 30 bolt through the center hole of the post bracket
and post pivot bracket as shown. Place a ￠10 washer , ￠10 lock
washer and M10 nut on the bottom of the bolt and hand tighten.
2. Attach the gate bracket and post bracket assembly to the opener by
inserting a clevis pin. Secure the clevis pins using the hairpin clips.
3. Open the release hole plug on the top of the gate opener, insert the release key, and turn the key 90°
clockwise. This releases the motor and allows the push-pull rod to be manually extended and retracted. To
restore normal operation, turn the key 90° counterclockwise.
4. With the opener fully retracted and with the gate in the fully open position (for Pull-to-Open
installation) or fully closed position (for Push-to-Open installation), place the gate opener with the Post
Bracket Assembly and Gate Bracket on the gate post and the gate. Position the Post Bracket Assembly and
Gate Bracket so that the gate opener is level. While holding the gate opener in the level position, temporarily
secure it with two C-clamps.
