Topfield SBP-2000 - Rear Panel Connections

10 Setup
Table 2.2: Physical specifications
Size 260× 46× 190 mm
Weight 1.2 kg
Operating temperature 0 to 45
◦
C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections

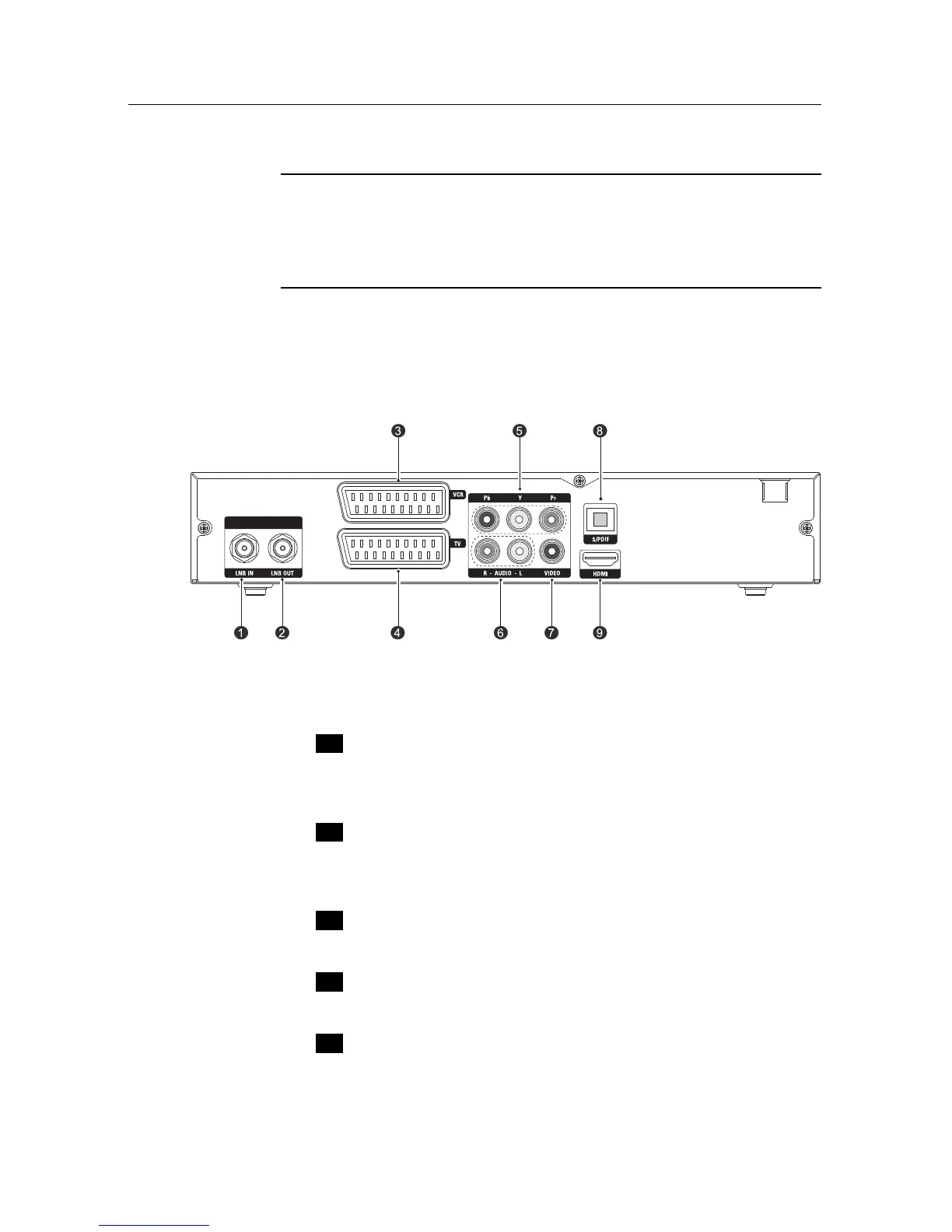

The SBP-2000 has the following connections on the back:
Check what connections your television set has in comparison
with the digital receiver.
.
.
.
1
LNB IN Satellite broadcasting signal input socket
(Current: Max.500mA with overload pro-
tection)
.
.
.
2
LNB OUT Satellite broadcasting signal output socket
through the LNB IN socket for another dig-
ital receiver
.
.
.
3
VCR Audio and video input/output socket for
another device such as a video recorder
.
.
.
4
TV Audio and video output socket for the tele-
vision set
.
.
.
5
Y/Pb/Pr Component video output socket for the tele-
vision set (green/blue/red)
