3. INSTALLATION OF THE EQUIPMENT
a. Mounting the Actuator to Valve Assembly
Inline position

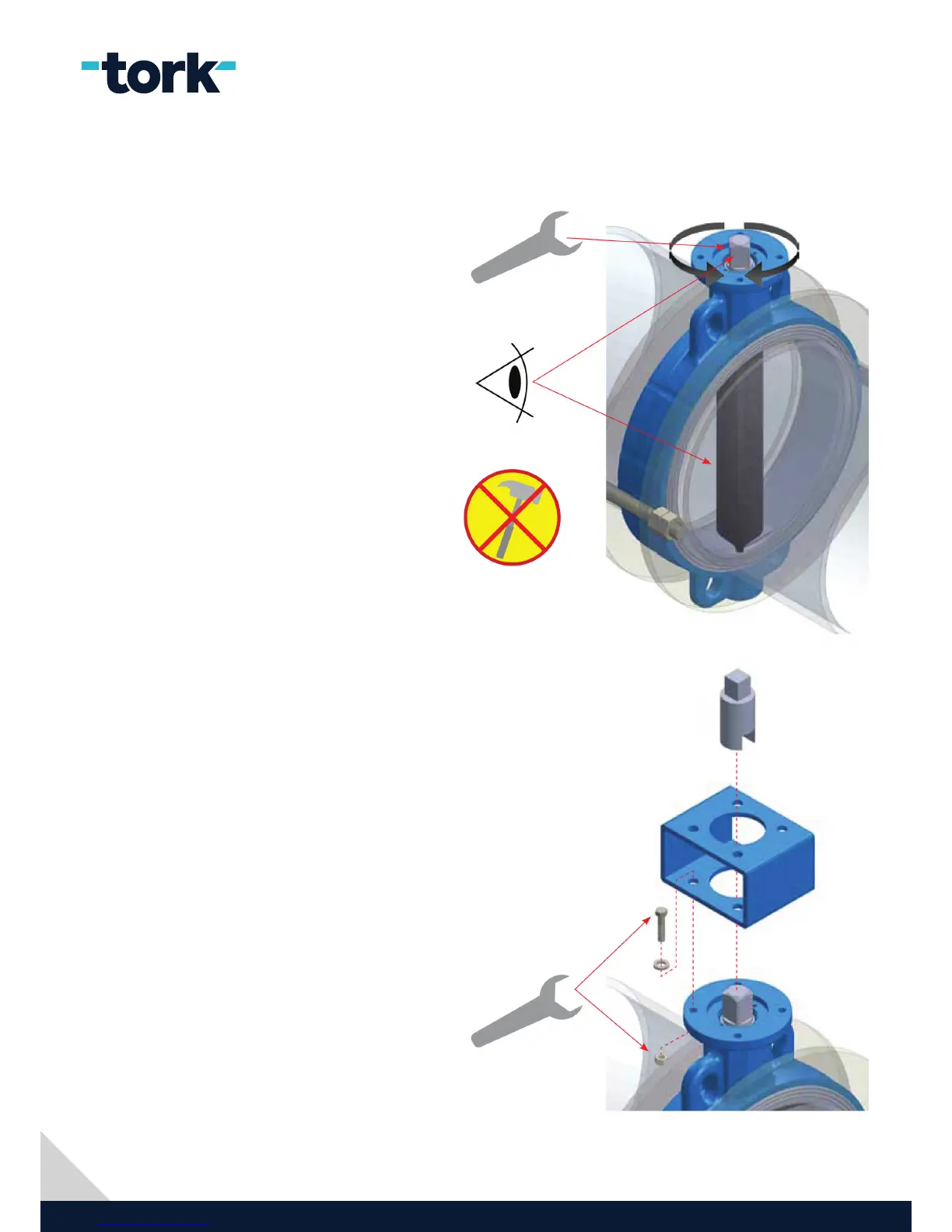

I. Adjust the valve to closed position by usinga wrench.
II. Do not use hammer for adjusting the valve shaft.
III. Mount the bracket on valve by using
screws and nuts like in the picture. Place the
extension on valve piniondirectly.
